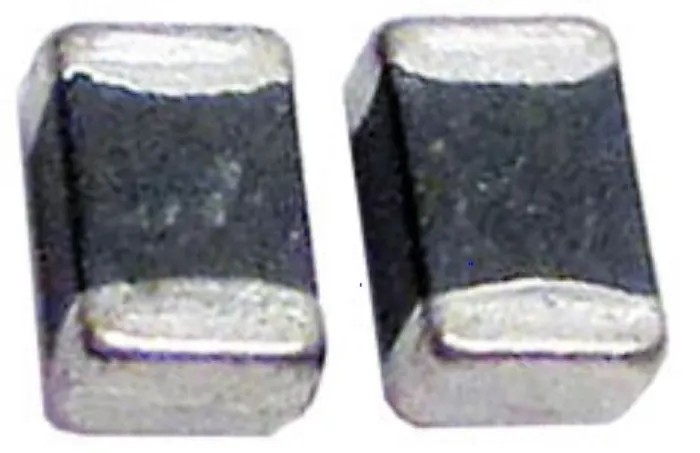

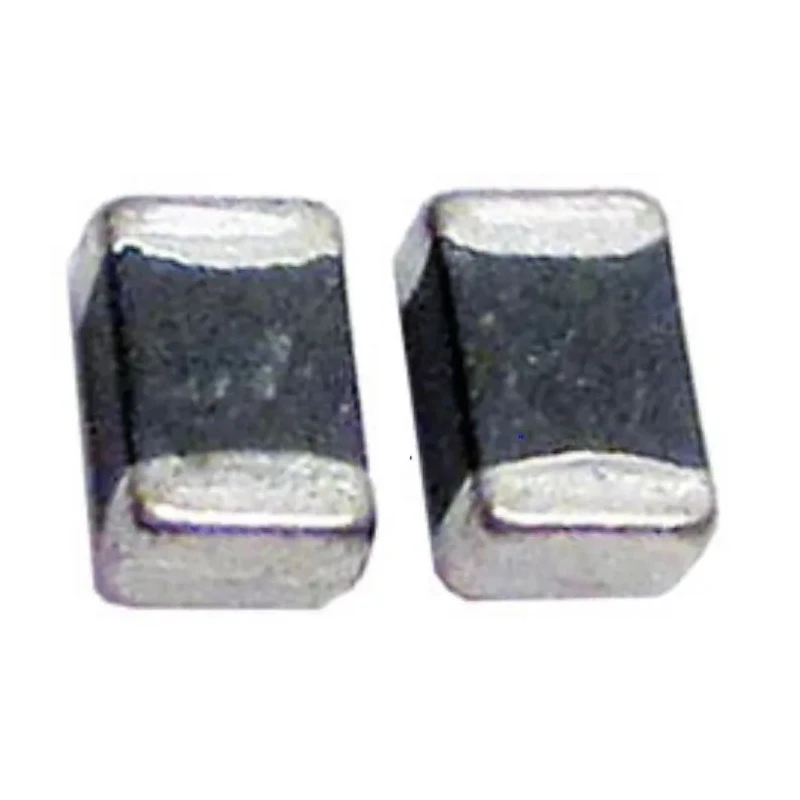

Abracon Multilayer Ferrite Bead 0.85 mm Surface Mount CHIP Bead 1A Current Rating 80Ω Impedance ACML-0805-800-T

Name: Abracon Multilayer Ferrite Bead 0.85 mm Surface Mount CHIP Bead 1A Current Rating 80Ω Impedance ACML-0805-800-T
Brand: Abracon
SKU: 414234
Price: 0.04 USD
Availability: InStock



Category Ferrite Bead Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Material	Ferrite
Height	0.85mm
Length	2mm
Model	ACML-0805-800-T
Depth	1.25mm
Packaging	Tape & Reel
Mount Type	Surface
Current Rating	1A
Series	ACML-0805
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS/RoHS II
Maximum DC Resistance	0.1Ω
Impedance at 25 MHz	80Ω

Key Features

Features a compact 0805 package size suitable for high-density surface mount applications.
Rated for 1 Ampere current carrying capacity ensuring reliable performance.
Constructed with ferrite material for effective EMI noise attenuation.
Operates within temperature range from -55°C to 125°C, suitable for varied environments.
Offers low DC resistance of 0.1 Ω minimizing power loss.
RoHS and RoHS II compliant ensuring eco-friendly manufacturing standards.
Nickel barrier terminations provide excellent solder heat resistance for robust PCB mounting.
Ideal for applications in video equipment, audio devices, automotive electronics, and communication systems.

Product Description

Abracon ACML-0805-800-T is a multilayer ferrite chip bead designed for surface mounting with dimensions 2 mm length, 0.85 mm height, and 1.25 mm depth. Providing 80 Ω impedance at 25 MHz, it effectively suppresses electromagnetic interference in sensitive electronic equipment.

This chip bead supports a maximum current rating of 1 Ampere and has a low maximum DC resistance of 0.1 Ω. Its operating temperature range from -55°C to 125°C makes it suitable for use in demanding environments including automotive electrical systems.

The ferrite construction and nickel barrier terminations guarantee high reliability and excellent solder heat resistance, compatible with flow and reflow soldering processes. The device complies with RoHS and RoHS II standards, confirming adherence to environmental regulations.

Applications for this Ferrite Bead include video and audio equipment, automotive electronics, and communication devices where EMI filtering is critical. The 0805 tape and reel packaging ensures efficient automated PCB assembly.

Compact 0805 size for space-saving PCB layouts. Effective EMI suppression at 25 MHz with 80 Ω impedance. Reliable operation across wide temperature extremes. Nickel barrier terminations for soldering durability. Lead-free and RoHS compliant for environmental safety.

Suitable for automotive and communication equipment applications. Low DC resistance reduces power loss during operation. Tape and reel packaging supports high-volume manufacturing. Explore the extensive range of Abracon electronic components at EnvMart for professional and industrial use.
