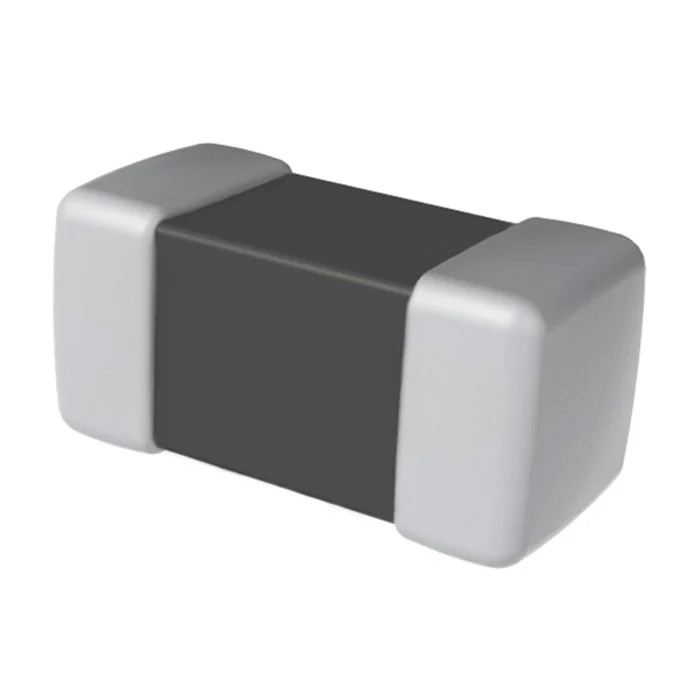

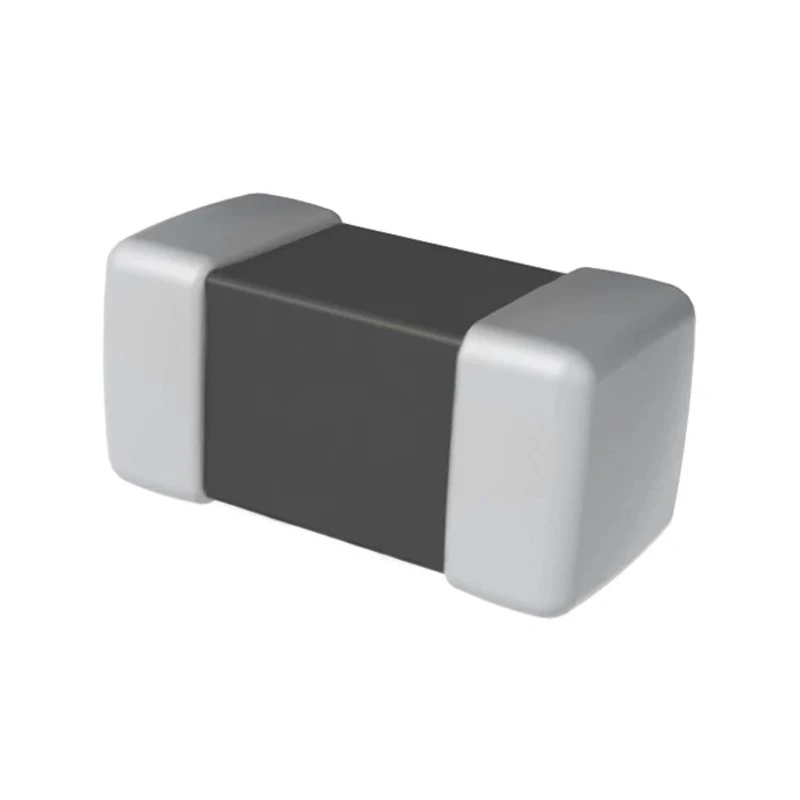

KEMET Ferrite Bead 0.031 mm Tape & Reel Chip Bead, 58.7 Ω Impedance at 25 MHz, 150 Ω at 100 MHz, 220.8 Ω Z0603C151BPWZT

KEMET Z0603C151BPWZT ferrite bead tape & reel chip bead offers specialized high impedance values crucial for suppressing electromagnetic interference (EMI) in electronic circuits. This component is tailored to meet the demands of digital mobile equipment requiring low power consumption while providing effective noise reduction on power lines.

The ferrite bead features a compact chip size with dimensions of 0.031 mm in height and depth and 0.063 mm length, enabling seamless integration in miniature electronic assemblies. Its impedance characteristics span from 58.7 Ω at 25 MHz to 270 Ω at 1 GHz, providing a broad frequency range noise attenuation essential for high-frequency digital signal correction.

With a current rating of 1A and a maximum operating temperature of 125°C, this chip bead maintains high reliability and resistance to elevated energy conditions. The ferrite material construction ensures low DC resistance of 0.45 Ω, reducing power dissipation while enhancing circuit performance.

Supplied on tape and reel packaging, the product supports automated manufacturing processes, improving production efficiency. The Z-PWZ series has been designed with a wire-wound structure, resulting in low stray capacitance and high withstand current suited for industrial, commercial, and consumer electronic applications.

This ferrite bead fully complies with RoHS and REACH regulations, assuring environmental safety and adherence to global standards. Features 58.7 Ω impedance at 25 MHz for effective noise suppression. Provides 150 Ω impedance at 100 MHz and 220.8 Ω at 300 MHz for broad frequency attenuation.

Chip size of 0.031 mm height and depth with 0.063 mm length for compact PCB integration. Supports a current rating of 1A suitable for various digital mobile and low power devices. Operates in a temperature range from −40°C to +125°C ensuring reliable performance.

Constructed from ferrite material with low DC resistance of 0.45 Ω for minimal power loss. Supplied in tape and reel packaging facilitating efficient automated assembly. Complies with RoHS and REACH environmental standards for safety and sustainability.

Part of the Z-PWZ series optimized for waveform correction and EMI filtering. Manufactured in the Philippines ensuring consistent quality and traceability.

This ferrite bead is ideal for industrial electronics, manufacturing equipment, telecommunications, automotive electronics, and consumer electronic device applications where EMI suppression and signal integrity are critical. It supports efficient power line noise filtering to enhance circuit reliability and performance.
