| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Material | Ferrite |
| Height | 0.85mm |
| Length | 2mm |
| Model | ACML-0805-500-T |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Current Rating | 1A |
| Series | ACML-0805 |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS/RoHS II |
| Maximum DC Resistance | 0.05Ω |
| Impedance at 25 MHz | 50Ω |

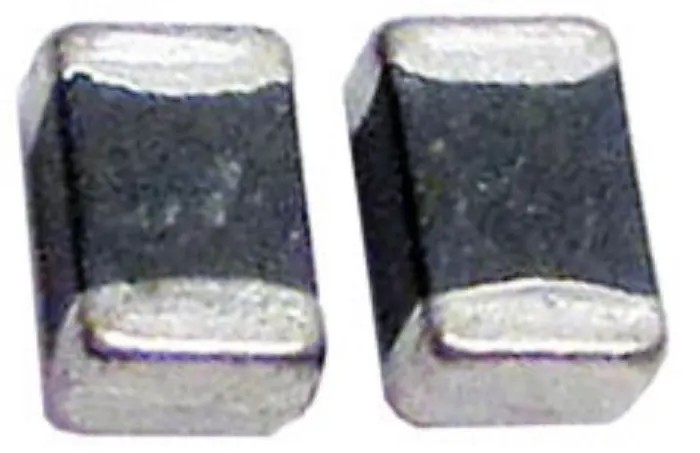

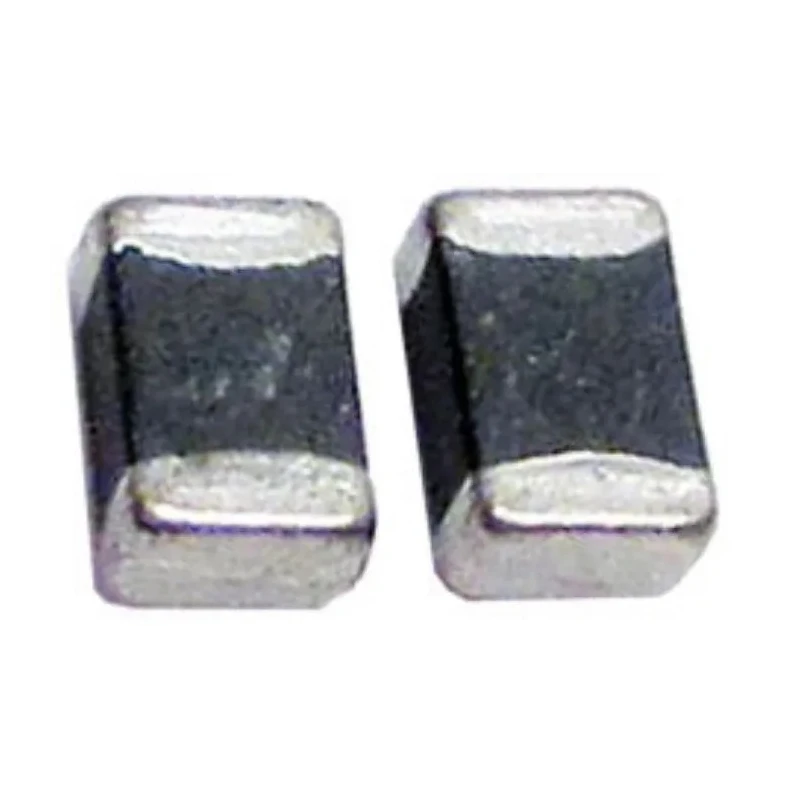

The Abracon ACML-0805-500-T ferrite bead is designed for effective EMI noise suppression in a wide range of industrial and commercial electronic equipment, including audio, video, automotive electrical, and communication devices. This 0.85 mm height surface mount chip bead conforms to the 0805 package standard, enabling reliable surface-mount technology assembly.
Featuring multilayer monolithic construction and nickel barrier terminations, it provides excellent solder heat resistance and durability during reflow soldering processes. The bead boasts a 50 Ω impedance at 25 MHz, ensuring efficient filtering of high-frequency noise, and supports a current rating of 1A with a maximum DC resistance of just 0.05 Ω, minimizing power losses.
Its operational temperature varies from -55°C to 125°C, making it suitable for demanding automotive and communication environments. Fully compliant with RoHS and RoHS II directives, this ferrite bead meets stringent environmental safety requirements.
Packaged on tape and reel, it facilitates automated pick-and-place assembly in manufacturing lines, improving efficiency and throughput. Nickel barrier terminations for outstanding solder heat resistance. Multilayer monolithic ferrite core ensures high reliability under harsh conditions.
Compact 0805 surface mount package with 0.85 mm height. 50 Ω impedance at 25 MHz for effective EMI suppression. Rated current of 1A and max DC resistance of 0.05 Ω. Operating temperature from -55°C up to 125°C. Lead free and RoHS/RoHS II compliant.
Ideal for applications in automotive, audio, video, and communication equipment. Tape and reel packaging suitable for SMT assembly.
This Abracon Ferrite Bead offers a reliable solution for enhancing electromagnetic compatibility in industrial, laboratory, automotive, and commercial electronic systems. For more products in EMI suppression and passive components, browse our electronics components category on EnvMart.
