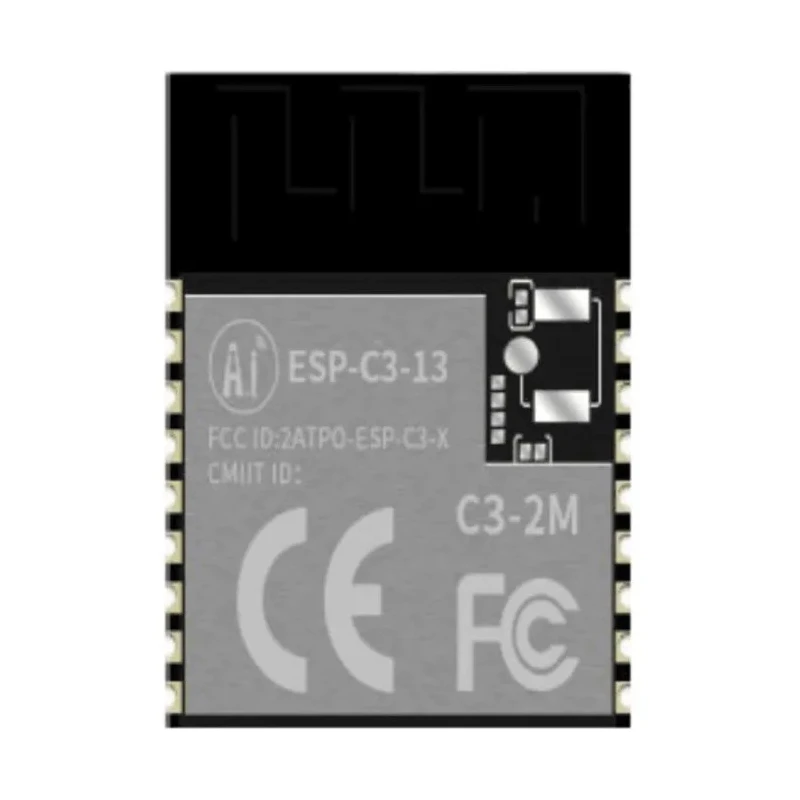

RF Solutions 3V WiFi Module with ESP32-C3-13 Core Processor, 2.4GHz, 150Mbps Data Rate ESP32-C3-13

RF Solutions ESP32-C3-13 WiFi Module features a 32-bit RISC-V single-core processor clocked up to 160 MHz embedded in a 3V wireless module designed for robust IoT, smart home, and wearable device applications. Operating at a frequency of 2.4GHz, this module supports Wi-Fi 802.11b/g/n with a data rate up to 150Mbps in 1T1R mode and BLE5.0 for combined wireless functionalities.

The module integrates ADC, GPIO, I2C, SPI, UART, PWM, and I2S interfaces along with temperature sensor and pulse counter, facilitating versatile connectivity and sensor interfacing for embedded systems. Its small footprint of 20mm length, 18mm width, and a height of 3mm makes it suitable for compact electronics.

Power management is optimized with multiple sleep modes, including deep sleep with current consumption below 5uA, supporting battery-operated and energy-efficient designs. It operates within a temperature range from -40°C to 85°C to withstand industrial and field conditions.

Networking options include STA, AP, and mixed STA+AP modes, with simple configuration solutions such as Smart Config and AirKiss for iOS and Android, enabling quick deployment in consumer electronics and industrial IoT devices. Firmware can be upgraded locally or remotely via UART (FOTA), supporting long-term device maintenance.

Output power reaches 18dBm ensuring reliable wireless communication, while the module supports common security standards WEP and AES to protect data. It is supplied as a surface-mounted device (SMD-18 package) and comes with built-in 4MByte flash memory.

Operates at 2.4GHz frequency supporting Wi-Fi 802.11b/g/n standards. Supports BLE 5.0 with multiple data rates for versatile connectivity. High data rate of 150Mbps with integrated Wi-Fi MAC, BB, RF, PA, LNA, and BLE components.

Multiple interface support ADC, GPIO, I2C, SPI, UART, PWM, and I2S. Extensive sleep modes including deep sleep with under 5uA current draw. Compact dimensions: 20mm(L) x 18mm(W) x 3mm(H). Wide temperature operation range from -40°C to 85°C for industrial environments.

Supports secure wireless communication with WEP and AES security standards. Enables easy OTA firmware updates via UART port. Designed for IoT, smart home, wearable electronics, and mobile device applications. Country of origin: China.

This advanced WiFi module is ideal for industrial automation, laboratory instruments, smart building controls, and agricultural monitoring systems among others. Environmentally sealed to industrial-grade standards, it facilitates seamless wireless integration across embedded systems. Explore the Wi-Fi Modules category at EnvMart for compatible devices and accessories.
