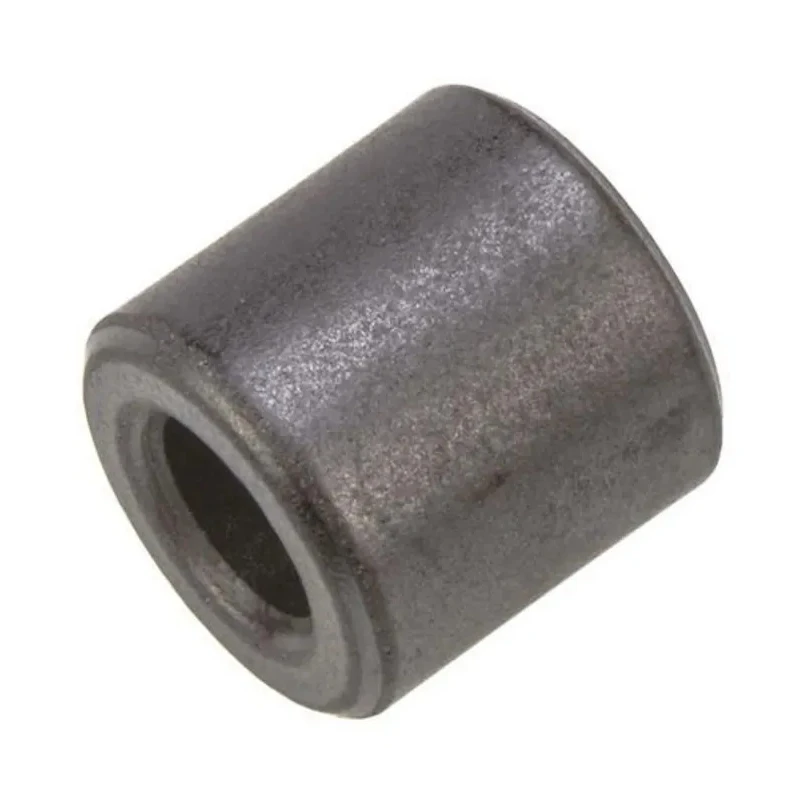

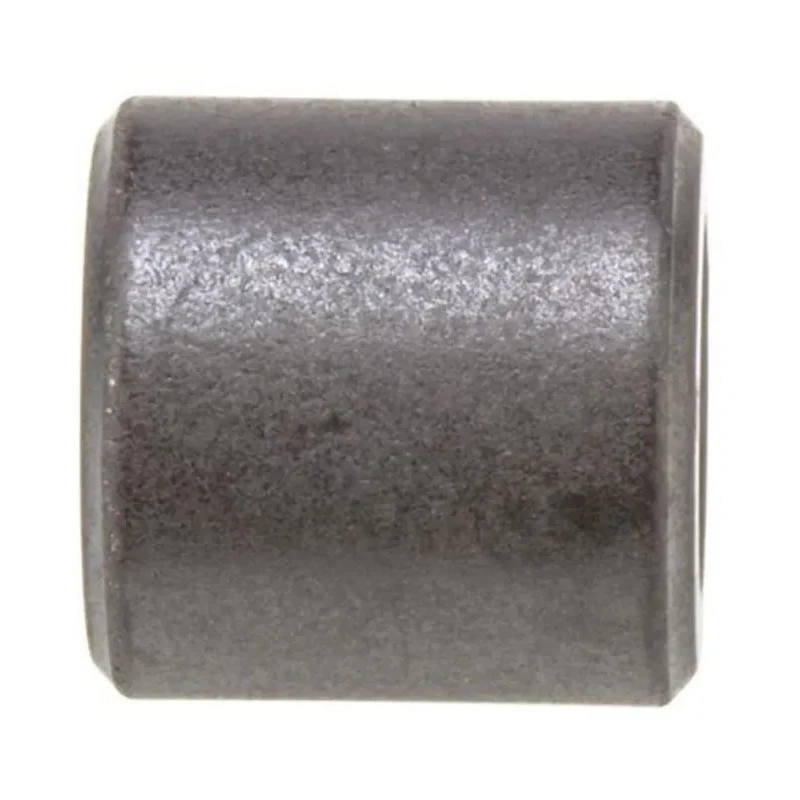

Wurth Elektronik Ferrite Ring EMI Suppression Axial Ferrite Bead 9.5 mm Outside Diameter, 4.75 mm Inside Diameter 74270033
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Material | 3 W 800 (Ferrite) |
| Height | 9.5mm |
| Model | 74270033 |
| Series | WE-AFB |
| Outside diameter | 9.5mm |
| Sub Type | EMI Suppression Axial Ferrite Bead |
| Inside Diameter | 4.75mm |
| Standards/Approvals | RoHS, REACH |
| Maximum Frequency | 100MHz |
| Minimum Frequency | 25MHz |
| Wurth Elektronik Ferrite Ring EMI Suppression Axial Ferrite Bead 9.5 mm, For | Wrapping Cable, Coaxial Cable |
Key Features
- Operates primarily in the 25 MHz to 100 MHz frequency range to suppress mid-band interference.
- Manufactured from high-quality 3W800 ferrite material for optimized impedance rise.
- Axial configuration allows easy in-line installation onto cables.
- Compatible with coaxial cables, multiconductor wires, and cable bundles.
- Designed to reduce common-mode noise on wrapped and coaxial conductors.
- Complies with RoHS and REACH standards ensuring environmentally safe components.
- Outside diameter of 9.5 mm with an inside diameter of 4.75 mm for precise cable fitting.
- Applicable in industrial, telecommunications, and electronic signal integrity protection uses.
Product Description
Wurth Elektronik 74270033 Ferrite Ring EMI Suppression Axial Ferrite Bead features a 9.5 mm outside diameter and a 4.75 mm inside diameter, crafted from 3W800 ferrite material to provide targeted impedance for electromagnetic interference suppression. This axial ferrite bead is engineered to attenuate common-mode noise effectively within the 25 MHz to 100 MHz frequency band, commonly affecting wrapped cables, coaxial cables, and multiconductor wiring harnesses.
The product’s axial configuration enables easy installation inline on cables, making it suitable for various industrial applications including telecommunications, electronic device manufacturing, and signal integrity assurance. The ferrite ring aids in maintaining signal quality by reducing EMI emissions and minimizing interference in cable assemblies.
Conforming to RoHS and REACH environmental regulations, this ferrite bead supports use in eco-conscious product designs. Its robust construction and precise dimensions ensure compatibility with a wide range of cable jackets and coaxial cores.
Frequency range from 25 MHz to 100 MHz targets mid-frequency electromagnetic disturbances. 3W800 ferrite material promotes increased reactance for effective noise suppression. Axial design facilitates simple and reliable installation inline with cables and wire bundles.
Supports EMI reduction in multiconductor wire arrangements and coaxial applications. RoHS and REACH compliant for environmental safety and regulatory adherence. Precisely sized to fit cables with a 4.75 mm inside diameter and 9.5 mm outside diameter.
Manufactured in Taiwan, Province Of China ensuring quality and consistency.
This Ferrite Bead is essential for industrial, telecommunications, and electronics sectors aiming to improve electromagnetic compatibility and reduce signal distortion. It provides an efficient and reliable solution for EMI suppression on coaxial cables, wrapped cables, and multiconductor wire bundles, enhancing overall system performance.
Explore more Ferrite Rings and EMI suppression components to support your electrical and electronic project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ferrite bead operates within a frequency range of 25 MHz to 100 MHz, effectively suppressing mid-band electromagnetic interference.
The ferrite ring has an outside diameter of 9.5 mm and an inside diameter of 4.75 mm, ensuring a precise fit for various cable types.
It is manufactured from 3W800 ferrite material, which is optimized for impedance rise to enhance EMI suppression capabilities.
The axial configuration of this ferrite bead allows for easy in-line installation onto cables, making it suitable for various applications.
It is compatible with coaxial cables, multiconductor wires, and cable bundles, making it versatile for different wiring setups.
This model is applicable in industrial, telecommunications, and electronic signal integrity protection uses, helping to reduce common-mode noise.
It complies with RoHS and REACH standards, ensuring that it is environmentally safe and adheres to regulatory requirements.
The primary purpose of this ferrite bead is to reduce common-mode noise on wrapped and coaxial conductors, improving signal quality.
This ferrite bead is manufactured in Taiwan, Province Of China, ensuring quality and consistency in production.
This model belongs to the WE-AFB series, which is specifically designed for EMI suppression applications.
The maximum frequency that this ferrite bead can handle is 100 MHz, making it suitable for a range of electronic applications.
The minimum frequency for effective operation of this ferrite bead is 25 MHz, targeting mid-frequency electromagnetic disturbances.
