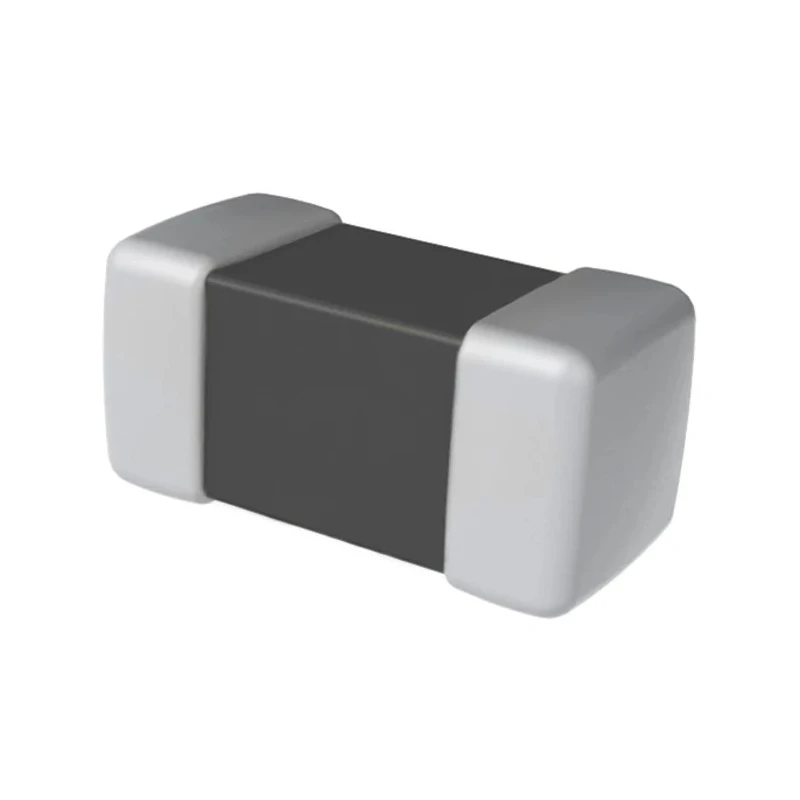

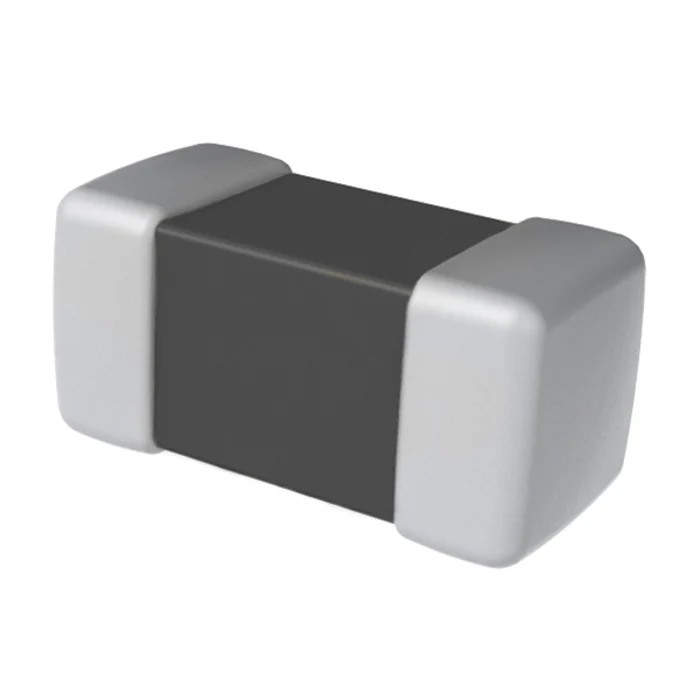

KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead 56.1 Ω Impedance at 25 MHz, 72 Ω at 100 MHz, 78.3 Ω Z1806C720APWST

Name: KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead 56.1 Ω Impedance at 25 MHz, 72 Ω at 100 MHz, 78.3 Ω Z1806C720APWST
Brand: KEMET
SKU: 412747
Price: 0.28 USD
Availability: InStock



Category Ferrite Bead Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.063mm
Length	0.177mm
Model	Z1806C720APWST
Depth	0.063mm
Packaging	Tape & Reel
Current Rating	6A
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	72Ω
Impedance at 25 MHz	56.1Ω
Impedance at 300 MHz	78.3Ω
Impedance at 50 MHz	65Ω
Impedance at 1 GHz	78.9Ω

Key Features

The ferrite bead measures 0.063 mm in height and depth, with a length of 0.177 mm.
It offers an impedance of 56.1 Ω at 25 MHz, rising to 72 Ω at 100 MHz, and 78.3 Ω at 300 MHz.
The maximum DC resistance of 0.45 Ω allows efficient current flow with minimal loss.
Rated for a continuous current capacity of 6 A, suitable for high current circuits.
Operating temperature range extends from -40°C to 125°C, ensuring robustness in harsh environments.
Constructed from high quality ferrite material with a low stray capacitance wire wound structure.
RoHS and REACH compliant, suitable for environmentally conscious applications.
Chip bead form factor in tape and reel packaging facilitates automated assembly processes.

Product Description

KEMET Z1806C720APWST ferrite bead is a high impedance chip bead designed to suppress radiated noise on power lines, ideal for use in electronic circuit designs requiring large current handling and noise reduction. With a small form factor of 0.063 mm height and depth and 0.177 mm length, it is packaged as tape and reel for efficient automated insertion.

This chip bead offers impedance values of 56.1 Ω at 25 MHz, 65 Ω at 50 MHz, 72 Ω at 100 MHz, 78.3 Ω at 300 MHz, and 78.9 Ω at 1 GHz, providing effective high frequency noise suppression across a broad spectrum. The maximum DC resistance is low at 0.45 Ω, supporting high current flow up to 6 A without significant voltage drop or heating issues.

The operating temperature ranges from -40°C to 125°C, making it well-suited for industrial, commercial, and automotive electronics applications requiring reliability under thermal stress. Made from ferrite material with a wire wound structure, the bead features low stray capacitance and excellent resistance to high energy and large currents.

This product complies with RoHS and REACH environmental standards and is part of the Z-PWZ series, optimized for signal waveform correction in various digital mobile equipment that prioritizes low power consumption.

Its tape and reel packaging format supports streamlined assembly lines, lowering production time and improving manufacturing efficiency. The ferrite bead measures 0.063 mm in height and depth, with a length of 0.177 mm. Impedance specification ranges from 56.1 Ω at 25 MHz to 78.9 Ω at 1 GHz.

Maximum DC resistance is 0.45 Ω, allowing efficient current conduction. Rated continuous current capacity is 6 A for robust power line noise suppression. Operating temperature span is -40°C to 125°C for versatile environmental conditions.

Constructed from ferrite material with a wire wound structure to minimize stray capacitance. Compliant with RoHS and REACH standards for environmental safety. Suitable for industrial, automotive, and commercial electronics, particularly in noise-sensitive applications.
