KEMET Film Capacitor 1.2 nF 2 kV DC 700 V AC ±5 % Through Hole Mount R76UI112050H3J

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor 1.2 nF 2 kV DC 700 V AC ±5 % Through Hole Mount R76UI112050H3J

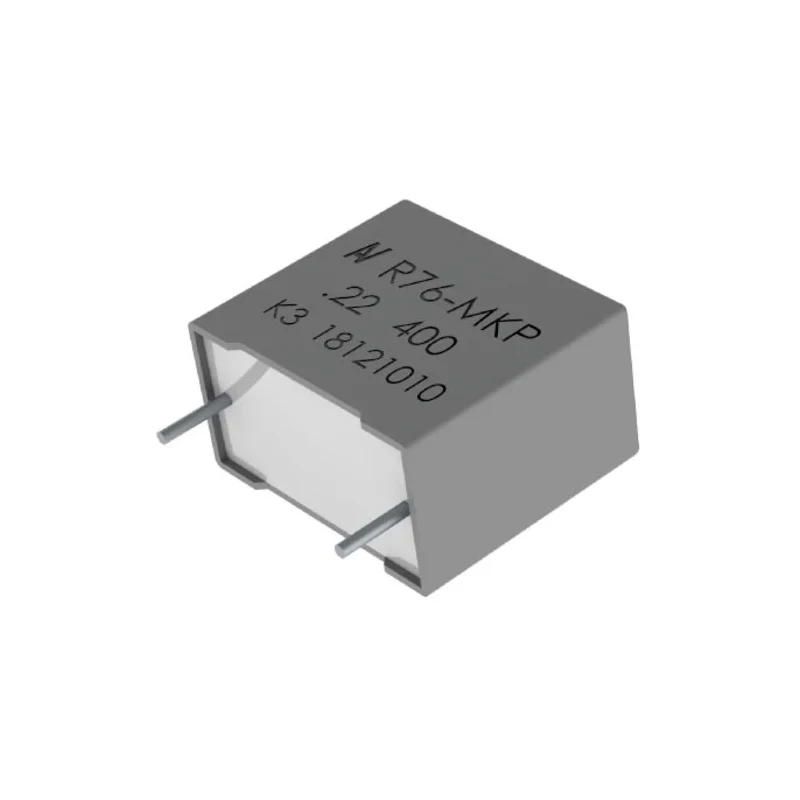

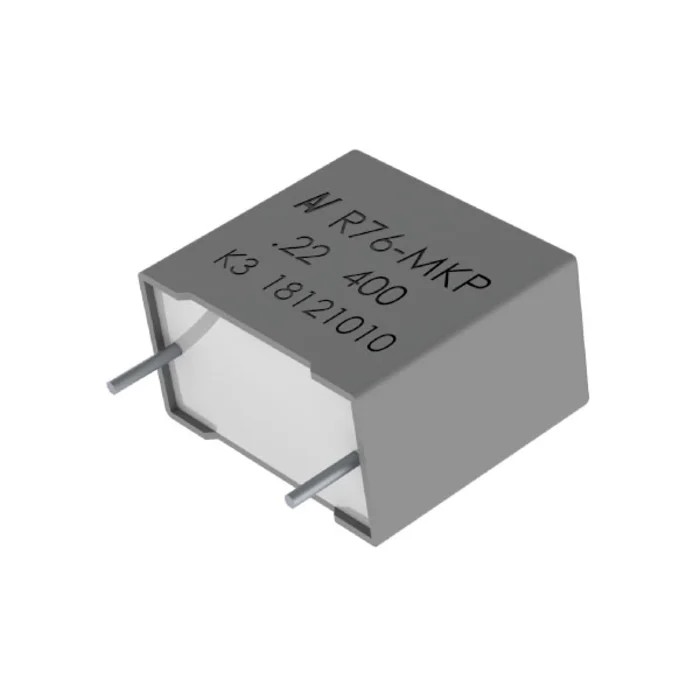

Name: KEMET Film Capacitor 1.2 nF 2 kV DC 700 V AC ±5 % Through Hole Mount R76UI112050H3J
Brand: KEMET
SKU: 421682
Price: 0.32 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	China
Capacitance Range	100 pF - 15 μF
Brand	KEMET
Height	11mm
Length	18mm
Model	R76UI112050H3J
Packaging	Bag
Width	5mm
Mount Type	Through Hole
Series	R76_125C
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	1.2nF
Minimum Operating Temperature	-55°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	25mm
Standards/Approvals	RoHS, IEC 60286-2
Pin Count	2
Rated AC Voltage	700V ac
Rated DC Voltage	2kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200
Capacitance tolerance	±2.5%, ±5%, ±10%
Lead Spacing	10 mm - 37.5 mm
Equivalent Series Resistance ESR	531mΩ

Key Features

Constructed with polypropylene film and double metallized polyester film electrodes ensuring high reliability.
Rated for high frequency and high current applications with an operating temperature range of -55°C to 125°C.
Features a radial lead design with 15 mm lead pitch and 25 mm lead length for secure solder mounting.
Encapsulated in self-extinguishing solvent resistant plastic for enhanced durability and safety.
Complies with RoHS and IEC 60286-2 standards, with automotive standard AEC-Q200 certification.
Designed for use in resonant circuits, snubber and silicon-controlled rectifier (SCR), IGBT, and MOSFET commutation circuits.

Product Description

KEMET R76UI112050H3J Film Capacitor is a high-quality passive electronic component with 1.2 nF capacitance and ±5 % tolerance. It features a rated DC voltage of 2 kV and AC voltage of 700 V, suitable for medium to high voltage applications. This through-hole mounted capacitor utilizes polypropylene film combined with double metallized polyester film electrodes for dependable electrical performance and long operational life.

The component is constructed with radial leads electrically welded to the metal layers, encapsulated within a self-extinguishing, solvent-resistant thermosetting plastic case ensuring safety and durability in demanding environments. It is rated for operation from -55°C up to 125°C, supporting harsh ambient conditions.

This capacitor series includes features such as a 15 mm lead pitch, 25 mm lead length, and 0.8 mm lead diameter for ease of solder mounting, complying with IEC 60286-2, RoHS standards, and automotive standard AEC-Q200, making it compatible with automotive and industrial applications.

Its applications include use in resonant circuits, high-frequency high-current operations, snubber circuits, and various controlled rectifier and transistor-based switching circuits like SCR, IGBT, and MOSFET commutation.

Constructed with polypropylene film and double metallized polyester film electrodes for superior electrical characteristics. Encapsulated in self-extinguishing thermosetting plastic for enhanced safety. Meets international standards including RoHS, IEC 60286-2, and AEC-Q200 automotive certification.

Wide temperature operating range from -55°C to 125°C for harsh environment suitability. Ideal for high frequency and high current circuit applications in industrial and automotive electronics.

This Film Capacitor is an excellent choice for engineers designing power supplies, industrial controls, and automotive electronics. Explore our extensive range of premium electronic components on EnvMart to find compatible parts and enhance your project designs.
