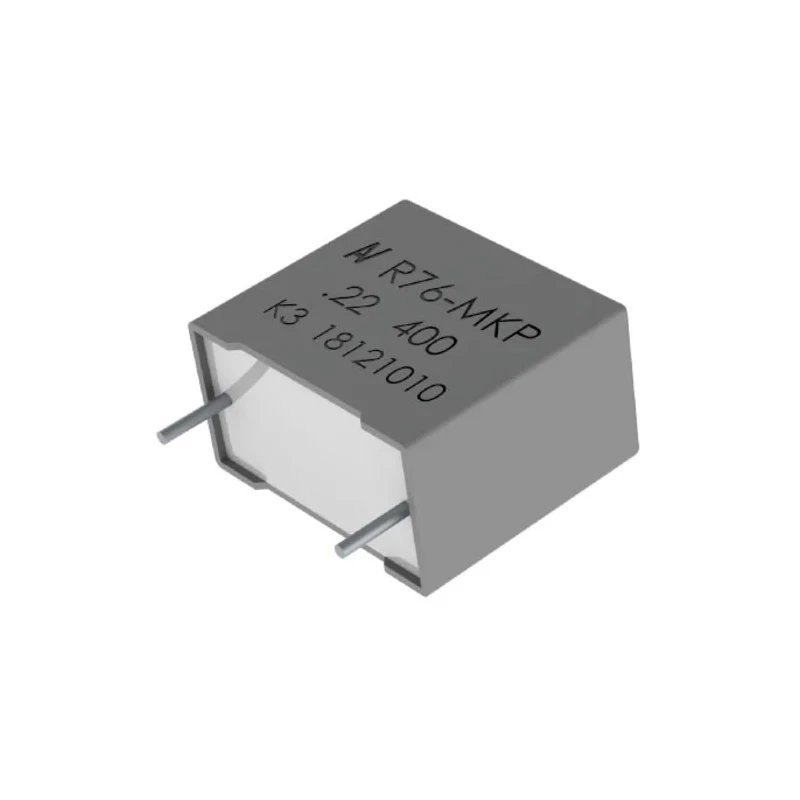

KEMET R76_125C Film Capacitor, 120 nF, ±5 % Tolerance, 1.6 kV DC 650 V AC, Through Hole Mount R76TR312050H3J

KEMET R76TR312050H3J Film Capacitor is a precision passive component designed with a capacitance of 120 nF and a tolerance of ±5 %. It is rated for 1.6 kV DC and 650 V AC voltage handling, ideal for demanding electronic applications within industrial and automotive environments.

The capacitor utilizes polypropylene film and metallized polyester film as electrodes with welded radial tinned wire leads, ensuring excellent electrical performance and durability. Its robust plastic encapsulation offers solvent resistance and self-extinguishing properties, making it safe for use in challenging conditions.

This through-hole mount capacitor features a lead pitch of 27.5 mm and solder terminal types for reliable PCB integration. Operating temperature range spans from -55°C to +125°C, supporting use in high temperature and harsh environments.

Its low Equivalent Series Resistance (ESR) of 27 milliohms and dissipation factor of 0.06% contribute to stable, efficient operation in high frequency and high current circuits, including snubber networks, silicon-controlled rectifiers (SCR), IGBTs, and MOSFET commutation.

The capacitor complies with IEC 60286-2 and RoHS directives and meets the automotive AEC-Q200 certification, underscoring its quality and reliability. It is supplied in trays for efficient handling in automated manufacturing processes.

Constructed with polypropylene and metallized polyester film electrodes for stable capacitance. Robust self-extinguishing plastic case with solvent resistance. Radial tinned wire leads designed for through-hole mounting and solder terminals.

Rated DC voltage: 1.6 kV; AC voltage: 650 V. Capacitance tolerance ±5 % for precise applications. Operating temperature range from -55°C to 125°C. Low Equivalent Series Resistance of 27 mΩ minimizes losses. Compliance with IEC 60286-2, RoHS, and AEC-Q200 automotive standards.

Tray packaging suitable for automated assembly lines.

This film capacitor is widely utilized in industrial, automotive electronics, power supply circuits, resonant circuits, and high frequency switching applications where reliability and performance are critical.
