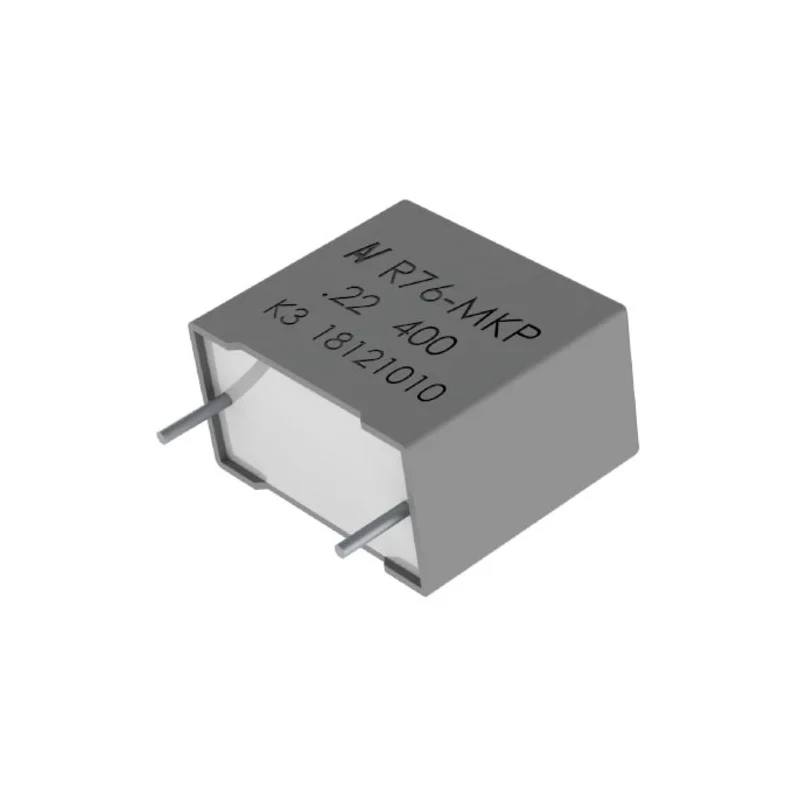

KEMET R76TI182050H4J Film Capacitor 8.2 nF ±5% 1.6 kV DC 650V AC Through Hole Mount

KEMET R76TI182050H4J film capacitor features a capacitance of 8.2 nF with a tolerance of ±5%. It supports rated DC voltage of 1.6 kV and rated AC voltage of 650V, making it suitable for demanding applications in electronic circuits. It utilizes a through hole mounting style with solder terminal type, facilitating reliable and sturdy PCB attachment.

The capacitor is constructed from polypropylene film and double metallized polyester film electrodes, interconnected with radial tinned wire leads of 15 mm pitch and 0.8 mm diameter. This design ensures excellent durability and electrical performance under high stress.

The device operates effectively across a broad temperature range from -55°C minimum to 125°C maximum, suitable for automotive and industrial applications complying with AEC-Q200 standards. It is RoHS compliant and meets IEC 60286-2 standards, reflecting its environmental and performance qualifications.

Its compact dimensions of 18 mm length, 5 mm width, and 11 mm height, combined with a pin count of 2 and a lead length of 25 mm, allows integration in space-constrained designs. The equivalent series resistance (ESR) is low at 78 mΩ ensuring reduced energy loss and heat generation during operation.

The R76 series capacitor is ideal for use in resonant circuits, high frequency and high current switching, including snubber circuits and silicon-controlled rectifier (SCR), IGBT, and SiC MOSFET commutation circuits. It supports high voltage and current combined with elevated ambient temperatures, suitable for industrial, automotive electronics, and power electronics applications.

Constructed with polypropylene film and metallized polyester electrodes. Wide operating temperature range from -55°C to 125°C for harsh environments. Complies with automotive AEC-Q200 and RoHS standards. Through hole mounting with radial tinned wire leads.

Rated for 1.6 kV DC and 650V AC voltage operation. Low equivalent series resistance of 78 mΩ for efficient performance. Compact dimensions and robust encapsulation for reliability.

This capacitor is a high-quality, reliable component for electronic circuit protection and performance enhancement in industrial, automotive, and power electronics applications. Explore our range of Film Capacitors to find components that meet your specific design requirements at EnvMart.
