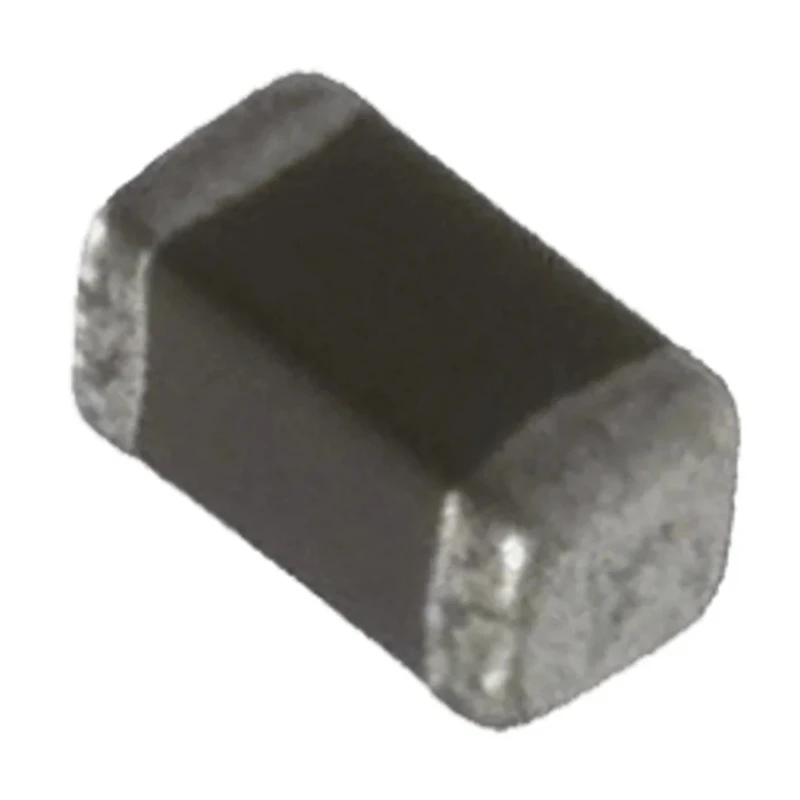

TDK Ferrite Bead 0.8 mm Surface Mount Chip Bead 0603, 2500 Ω Impedance at 100 MHz MMZ1608A252BTA00

TDK MMZ1608A252BTA00 ferrite bead is a high-performance multilayer chip bead designed for surface mounting applications in compact 0603 package size. With precise dimensions of 1.6 mm length and 0.8 mm height and depth, this ferrite bead offers an impedance of 2500 Ω at 100 MHz frequency, delivering effective EMI filtering and noise suppression in electronic signal lines.

This chip bead features magnetic shielding technology, allowing high density placement on PCBs without interference. It notably reduces floating capacitance between conductors, which enhances its high-frequency characteristics and makes it suitable for advanced consumer electronics requiring reliable EMI noise mitigation up to the GHz range.

Its current rating is set at 200 mA, with a maximum DC resistance of 0.8 Ω, supporting stable operation in challenging electrical environments. The operational temperature range spans from -55°C to 125°C, ensuring durability under diverse thermal conditions. The bead is packaged in a taping format facilitating automated assembly and efficient production processes.

Ideal applications include noise reduction in cellular phones, portable audio devices, and other signal line electronic equipment requiring compact, efficient EMI suppression components.

Multilayer chip bead 0603 MMZ series for surface mounting. Magnetically shielded for high density mounting and improved EMI suppression. Low floating capacitance enhances performance at high frequencies. 2500 Ω impedance at 100 MHz supports effective noise filtering.

200 mA rated current with 0.8 Ω max DC resistance ensures reliable operation. Wide operating temperature range from -55°C to 125°C. Packaged on tape and reel for efficient manufacturing integration.

This product is compliant with RoHS and REACH standards and does not meet automotive standards. It is ideally suited for industrial, telecommunications, consumer electronics manufacturing, and assembly line uses. EnvMart offers this TDK Ferrite Bead as a reliable solution for enhancing signal integrity and meeting stringent EMI regulatory requirements.
