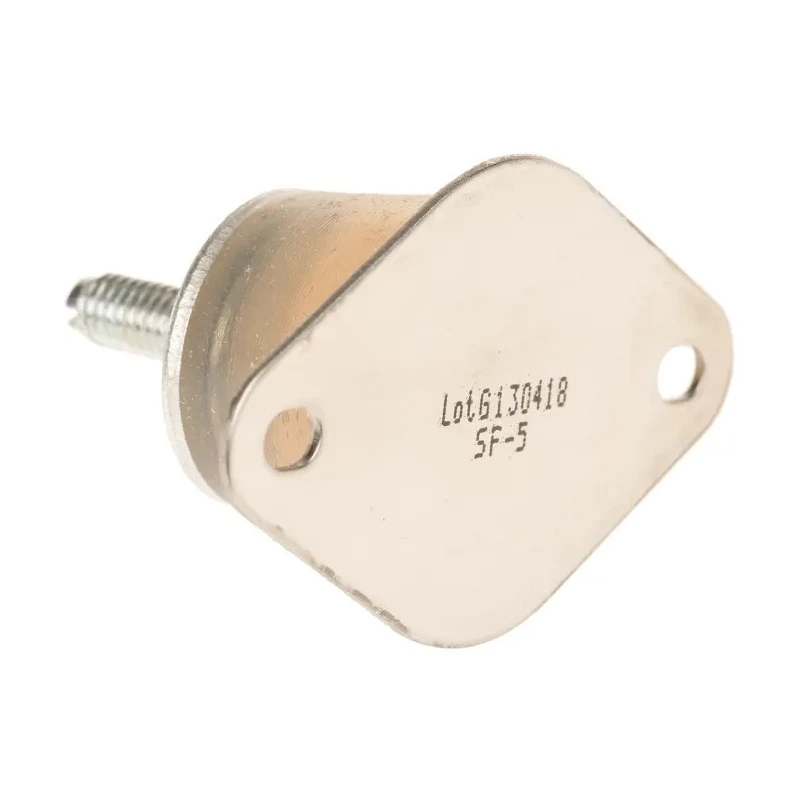

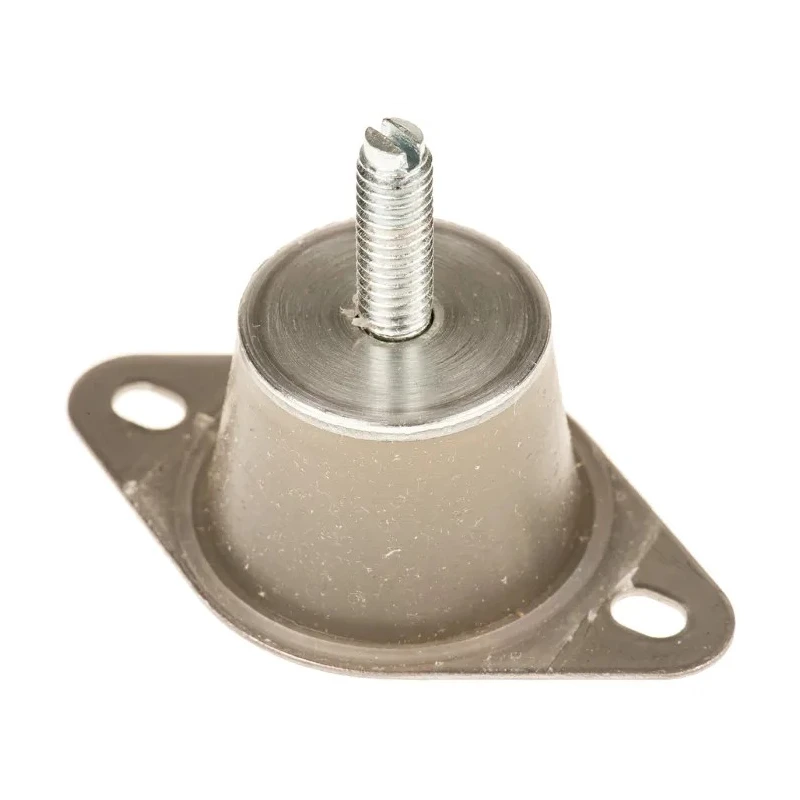

Taica Cylindrical M6 Anti-Vibration Mount Male Buffer Foot with 30 kg Compression Load 30 mm Outside Diameter 40 mm SF-5

Taica SF-5 Cylindrical M6 Anti-Vibration Mount Male Buffer Foot provides high-performance vibration damping with a compression load of 30 kg and an overall height of 40 mm. Made from durable silicone, this mount efficiently reduces vibrations and noise in machines and sensitive electronic equipment such as vacuum pumps and precision measuring instruments.

This male buffer foot features a cylindrical foot shape with an outside diameter of 30 mm and a foot height of 22 mm, delivering stability and effective damping. The mount type is bobbin, equipped with a stainless steel bottom plate that offers enhanced corrosion resistance, suitable for both indoor and outdoor applications.

Operating temperature range spans from -40°C to 200°C, enabling use in varied industrial environments. Its static and compression load ratings of 30 kg make it suitable for use with machinery loads from 5 up to 50 kg, absorbing shock and reducing noise at low frequencies better than rubber or neoprene mounts.

This mount is designed specifically for compression-only applications and should not be used under uneven loads, angular loading, twisting, tensile, or shearing stresses to ensure optimal performance and longevity.

High-quality silicone material ensures durability and excellent vibration damping. Compact dimensions with 30 mm outside diameter and 40 mm overall height. Bobbin mount with stainless steel bottom plate for corrosion resistance.

Wide operating temperature range from -40°C to 200°C for versatile use. 30 kg compression and static load rating suitable for various machinery. Ideal for vacuum pumps, electronic equipment, and precision instruments. Effectively dampens low frequency vibrations and reduces operational noise.

Designed for use in industrial, manufacturing, and laboratory environments. Manufactured in Japan ensuring high quality standards. Single piece packaging for direct installation. Explore RSB's extensive range of industrial machine mounts and vibration absorption components like the Taica SF series on EnvMart for enhanced machinery stability and protection.
