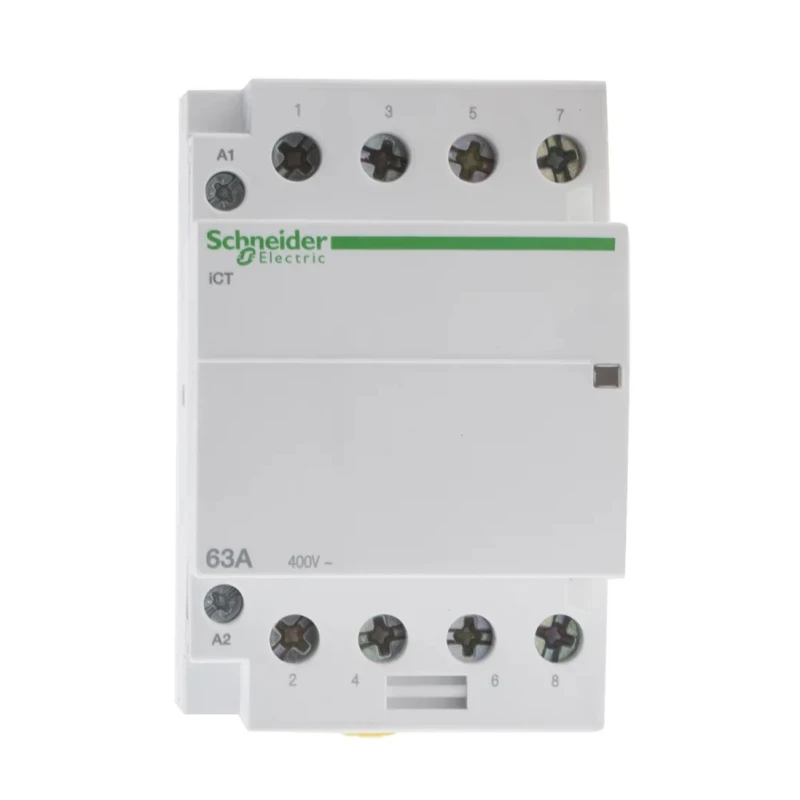

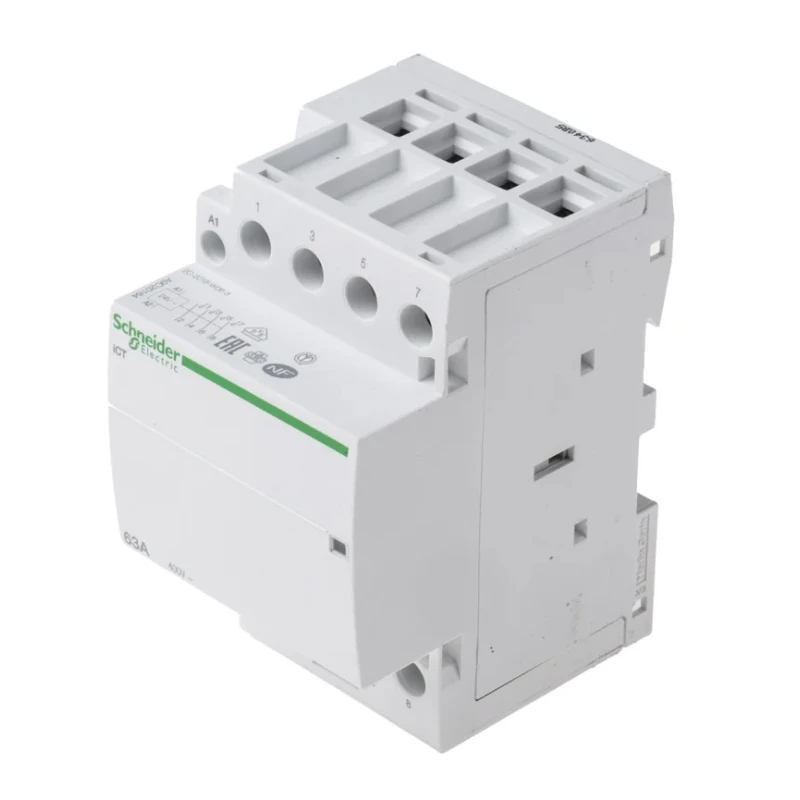

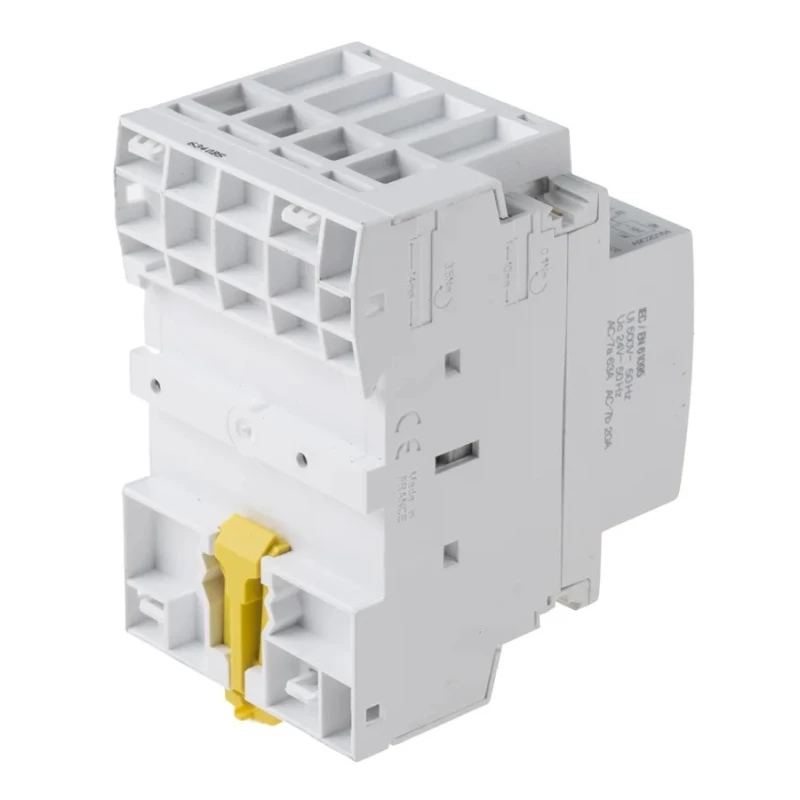

Schneider Electric Acti9 iCT 4-Pole 63A 24V AC Coil Motor Control Contactor Acti9
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 54mm |
| Model | Acti9 |
| Depth | 68mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | Acti9 iCT |
| Power Rating | 2.1W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, IEC/EN 61095 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Contact Current | 63A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 63A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Better World Verification | Byggvarubedömningen |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- Equipped with a 24V AC coil for efficient power consumption of 2.1W.
- Features 4 poles and 4 normally open contacts suitable for 400V AC operations.
- Designed for motor control applications with a 63A contact current rating.
- Compact DIN rail mounting with screw-type terminals offering IP20 finger safety.
- Operates reliably within ambient temperatures from -5°C to 60°C.
- Includes 4 auxiliary contacts configured as 4 NO for additional switching capabilities.
- Constructed with class-2 insulation ensuring continuous operator safety.
- Conforms to RoHS and IEC/EN 61095 standards, ensuring compliance and quality.
Product Description
Schneider Electric Acti9 A9C20164 is a high-performance 4-pole contactor designed for motor control applications requiring 63A contact current and 400V AC contact voltage. It features a 24V AC coil consuming 2.1W power, making it efficient for continuous operation. This contactor belongs to the reliable Acti9 iCT series, ensuring robust switching in both single-phase and three-phase electrical loads.
The device supports motor control with built-in auxiliary contacts for enhanced switching functionality. Its screw-type terminals comply with IP20 finger-safe standards, and the contactor can be mounted on a DIN rail for straightforward installation in industrial and automation control panels.
Operating temperature ranges from a minimum of -5°C to a maximum of 60°C, allowing for versatile environmental conditions. The contactor is designed with class-2 insulation to ensure continuous safety for both operators and unqualified personnel.
Conforming to RoHS and IEC/EN 61095 approvals, this Schneider Electric contactor supports sustainable and standardized industrial requirements. The product is manufactured in France, ensuring adherence to strict quality and manufacturing controls.
Equipped with 4 normally open (NO) main contacts and 4 auxiliary NO contacts. 24V AC coil voltage providing energy-efficient control. Auxiliary contacts expand switching capabilities for complex automation. Compact size with dimensions 68mm depth, 54mm length, and 85mm width.
Screw terminals accommodate international wiring standards with clearly marked connections.
This contactor is ideal for industrial automation, manufacturing assembly lines, HVAC systems, and other commercial motor control applications. Schneider Electric's Acti9 series is recognized for its reliability, safety features, and ease of integration into varied electrical control systems.
Explore more Schneider Electric automation products and contactors on EnvMart to enhance your industrial control setup with trusted quality and performance.
Explore more products in our Contactors & Auxiliary Contacts category.
