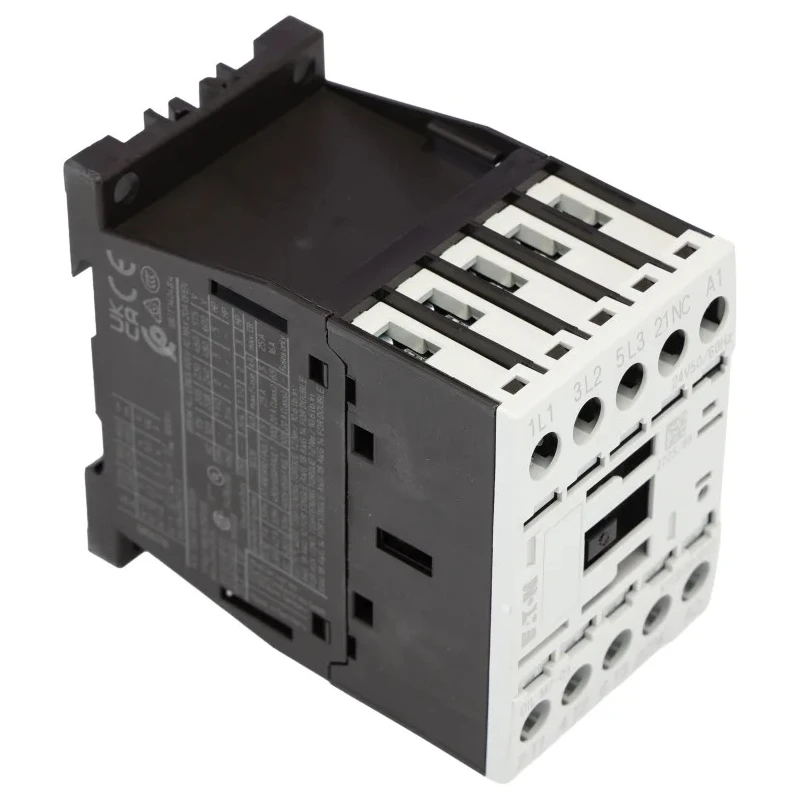

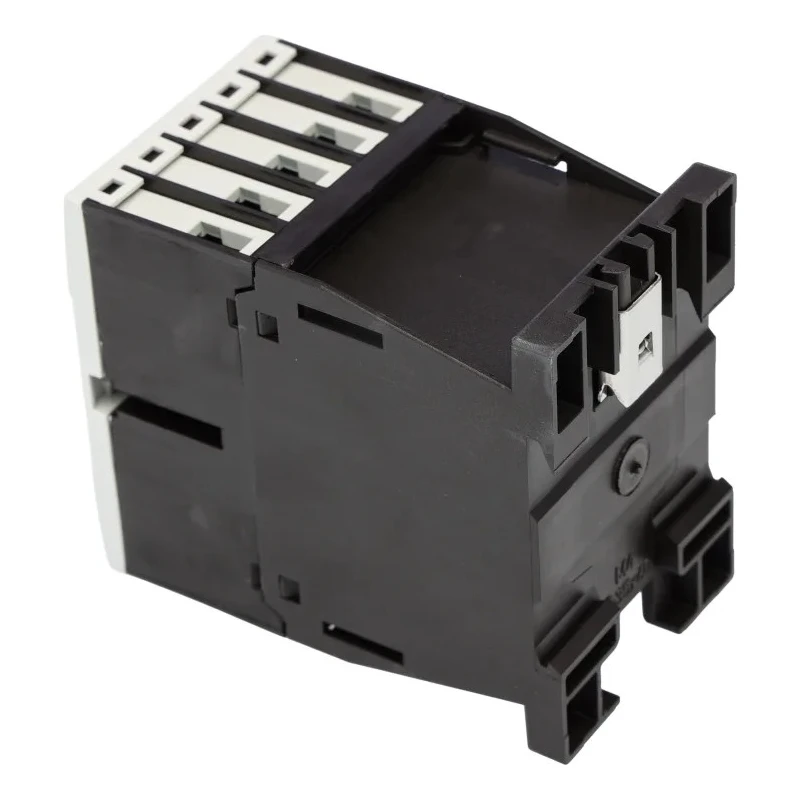

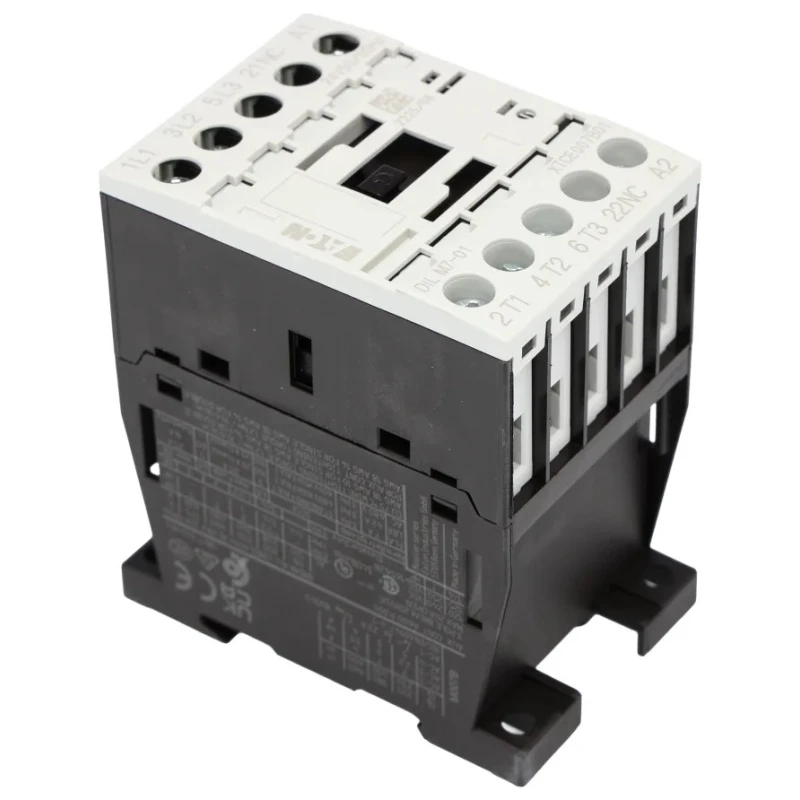

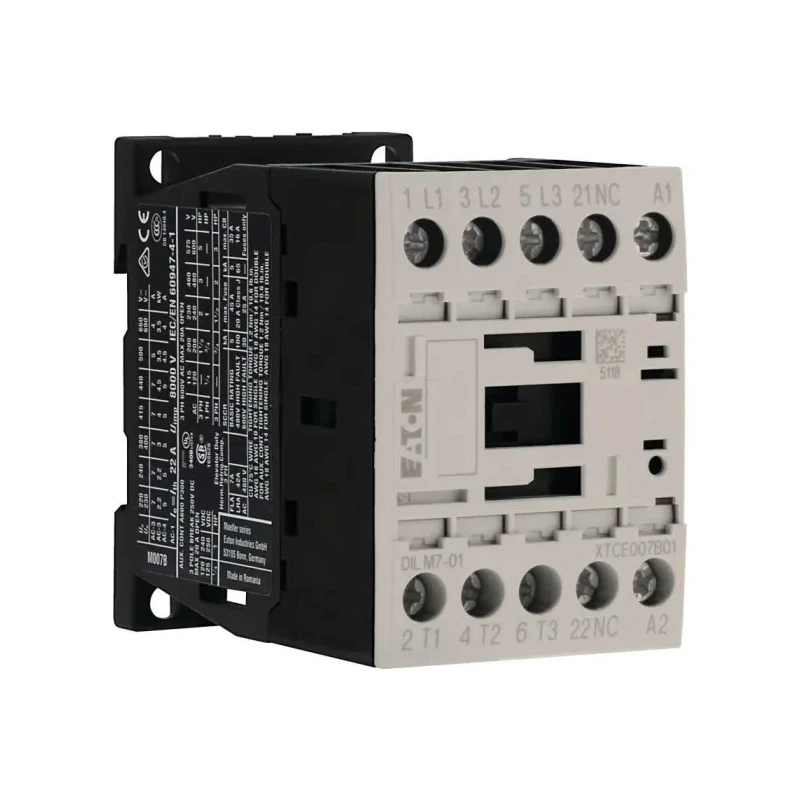

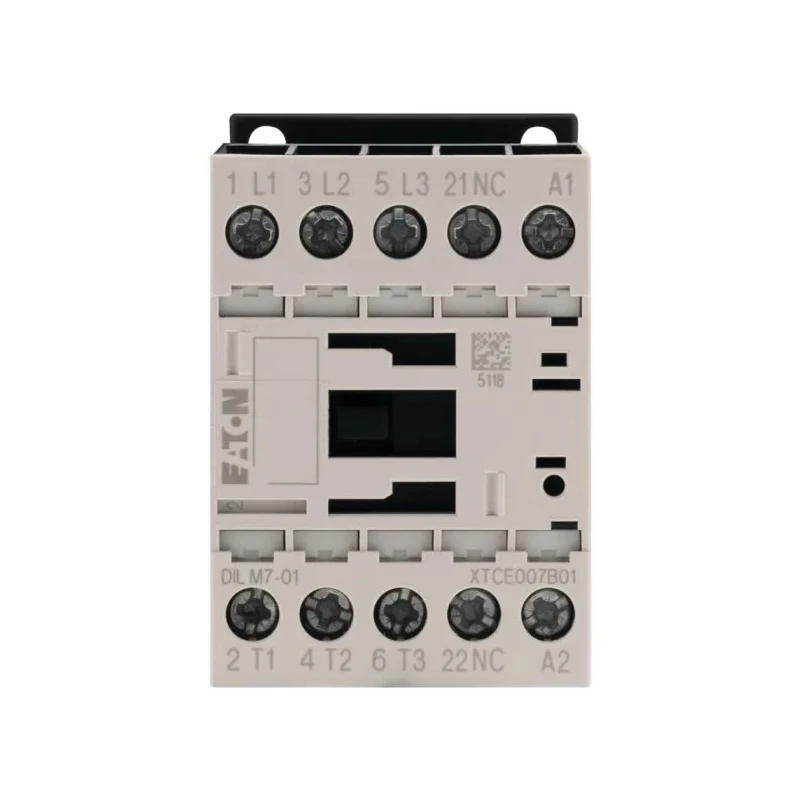

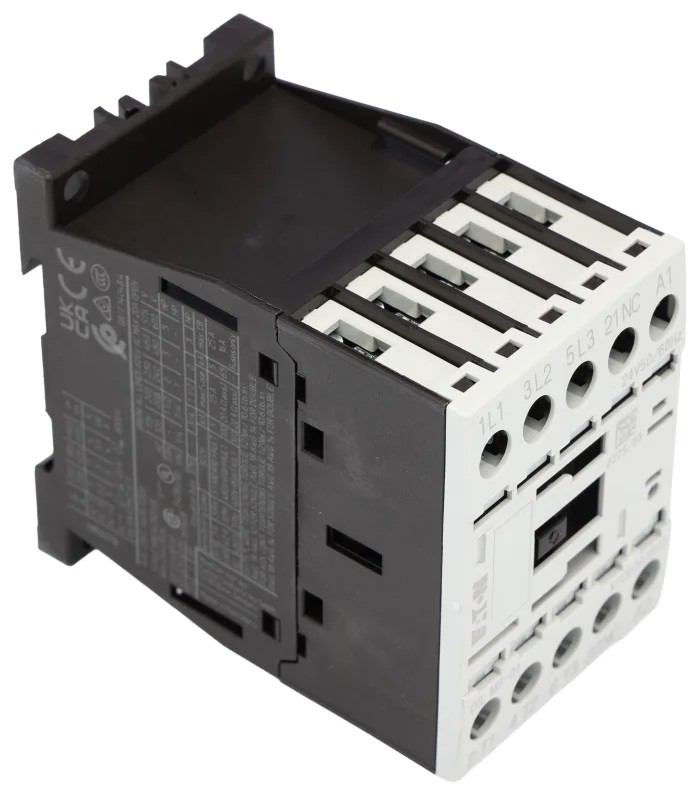

Eaton DILM Contactor 24V AC Coil, 3-Pole, 7 A, 3 kW Power Rating, 3 NO Contacts, 400V AC, DIN 276589 DILM7-01(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 68mm |
| Model | 276589 DILM7-01(24V50/60HZ) |
| Depth | 117mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA, IEC |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 7A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| Cooper Bussmann 1.5A T Fibre Cartridge Fuse, 10 x 38mmBrand | Cooper Bussmann |
Key Features
- Equipped with a 3 kW power rating suitable for resistive load applications.
- 3-pole configuration with 3 NO contacts provides reliable switching.
- Rated for operation in temperatures ranging from -25°C to 60°C for durability.
- Designed for DIN rail mounting ensuring easy installation in control panels.
- Features screw clamp terminals for secure and stable electrical connections.
- Suitable for motor control, resistive loads, HVAC, manufacturing, and electrical automation.
- Operates at 50/60 Hz frequency with a high mechanical endurance of 9000 operations per hour.
- Includes 1 auxiliary contact with 1 NC configuration for extended control functions.
Product Description
Eaton 276589 DILM7-01(24V50/60HZ) contactor is engineered for motor control applications and resistive load switching with a control coil voltage of 24V AC. This 3-pole contactor supports a contact voltage of 400V AC and a contact current rating of 7 A, providing a power rating of 3 kW. Operating efficiently within a temperature range of -25°C to 60°C, it features robust screw clamp terminals for secure electrical connections and is designed for convenient DIN rail mounting.
This contactor is ideal for use in industrial automation, manufacturing equipment, HVAC systems for fan and pump control, and powering inductive electrical loads. The device includes one auxiliary contact (1 NC) for additional control options. It delivers high operational endurance, rated for up to 9000 mechanical operations per hour, ensuring reliability in demanding environments. Compliance with UL, CSA, and IEC standards ensures that the contactor meets key safety and quality requirements.
Compact size with dimensions measuring 117 mm depth, 68 mm length, and 45 mm width allows easy integration within electrical enclosures. The Eaton DILM series contactors are widely trusted for heavy-duty motor control and resistive load applications across industrial, commercial, and HVAC sectors.
Equipped with a 3 kW power rating suitable for resistive load applications. 3-pole configuration with 3 NO contacts provides reliable switching. Rated for operation in temperatures ranging from -25°C to 60°C for durability.
Designed for DIN rail mounting ensuring easy installation in control panels. Features screw clamp terminals for secure and stable electrical connections. Suitable for motor control, resistive loads, HVAC, manufacturing, and electrical automation.
Operates at 50/60 Hz frequency with a high mechanical endurance of 9000 operations per hour. Includes 1 auxiliary contact with 1 NC configuration for extended control functions. Complies with UL, CSA, and IEC standards ensuring safety and reliability.
Compact dimensions ensure compatibility with standard electrical enclosures. Explore the Eaton range for reliable motor control solutions within the Automation & Control Gear category at EnvMart.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM7-01 contactor has a power rating of 3 kW, suitable for resistive load applications.
This model operates with a control coil voltage of 24V AC.
The contactor measures 68 mm in length, 45 mm in width, and 117 mm in depth.
The Eaton DILM7-01 contactor features a 3-pole configuration with 3 normally open (NO) contacts.
It is rated for operation in temperatures ranging from -25°C to 60°C.
This contactor features screw clamp terminals for secure and stable electrical connections.
The contact current rating is 7 A, allowing it to handle various electrical loads effectively.
Yes, it is suitable for HVAC systems, including fan and pump control, as well as other motor control applications.
It complies with UL, CSA, and IEC standards, ensuring safety and quality requirements are met.
This model operates at a frequency of 50/60 Hz.
The Eaton DILM7-01 includes one auxiliary contact with a normally closed (NC) configuration for extended control functions.
This contactor is designed for DIN rail mounting, ensuring easy installation in control panels.
