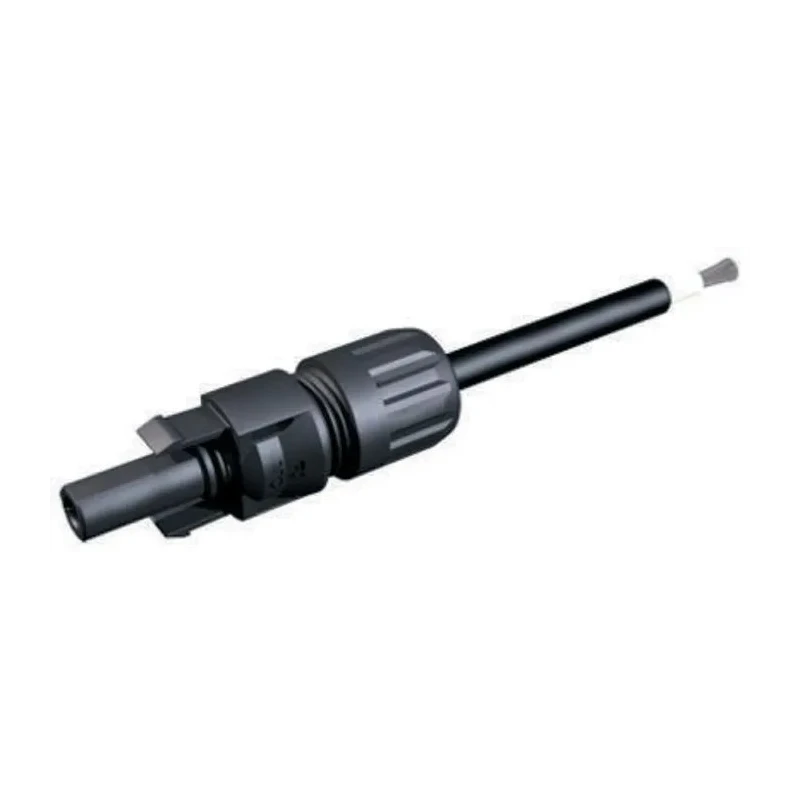

Staubli PV Series Female Cable MC4 Connector, Coupler, 1.5mm² & 2.5mm², 22A, 1kV, IP67, Crimp Termination 32.0010P0001

Free Delivery in India | Lowest Global Shipping Charges

Staubli PV Series Female Cable MC4 Connector, Coupler, 1.5mm² & 2.5mm², 22A, 1kV, IP67, Crimp Termination 32.0010P0001

Name: Staubli PV Series Female Cable MC4 Connector, Coupler, 1.5mm² & 2.5mm², 22A, 1kV, IP67, Crimp Termination 32.0010P0001
Brand: Staubli
SKU: 80177
Price: 4.07 USD
Availability: InStock



Category Solar Connectors Brand Staubli Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	Staubli
Current	22A
Model	32.0010P0001
Mount Type	Cable
Degree of Protection	IP67 mated, IP2X unmated
Series	PV
Termination Type	Crimp
Maximum Operating Temperature	90°C
Sub Type	Coupler
Minimum Operating Temperature	-40°C
Contact Gender	Female
Connector Gender	Female
Better World Claim	Renewable Energy Solution
Cable CSA	1.5, 2.5mm²

Key Features

Designed for photovoltaic installations, offering secure and reliable cable connections.
Supports cable cross-sectional areas of 1.5mm² and 2.5mm² for flexible solar cabling.
Crimp termination ensures robust connection and easy assembly with minimal tooling.
Rated for 22A current and 1kV voltage, meeting stringent PV industry standards.
Provides IP67 protection when mated and IP2X when unmated for superior durability.
Operates reliably in temperature ranges from -40°C to 90°C.
Female connector gender, coupler type, and MC-Multilam technology reduce contact resistance.

Product Description

Staubli 32.0010P0001 is a premium female MC4 cable coupler from the Staubli PV Series, engineered specifically for demanding photovoltaic applications. This connector offers a secure and efficient cable interface, accommodating cable cross-sectional areas of 1.5mm² and 2.5mm², suitable for modern solar projects requiring flexibility and robust electrical performance.

With a rated current of up to 22A and a maximum voltage of 1kV, it is designed to meet rigorous safety and operational standards in renewable energy installations, including large-scale solar farms, commercial rooftops, and distributed PV solutions. The crimp termination method allows for dependable mechanical and electrical connections, supporting installation efficiency and ensuring long-term reliability.

The female connector configuration and coupler subtype are optimized for easy mating with compatible male MC4 connectors, creating a reliable locking mechanism. Staubli’s MC-Multilam technology guarantees very low contact resistance, reducing power losses and enhancing system efficiency. The connector’s degree of protection is high, being IP67-rated when mated for outdoor durability, and IP2X unmated to mitigate accidental contact with live elements.

Operating within a broad temperature range of -40°C to 90°C, the connector is robust for extreme environmental conditions frequently encountered in the solar sector. Its international standards compliance and renewable-energy solution credentials make it an excellent choice for both new installations and system expansions. The PV Series is recognized worldwide for its quality and performance.

Practical applications include industrial, commercial, and utility-scale solar power generation, as well as laboratory and field systems requiring consistent PV connectivity. The connector is assembled quickly with minimal tools, improving installation speed on-site. Its crimp cable mounting is compatible with standard solar cables for versatile application options.

Explore other PV connectors and renewable energy products in the Solar Connectors category or from Staubli to ensure your installation maintains high efficiency and safety standards with proven, high-quality components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a maximum current rating of 22A, making it suitable for various photovoltaic applications.

It is rated for a maximum voltage of 1kV, ensuring compatibility with high-voltage solar systems.

This connector supports cable cross-sectional areas of 1.5mm² and 2.5mm², allowing flexibility in installation.

The connector provides IP67 protection when mated and IP2X when unmated, ensuring durability in various environments.

It operates reliably within a temperature range of -40°C to 90°C, suitable for extreme conditions encountered in solar applications.

This unit uses a crimp termination method, which allows for a secure mechanical and electrical connection with minimal tooling required.

It features a female connector gender, designed to mate with compatible male MC4 connectors for reliable connections.

The country of origin for this connector is Switzerland, reflecting high manufacturing standards.

It is suitable for industrial, commercial, and utility-scale solar power generation, as well as laboratory and field systems requiring reliable PV connectivity.

The model number for this connector is 32.0010P0001, which identifies it within the Staubli PV Series.
