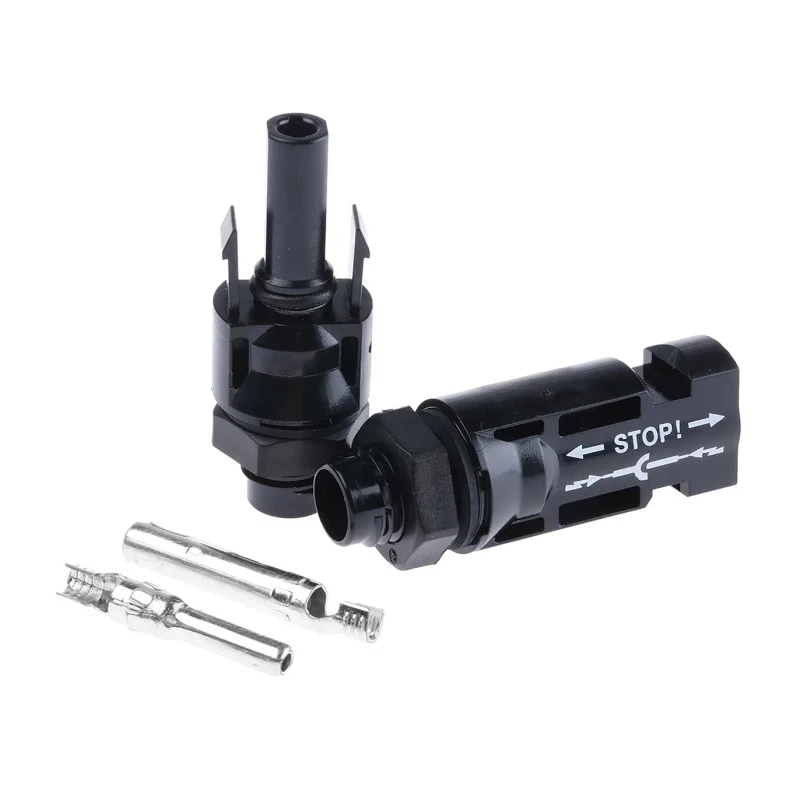

Staubli PV Series Female Panel MC4 Connector Cable CSA 1.5mm² 2.5mm² Voltage 1kV Current 22.5A 32.0076P0001+32.0077P0001

Staubli 32.0076P0001+32.0077P0001 PV Series female panel MC4 connector cable supports cable CSA 1.5mm² and 2.5mm², rated at 1kV voltage and 22.5A current. It is engineered for photovoltaic panel mounting applications where durability and high efficiency are essential.

The connector uses crimp termination type and features female connector gender designed for reliable, secure connections in solar power installations. It is suitable for a wide temperature range from -40°C to 90°C, guaranteeing consistent operation in extreme environmental conditions.

This cable connector series includes MC-Multilam technology that ensures very low contact resistance, enhancing electrical performance and reliability. The connectors offer an IP67 degree of protection when mated and IP2X protection when unmated, assuring dust-tight and water-resistant operation.

Manufactured in Switzerland, the Staubli PV Series adheres to stringent quality standards to meet the demands of renewable energy projects. The connector features an M12 thread size for secure locking and quick assembly, requiring minimal tooling.

Supports cable cross-sectional areas of 1.5mm² and 2.5mm² for versatile wiring options. Rated for 1kV voltage and 22.5A current capacity to ensure efficient power transfer. Constructed for panel mounting with female connector gender and crimp termination.

Operates reliably from -40°C to 90°C, suitable for harsh environmental conditions. Features IP67 rated protection when mated, providing excellent resistance to dust and water. Equipped with MC-Multilam contact technology for low contact resistance and high performance.

Product manufactured in Switzerland, ensuring quality craftsmanship and standards compliance. Includes thread size M12 for secure locking and easy assembly with minimal tooling.

This Staubli PV Series female panel MC4 connector is widely used in industrial, renewable energy, solar photovoltaic installations, and commercial solar power systems. Its robust design supports reliable solar power connections with long service life and low maintenance.
