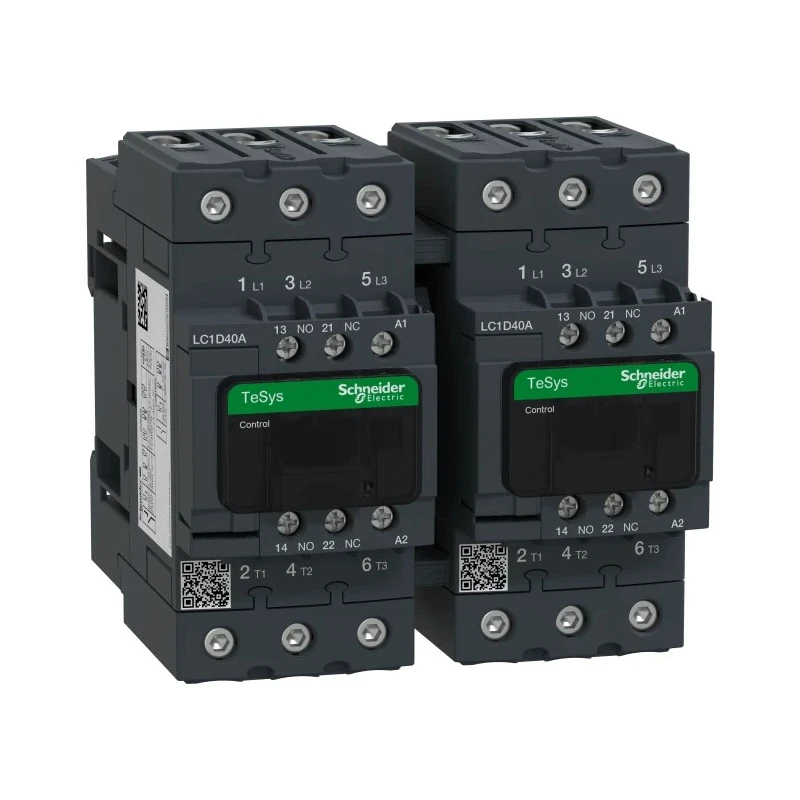

Schneider Electric TeSys D Contactor, 3-Pole, 40 A, 8.5 kW, 24V AC Coil, 3 NO, 690V AC LC2D40AB7

Schneider Electric LC2D40AB7 is a TeSys D reversing contactor designed for robust motor control applications. It features a 24V AC coil, 3 poles each with normally open (NO) contacts, and is rated for 40A contact current and 690V AC contact voltage. This contactor is suitable for controlling motors and resistive load applications with a power rating of 8.5 kW at 24V AC.

The device includes four built-in auxiliary contacts configured as 2 NO and 2 NC, including mechanically interlocked contacts ideal for safety systems requiring mirror contacts. The ever-reliable EverLink BTR screw connectors ensure constant pressure and secure power connections. The contactor is designed for DIN rail mounting with screw clamp terminals, allowing easy front access to coil and auxiliary contact connections.

This Schneider Electric contactor operates efficiently within a temperature range of -5°C to 60°C, supporting operational frequencies of 50/60Hz. It withstands demanding use with a high electrical durability, rated for 1.6 million cycles at 40A AC-3 category at 440V, and suitable for operation up to 3600 cycles per hour. Its compact dimensions (165mm width, 142mm depth, and 132mm length) allow for space-saving installations in panel boards.

Certified according to IEC, UL, CSA, CCC, EAC standards and compliant with RoHS and REACh regulations, it meets rigorous international quality and environmental requirements. The device includes a mechanical interlock with pre-wired reversing circuit configurations for safe and straightforward motor reversing operations without electrical interlocking.

Designed in France, this contactor is recognized for its high reliability, energy efficiency, and ease of installation, making it an ideal choice for industrial, manufacturing, HVAC, and other automation environments requiring precise motor control.

Operates at a coil voltage of 24V AC with 3-pole configuration. Includes 2NO + 2NC auxiliary contacts for flexible control schemes. EverLink BTR screw connectors ensure durable and secure power connections. Compact DIN rail mounting reduces panel space requirements.

High electrical durability supports demanding motor switching applications. Compliant with major international standards including IEC, UL, and RoHS. Wide operating temperature range from -5°C to 60°C. Mechanical interlock for safe reversing without electrical interlocking.

Designed and manufactured in France for quality assurance. Explore the Automation & Control Gear category on EnvMart for a wide selection of contactors suitable for your industrial and commercial automation needs.
