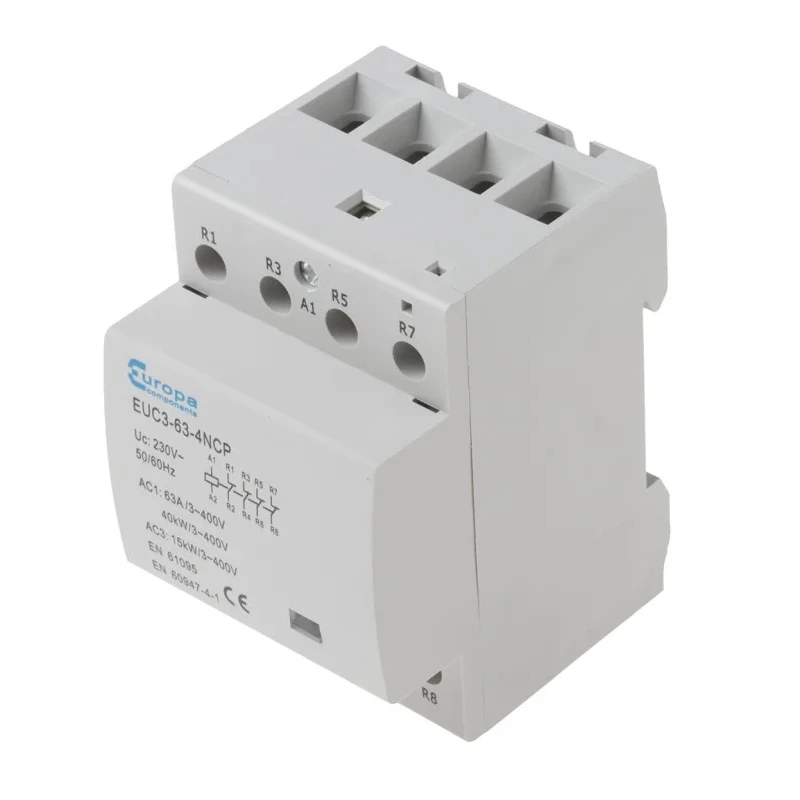

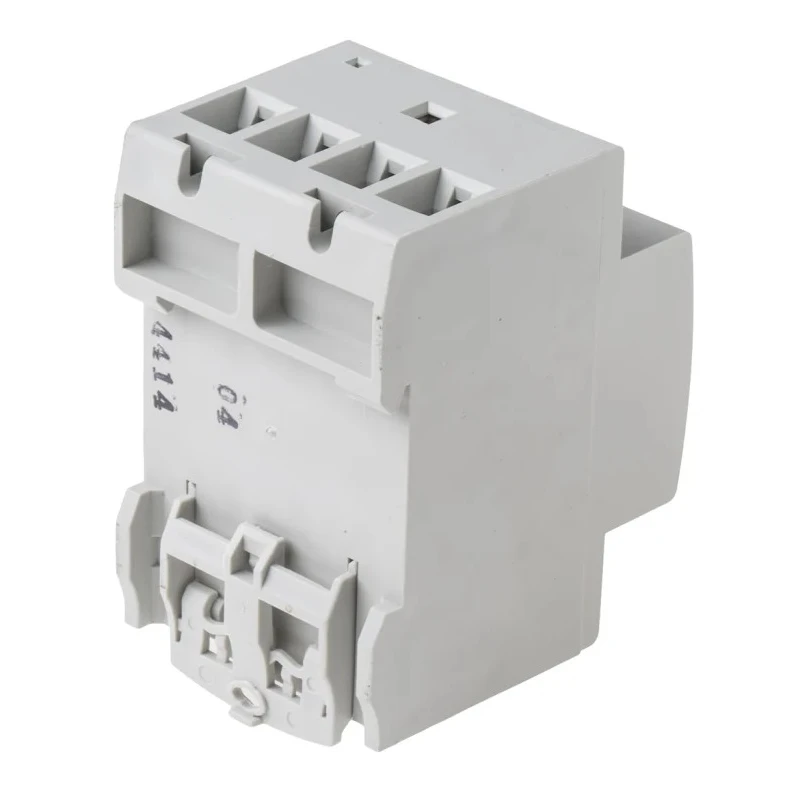

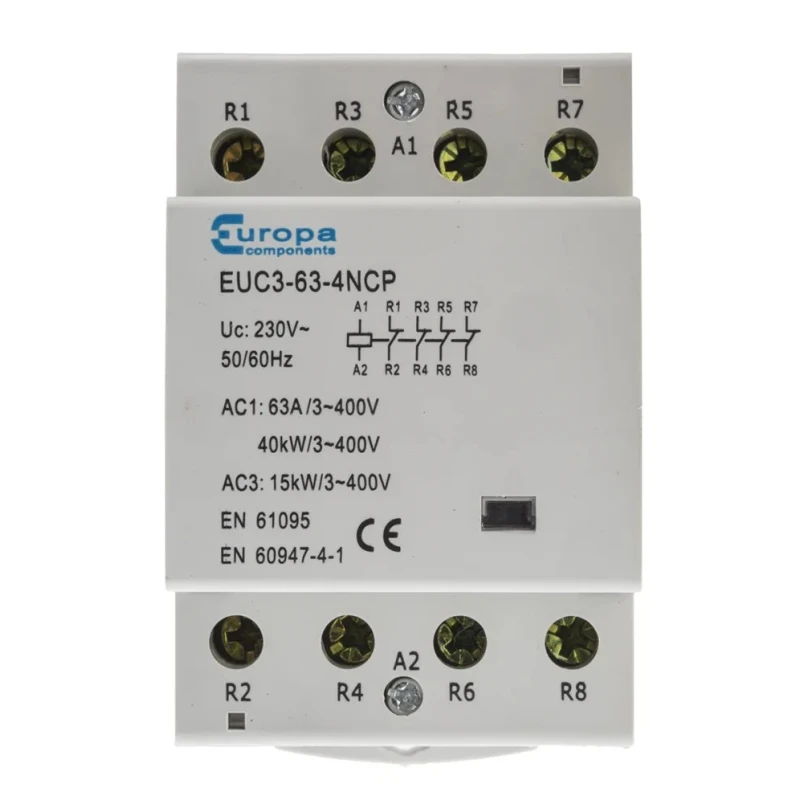

Europa 4-Pole 63 A Motor Control Contactor with 230V AC Coil, 40 kW Power Rating, 4 NC Aux Contacts EUC3-63-4NCP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Europa |
| Operating Temperature | -5°C to 40°C |
| Function | Motor Control |
| Length | 54mm |
| Model | EUC3-63-4NCP |
| Depth | 68mm |
| Width | 87.5mm |
| Mount Type | DIN Rail |
| Series | EUC |
| Power Rating | 40kW |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CE, CSA, RoHS, cUL, EAC, IEC |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NC |
| Contact Current | 63A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 4 NC |
| Operational Current Ie | 63A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4PST |
| Maximum cable capacity main terminals | 10 mm² |
| Maximum cable capacity coil terminals | 2.5 mm² |
Key Features
- Designed for motor control applications with 4 normally closed auxiliary contacts.
- Supports 400V AC contact voltage ensuring robust electrical performance.
- DIN Rail mounting compatible for easy installation in consumer and distribution boards.
- Compact dimensions with length 54mm, width 87.5mm, and depth 68mm optimize space utilization.
- Equipped with screw terminals for secure electrical connections.
- Operates efficiently in temperatures ranging from -5°C to 40°C.
- Maximum cable capacity of 10 mm² for main terminals and 2.5 mm² for coil terminals.
- Compliant with CE, CSA, RoHS, cUL, EAC, and IEC standards for safety and reliability.
Product Description
Europa EUC3-63-4NCP is a reliable 4-pole motor control contactor equipped with a 230V AC coil designed for industrial and commercial electrical control systems.
This contactor offers a contact current rating of 63 A and a power rating of 40 kW at 230V AC, making it suitable for controlling motors and other heavy electrical loads in automated environments.
Featuring four normally closed auxiliary contacts, the device enables precise motor control and integration within complex control circuits.
It is constructed for DIN Rail mounting on 35mm rails, allowing installation within consumer units and three-phase distribution boards, ideal for building services, heating, and lighting applications.
The contactor’s screw terminal design ensures secure and efficient wiring connections with a maximum cable capacity of 10 mm² on the main terminals and 2.5 mm² on coil terminals, facilitating safe electrical hookup.
Operating temperature range of -5°C to 40°C guarantees dependable performance under typical industrial conditions. Compact physical dimensions (length 54mm, width 87.5mm, depth 68mm) support integration in tight panel spaces.
Designed for effective motor control using a 230V AC coil and four poles. High contact current rating of 63 A supports heavy-duty electrical loads. Robust build with screw terminals and rated cable capacity enhances installation safety.
Compliant with internationally recognized standards including CE, CSA, RoHS, cUL, EAC, and IEC. Modular DIN Rail mount design enables convenient integration into electrical panels. Auxiliary contacts provide additional control options for complex circuits.
Suitable for a broad range of industrial, commercial, and HVAC control applications.
The Europa EUC3 series contactors are widely used in industrial automation, manufacturing facilities, building management systems, and electrical distribution networks, providing reliable switching performance and ease of maintenance.
Explore the extensive selection of automation and control gear available on EnvMart to complement your control system solutions.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 40 kW at 230V AC.
This model has a maximum contact current rating of 63 A.
It operates efficiently within a temperature range of -5°C to 40°C.
The contactor is equipped with four normally closed auxiliary contacts.
It is designed for DIN Rail mounting on 35mm rails, suitable for installation in consumer units and distribution boards.
The maximum cable capacity for the main terminals is 10 mm².
The coil voltage for this contactor is 230V AC.
The dimensions are 54mm in length, 87.5mm in width, and 68mm in depth.
This model complies with CE, CSA, RoHS, cUL, EAC, and IEC standards.
The contact voltage rating is 400V AC.
It features screw terminals for secure electrical connections.
It is suitable for motor control applications in industrial and commercial environments.
