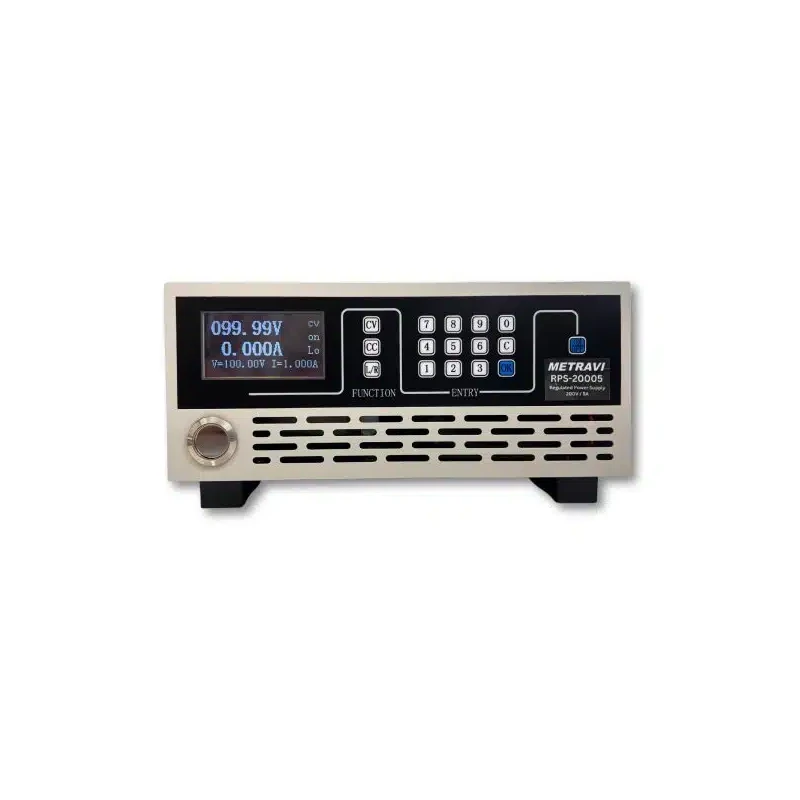

Metravi DC Regulated Power Supply RPS-20005
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi RPS-20005 DC Regulated Power Supply |
| Frequency | 50Hz±5% |
| Brand | Metravi |
| Efficiency | Greater than 85% |
| Model | RPS-20005 |
| Temperature Drift | ≤±1% of rated value/°C |
| Insulation Strength | ≥20MΩ no breakdown or arcing Class-B insulation |
| Output Voltage Accuracy | Less than 0.2% |
| Input Voltage | Single-phase 220VAC±10%+PE (Power ≤1kW) |
| Line Regulation Rate | Output voltage change ≤±0.05% when mains vary between 200–240VAC |
| Load Regulation Rate | Output voltage change ≤±0.05% when load varies 15–100% full load |
| Time Drift (Continuous Operation Greater Than 8H) | ≤±1% of rated value |
| Output Current Accuracy | Less than 0.2% |
| Ripple Voltage | ≤0.5% (typical effective value ripple) |
| Withstand Voltage Rating | Input–Shell ≥1500VAC 1min leakage ≤30mA/Input–Output ≥1500VAC 1min leakage ≤30mA/Output–Shell ≥500VAC 1min leakage ≤30mA |
Key Features
- Using PWM pulse width modulation technology based on world-famous brand IGBT or MOSFET power switching component.
- 3C3 coating level for main control board and soft magnetic core adopted.
- Low ripple, fast dynamic response rate, ripple and accuracy up to 0.2%.
- High efficiency, accurate precision, good and reliable performance.
- The output voltage and current can be continuously adjustable from 0 to 100% rated value.
- OVP & OCP values can be arbitrarily settable.
- Relative wide load adaptability.
- Complete protection functions, such as OVP, OCP & OTP.
- Working and protection status indication.
- Equipped with RS232 or RS485 interface. (Optional)
Product Description
Metravi RPS-20005 DC Regulated Power Supply provides adjustable output voltage and current with excellent load and line regulation. Featuring digital displays for both parameters, it ensures precise control for laboratory, R&D, and testing environments. With overload and short-circuit protection, it guarantees operational safety and reliability. The RPS-20005’s compact design and high stability make it ideal for powering circuits, calibration tasks, and electronic testing in professional and educational setups.
Available on EnvMart, these Power Supply Systems are designed to provide stable and efficient electrical power for various applications. Metravi Power Supply Systems offer precision, safety, and reliability, making them ideal for laboratories, testing setups, and industrial use.
