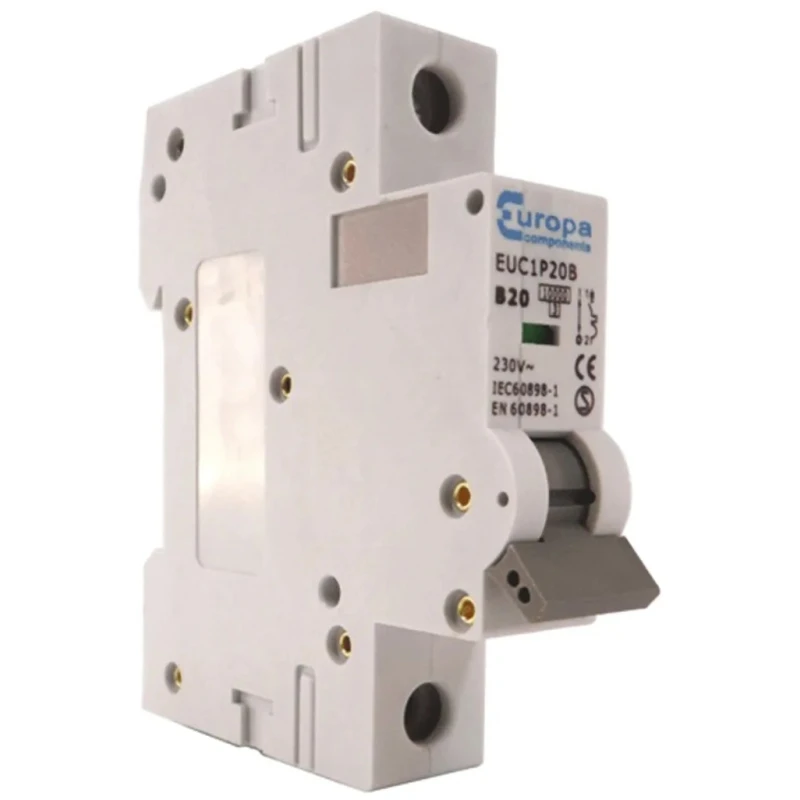

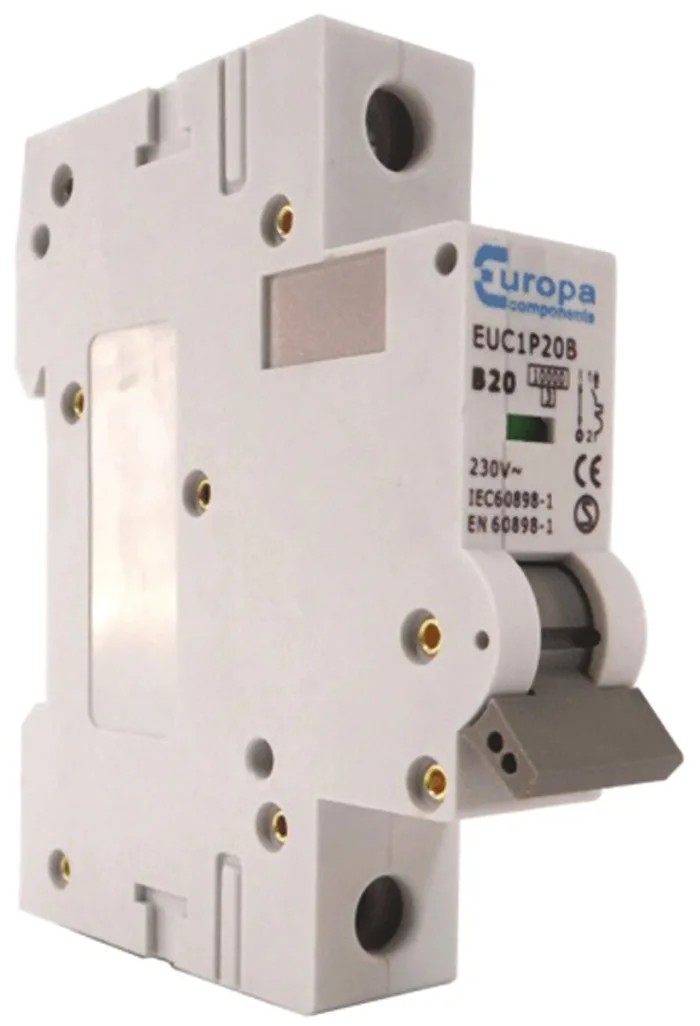

Europa Miniature Circuit Breaker, 1-Pole, 20A, Type B, 400V AC, 10 kA Breaking Capacity EUC1P
Specifications
| Country of Origin | China |
|---|---|
| Range | EUC1P |
| Brand | Europa |
| Height | 18mm |
| Model | EUC1P |
| Depth | 87mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUC1P |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60898, IEC 60898, SEMKO, CE |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Reset Actuator Type | Toggle Switch |
Key Features
- Rated for 400V AC voltage ensuring compatibility with standard electrical installations.
- Type B tripping characteristic provides protection against overload and short circuits.
- 10 kA breaking capacity for high fault current interruption capability.
- Compact design with 18mm height and 78mm width suited for DIN rail mounting.
- IP20 rated enclosure protects against solid objects and provides safety.
- Equipped with a toggle switch reset actuator for easy manual operation.
- Terminal capacity supports wiring from 1mm² up to 25mm² conductors.
- Compliance with IEC 60898 and EN 60898 standards ensures safety and quality.
Product Description
Europa EUC1P Miniature Circuit Breaker, model EUC1P20B, is designed for effective overload and short circuit protection in electrical distribution systems operating at 400V AC. It features a single pole with a current rating of 20A and a Type B tripping characteristic, suitable for residential, commercial, and light industrial applications.
The breaker offers a breaking capacity of 10 kA, ensuring it can safely interrupt high fault currents to protect electrical circuits. Its compact form factor measures 18mm in height, 78mm in width, and 87mm in depth, making it ideal for installation on standard 35mm DIN rails.
The device supports terminal wiring from 1mm² to 25mm² with tunnel type terminals, providing flexibility in installation. Its IP20 rating offers protection against solid objects larger than 12mm and prevents accidental contact with live internal components.
Built to conform with recognized standards including IEC 60898 and EN 60898, and approved by SEMKO and CE, this circuit breaker assures quality and safety in use. Rated for 400V AC voltage ensuring compatibility with standard electrical installations.
Type B tripping characteristic for overload and short circuit protection. 10 kA breaking capacity for high fault current interruption capability. Compact design allows easy DIN rail mounting. IP20 rated enclosure for safety against solid intrusions.
Toggle switch actuator for manual reset. Supports terminal wiring from 1mm² to 25mm² conductors. Conforms to IEC 60898, EN 60898 standards with CE and SEMKO approvals.
This Miniature Circuit Breaker is suitable for electrical distribution panels in residential, commercial, and light industrial environments, providing reliable protection and ease of installation.
Explore more quality circuit breakers at EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, making it suitable for various electrical applications.
It features a breaking capacity of 10 kA, which allows it to safely interrupt high fault currents.
The circuit breaker is rated for 400V AC, ensuring compatibility with standard electrical installations.
The dimensions are 18mm in height, 78mm in width, and 87mm in depth, making it compact for installation.
It has a Type B tripping characteristic, providing protection against overload and short circuits.
The enclosure has an IP20 rating, which protects against solid objects larger than 12mm and prevents accidental contact with live parts.
It is equipped with a toggle switch reset actuator, allowing for easy manual operation to reset the breaker.
The terminal capacity supports wiring from 1mm² to 25mm² conductors, providing flexibility in installation.
It conforms to IEC 60898 and EN 60898 standards, and is approved by SEMKO and CE, ensuring safety and quality.
This unit is designed for DIN rail mounting, which is common in electrical distribution systems.
The country of origin for this circuit breaker is China.
It is suitable for residential, commercial, and light industrial applications, providing effective overload and short circuit protection.
