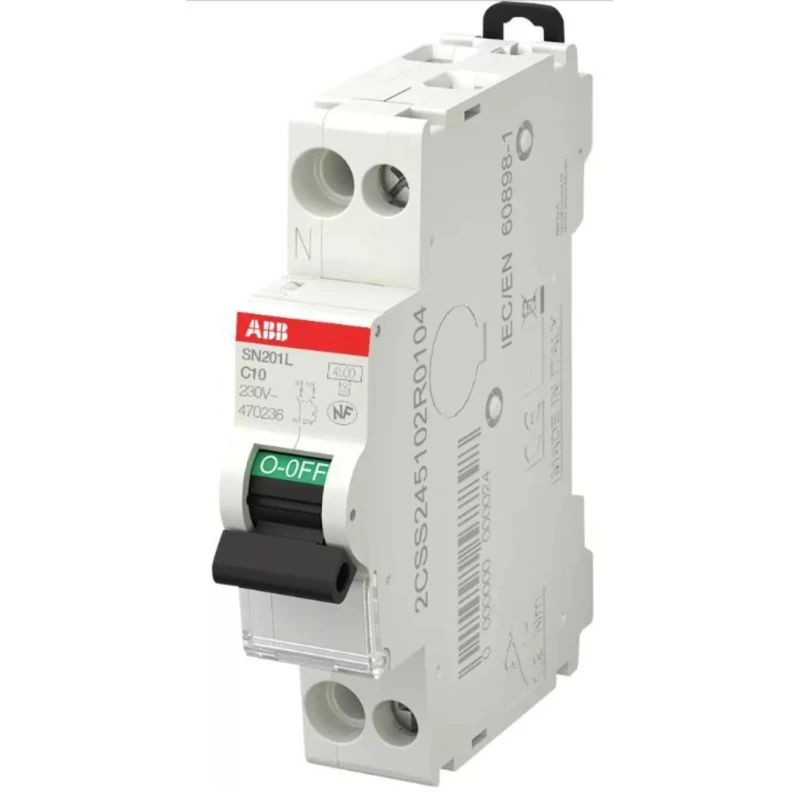

ABB Miniature Circuit Breaker 1-Pole 10A Type C 230V AC 4.5kA Breaking Capacity SN201

Free Delivery in India | Lowest Global Shipping Charges

ABB Miniature Circuit Breaker 1-Pole 10A Type C 230V AC 4.5kA Breaking Capacity SN201



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	SN201
Brand	ABB
Height	85mm
Model	SN201
Depth	85mm
IP Rating	IP20
Width	18mm
Mount Type	DIN Rail
Current Rating	10A
Series	SN201
Terminal type	Screw
Breaking Capacity	4.5kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Reset Actuator Type	Toggle Switch

Key Features

Type C tripping characteristics allow operation at 5 to 10 times rated current.
Rated for 230V AC voltage systems.
Breaking capacity of 4.5 kA for effective fault clearance.
Compact design with dimensions 69mm(L) x 18mm(W) x 85mm(H) for space-saving DIN rail mounting.
Screw terminal type ensures secure electrical connections.
Toggle switch with clear red and green contact position indicators.
Energy-efficient operation with low power loss of 1.9W per pole.
IP20 protection rating suitable for indoor electrical installations.

Product Description

ABB SN201 Miniature Circuit Breaker, model 2CSS245102R0104, is a 1-pole circuit breaker rated for 10A current with Type C tripping characteristics. It operates at 230V AC voltage and provides a breaking capacity of 4.5 kA, ensuring reliable protection against overloads and short circuits in electrical systems.

This Miniature Circuit Breaker is designed for easy DIN rail mounting, featuring a compact form factor of 69mm length, 18mm width, and 85mm height. The device incorporates a screw terminal type for secure and stable electrical connections. Its toggle switch includes red and green indicators that clearly show the ON/OFF status, enhancing user safety and operational clarity.

With a low power loss of only 1.9W per pole, this MCB is energy efficient and suitable for continuous operation in various electrical setups. The IP20 rating provides protection against accidental contact with live parts, making it ideal for indoor installations.

Lightweight at about 110 grams, the SN201 circuit breaker minimizes mechanical strain on electrical panels and mounting supports. This product is compliant with IEC/EN 60898-1 standards, ensuring high reliability and safety.

Typical applications include protection of electrical circuits in public buildings, office spaces, and hospitals where safeguarding equipment and human safety is paramount. Type C tripping characteristics ensure appropriate response to moderate surges.

Compact and lightweight design maximize installation flexibility. Red and green contact position indicators enable easy status monitoring. DIN rail mount for quick installation and maintenance. Complies with IEC/EN 60898-1 international standards.
