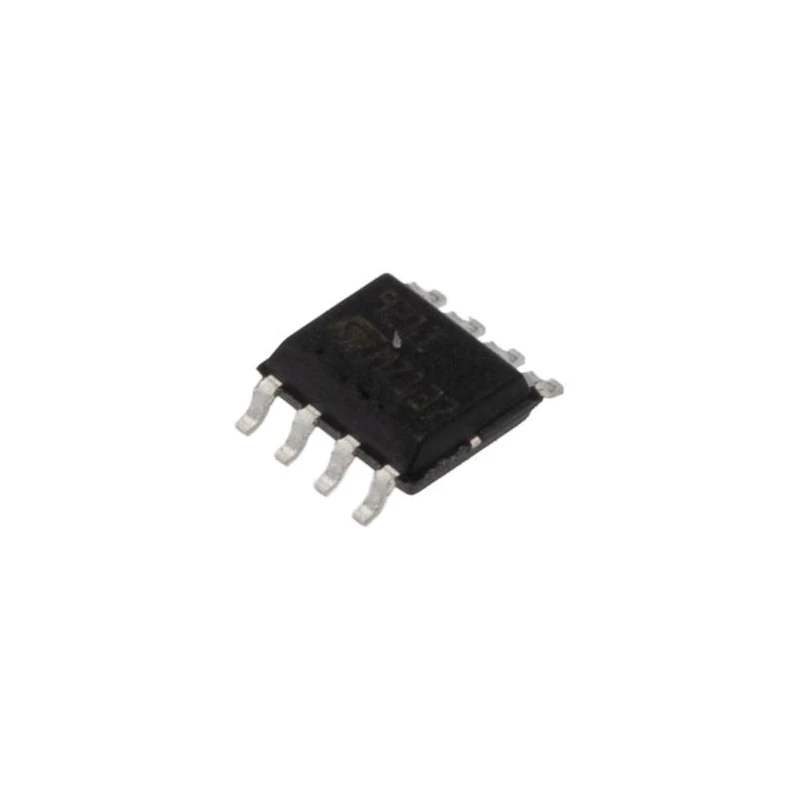

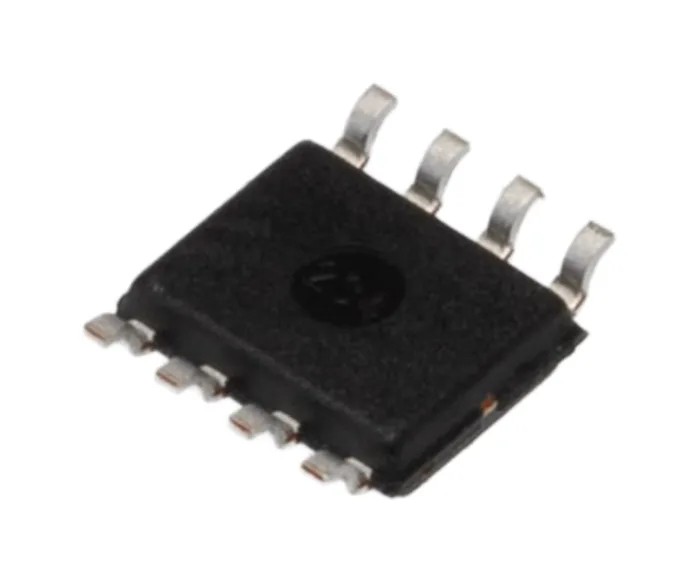

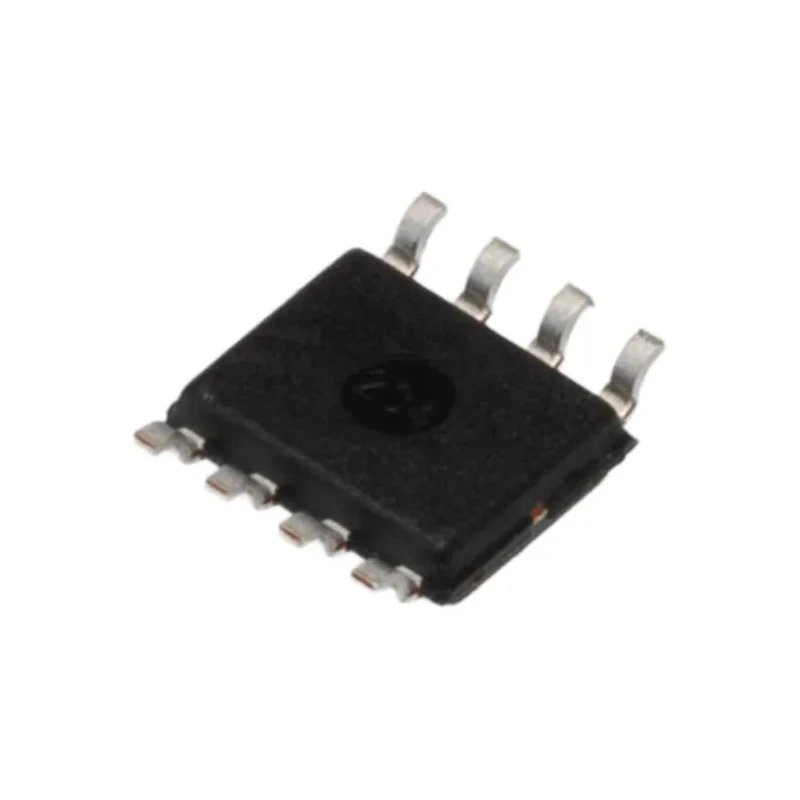

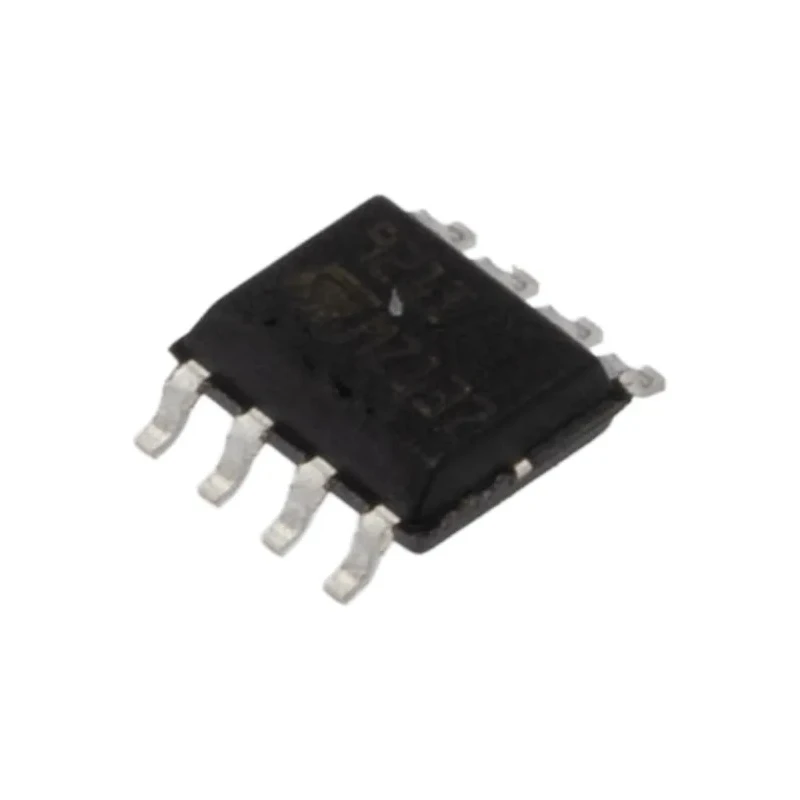

STMicroelectronics Operational Amplifier Rail-to-Rail, SOIC, 4 MHz, 80 mA Output, 8-Pin, 12V, Surface Mount TS921IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.1mm |
| Length | 9.8mm |
| Model | TS921IDT |
| Width | 7.1mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√ Hz |
| Series | TS921 |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
| ESD internal protection | 1.5 kV |
Key Features
- Single rail-to-rail BiCMOS operational amplifier suitable for industrial, audio, and instrumentation applications.
- Wide supply voltage range from 2.7V to 12V supports both low-voltage and high-voltage systems.
- Compact surface-mount SOIC-8 package ideal for modern PCB layouts.
- High gain bandwidth product of 4 MHz enables fast signal processing.
- Delivers up to 80 mA output current for driving low impedance loads.
- Ultra-low input noise of 9 nV/√Hz ensures high signal quality.
- Stable up to 500 pF capacitive loads with robust 1.5 kV ESD protection.
- Operates from -40°C to +125°C, allowing use in harsh industrial settings.
Product Description
The STMicroelectronics TS921IDT is a single rail-to-rail operational amplifier designed for demanding electronic applications that require high output drive, low noise, and precision performance in a compact form factor.
Packaged in an 8-pin SOIC for easy surface-mount integration, it operates within a broad supply voltage range from 2.7V to 12V. This flexibility makes it ideal for both battery-powered and high-voltage industrial systems. The device delivers a gain bandwidth product of 4 MHz and a slew rate of 1.3 V/μs, enabling high-speed signal processing and low distortion for high-quality audio and instrumentation circuits.
With a maximum output current of 80 mA, the TS921IDT can efficiently drive low impedance loads, including those used in audio amplifiers or sensor interfaces. Its rail-to-rail input and output architecture ensure maximum dynamic range, while very low input noise (9 nV/√Hz) and offset (5 mV) help maintain signal purity for precision measurement and communication systems.
The amplifier is engineered for reliability and robustness with latch-up immunity and ESD protection of 1.5 kV, safeguarding sensitive electronic implementations. The SOIC package measures just 9.8 mm by 7.1 mm with a height of 4.1 mm, allowing dense component layouts. Designed for stable capacitive loads up to 500 pF, it supports reliable operation even in complex circuit environments.
A temperature operating range from -40°C to +125°C ensures suitability across industrial, laboratory, and commercial environments. Internal BiCMOS architecture optimizes low power consumption and performance, making the TS921IDT ideal for modern electronics, manufacturing test setups, industrial control, audio processing, and signal conditioning.
Browse more Operational Amplifiers and advanced analog ICs from STMicroelectronics in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS921IDT has a gain bandwidth product of 4 MHz, enabling fast signal processing capabilities.
This model can deliver a maximum output current of 80 mA, making it suitable for driving low impedance loads.
It operates within a supply voltage range of 2.7V to 12V, accommodating both low-voltage and high-voltage systems.
The TS921IDT operates within a temperature range of -40°C to +125°C, allowing its use in harsh industrial environments.
This operational amplifier is packaged in an 8-pin SOIC surface-mount package, which is compact for modern PCB layouts.
It features an ultra-low input noise of 9 nV/√Hz, ensuring high signal quality for precision applications.
The operational amplifier has a slew rate of 1.3 V/μs, which supports high-speed signal processing.
The TS921IDT is designed to be stable with capacitive loads up to 500 pF, ensuring reliable operation in complex circuits.
The dimensions of this model are 9.8 mm in length, 7.1 mm in width, and 4.1 mm in height.
The input offset voltage for this operational amplifier is 5 mV, which helps maintain signal purity in precision applications.
This operational amplifier is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is suitable for industrial, audio, and instrumentation applications due to its high output drive and low noise characteristics.
