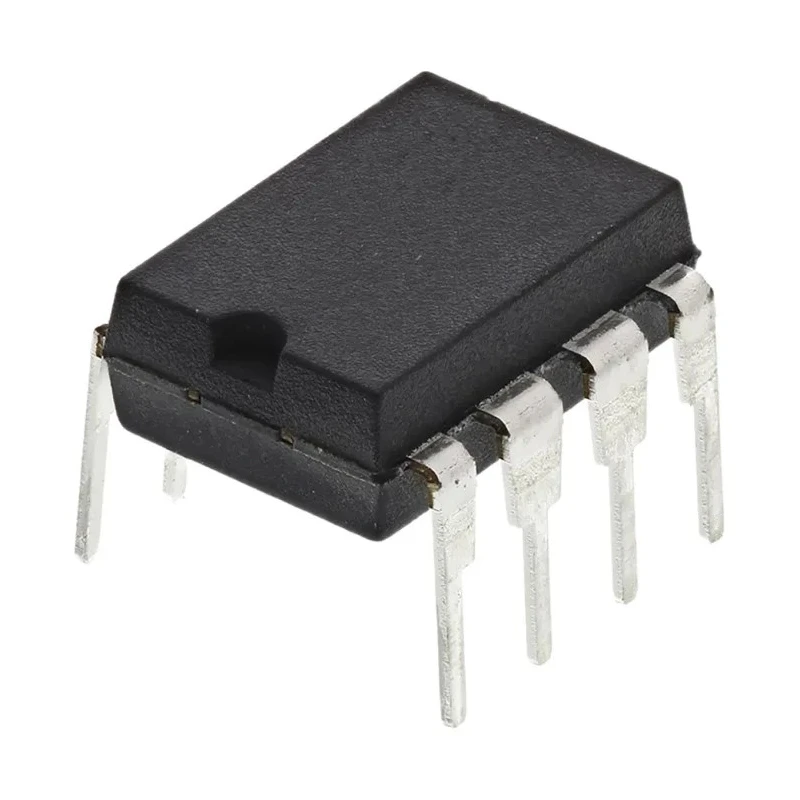

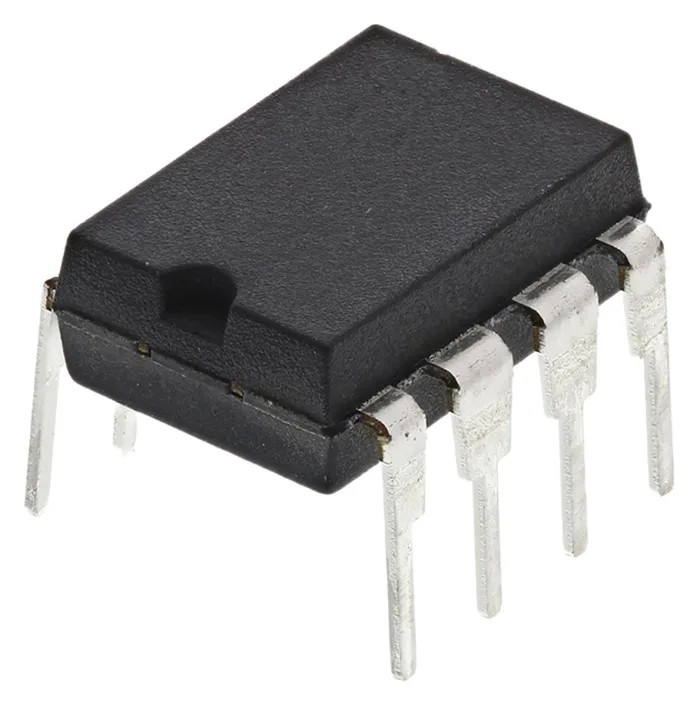

Texas Instruments Operational Amplifier 9.4 MHz Gain Bandwidth, 19V Max Supply, 8-Pin PDIP TLE2081CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | TLE2081CP |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TLE2081 |
| Output Current | 80mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 19V |
| Minimum Supply Voltage | 2.25V |
| GBP - Gain Bandwidth Product | 9.4MHz |
| Input Bias Current | 5 nA |
| Vos - Input Offset Voltage | 8 mV |
| Slew Rate | 38V/μs |
| Input Offset Current | 1.4 nA |
Key Features
- The device features a single channel with JFET input for low bias current.
- It operates over a wide voltage range from 2.25V to 19V.
- Offers a high slew rate of 38V/μs for fast signal processing.
- Input offset voltage is minimized to 8 mV for precision applications.
- Operating temperature ranges from 0°C to 70°C for reliable performance.
- Compact dimensions of 10.16mm length, 6.6mm width, and 4.57mm height.
- Output current capability of up to 80mA for driving loads.
- Complies with RoHS standards ensuring environmental safety.
Product Description
The Texas Instruments TLE2081CP is a high-performance Operational Amplifier designed for precise analog signal processing. It features a Gain Bandwidth Product of 9.4 MHz and supports a maximum supply voltage of 19V, packaged in an 8-pin PDIP form factor.
This device is part of the Excalibur TLE series of BiFET operational amplifiers that significantly improve upon earlier JFET input amplifiers, offering enhanced bandwidth and slew rates while maintaining low power consumption.
The single channel amplifier provides a low input bias current of 5 nA and an input offset voltage of only 8 mV, making it suitable for applications requiring high accuracy and low noise.
With a slew rate of 38 V/μs and output current of 80 mA, the TLE2081CP can drive a variety of loads effectively, ideal for industrial control systems, communication devices, and laboratory instrumentation.
The operational amplifier operates reliably within a temperature range of 0°C to 70°C, meeting RoHS compliance for environmental standards. The 8-pin PDIP package facilitates easy through-hole mounting and circuit integration.
Designed for low noise and high bandwidth applications. Operates with a supply voltage range from 2.25 V to 19 V. Input offset current is tightly controlled at 1.4 nA. Compact size benefits dense PCBs and embedded designs.
Compliance with automotive standards is not applicable for this model.
This Operational Amplifier is widely used across electronics manufacturing, laboratory equipment, and communication instrumentation industries. Its robust features enable enhanced application versatility from signal conditioning to analog computation.
EnvMart invites you to explore more electronic components and amplifiers optimized for both industrial and laboratory environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Gain Bandwidth Product of the TLE2081CP is 9.4 MHz.
This operational amplifier supports a maximum supply voltage of 19V.
It has an output current capability of up to 80mA.
The operating temperature range is from 0°C to 70°C.
This model is packaged in an 8-pin PDIP format, suitable for through-hole mounting.
The input offset voltage is minimized to 8 mV, making it suitable for precision applications.
It features a high slew rate of 38 V/μs, allowing for fast signal processing.
The input bias current is 5 nA, which is low for enhanced accuracy.
Yes, it complies with RoHS standards, ensuring environmental safety.
The dimensions are 10.16 mm in length, 6.6 mm in width, and 4.57 mm in height.
This operational amplifier is widely used in industrial control systems, communication devices, and laboratory instrumentation.
The input offset current is tightly controlled at 1.4 nA.
