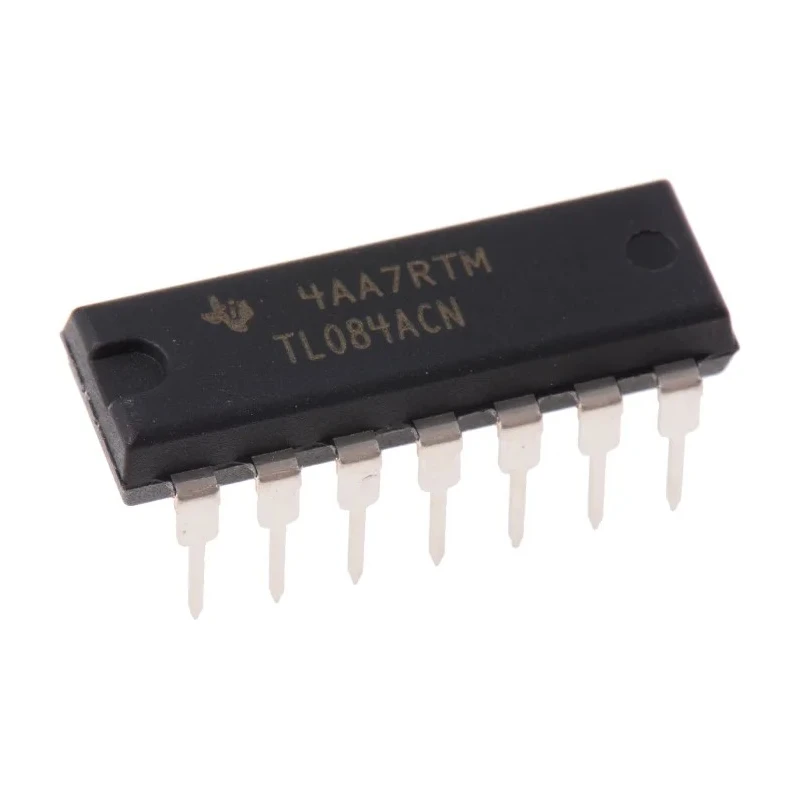

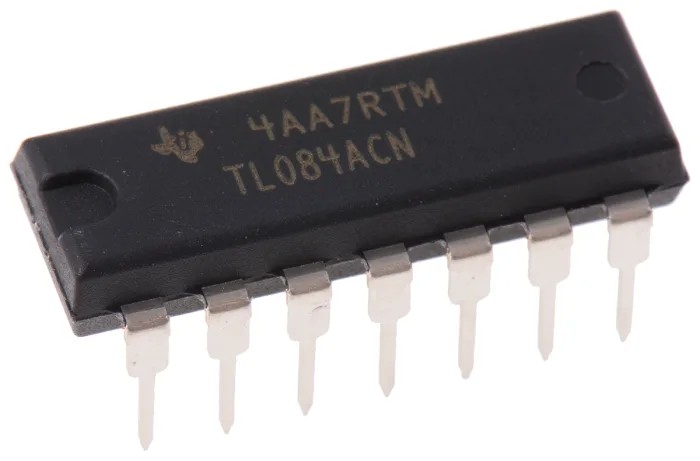

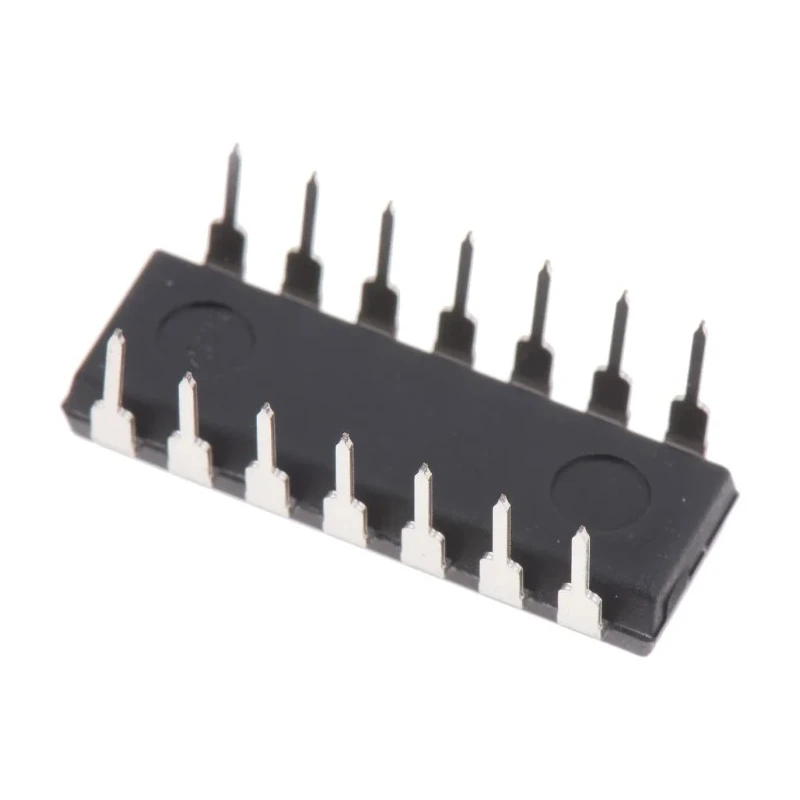

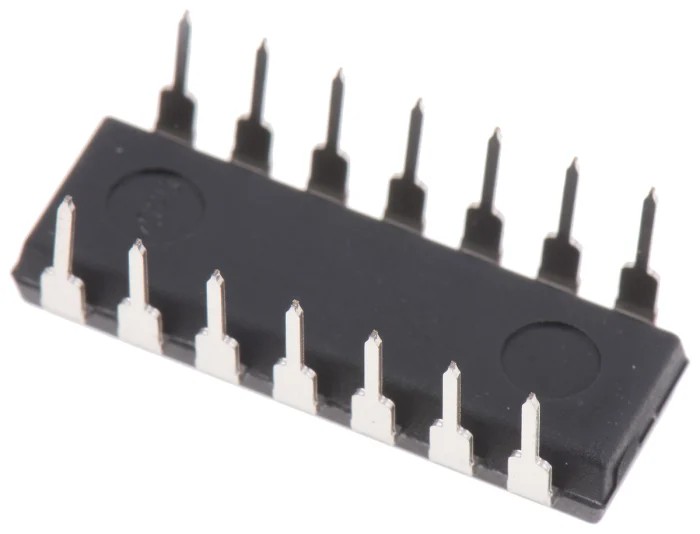

Texas Instruments Operational Amplifier 3 MHz 14-Pin 15V PDIP TL084ACN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084ACN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
| TL084CN STMicroelectronics, Op Amp, 4MHz, 14-Pin PDIPBrand | STMicroelectronics |
Key Features
- Offers a wide supply voltage range from ±5V to ±15V ensuring compatibility with various circuit designs.
- Features a low input bias current of 7 nA, reducing signal distortion and enhancing accuracy.
- Includes a high slew rate of 13 V/μs for rapid signal changes and enhanced performance.
- Supports up to 4 channels within a 14-pin through-hole PDIP package for versatile use.
- Operational temperature range from 0 to 70°C suitable for standard industrial environments.
- Low input offset voltage of 7.5 mV and low total harmonic distortion of 0.003% for high fidelity output.
- Complies with automotive standard AEC-Q100 for reliable operation in automotive applications.
- Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm for space-efficient circuit integration.
Product Description
Texas Instruments TL084ACN Operational Amplifier is a high-performance, quad-channel JFET input op amp from the TL070 and TL080 families. It offers a gain bandwidth product of 3 MHz with a low noise level of 18 nV/√Hz at 1 kHz, making it ideal for a wide range of audio and signal processing applications.
This device supports a wide supply voltage range of ±5 to ±15V and incorporates low input bias and offset currents, enabling high accuracy and minimal signal distortion. The high slew rate of 13 V/μs facilitates rapid response times, essential in dynamic industrial control and instrumentation environments.
The TL084ACN is housed in a 14-pin PDIP through-hole package, featuring four operational amplifier channels within a compact form factor measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height. It maintains reliable operation over a temperature range of 0°C to 70°C and meets automotive-grade standards (AEC-Q100), making it suitable for automotive and other demanding applications.
Key features include a low input offset voltage of 7.5 mV, low total harmonic distortion (0.003%), and an input bias current as low as 7 nA, which ensures clear and stable signal amplification. External offset adjustment and compensation are available with related single devices in the series.
Wide voltage supply range enhances flexibility in circuit design. Low noise and distortion support precision audio and instrumentation tasks. High slew rate improves signal processing speed. Compact quad-channel package conserves board space and increases efficiency.
Designed for industrial, automotive, laboratory, and manufacturing applications.
This Operational Amplifier is an excellent choice for engineers seeking reliable, high-precision analog performance with broad compatibility in electronic circuits. The product is part of Texas Instruments' respected TL084 series and is suitable for integration into a variety of commercial and industrial equipment.
Explore the Texas Instruments range on EnvMart for comprehensive solutions in semiconductor amplifiers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084ACN has a gain bandwidth product of 3 MHz, making it suitable for a variety of audio and signal processing applications.
This model supports a wide supply voltage range from ±5V to ±15V, allowing compatibility with various circuit designs.
The input bias current for the TL084ACN is as low as 7 nA, which helps reduce signal distortion and enhances accuracy.
The TL084ACN includes four operational amplifier channels within its 14-pin PDIP package.
The TL084ACN measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, allowing for space-efficient circuit integration.
This model operates within a temperature range of 0°C to 70°C, suitable for standard industrial environments.
The TL084ACN features a high slew rate of 13 V/μs, facilitating rapid signal changes and enhancing performance.
The input offset voltage of the TL084ACN is 7.5 mV, contributing to its high fidelity output.
This model has a low total harmonic distortion of 0.003%, which supports high-fidelity audio and instrumentation tasks.
The TL084ACN complies with the automotive standard AEC-Q100, ensuring reliable operation in automotive applications.
The TL084ACN is housed in a 14-pin PDIP through-hole package, suitable for various circuit designs.
The operational amplifier has a low noise level of 18 nV/√Hz at 1 kHz, making it ideal for precision applications.
