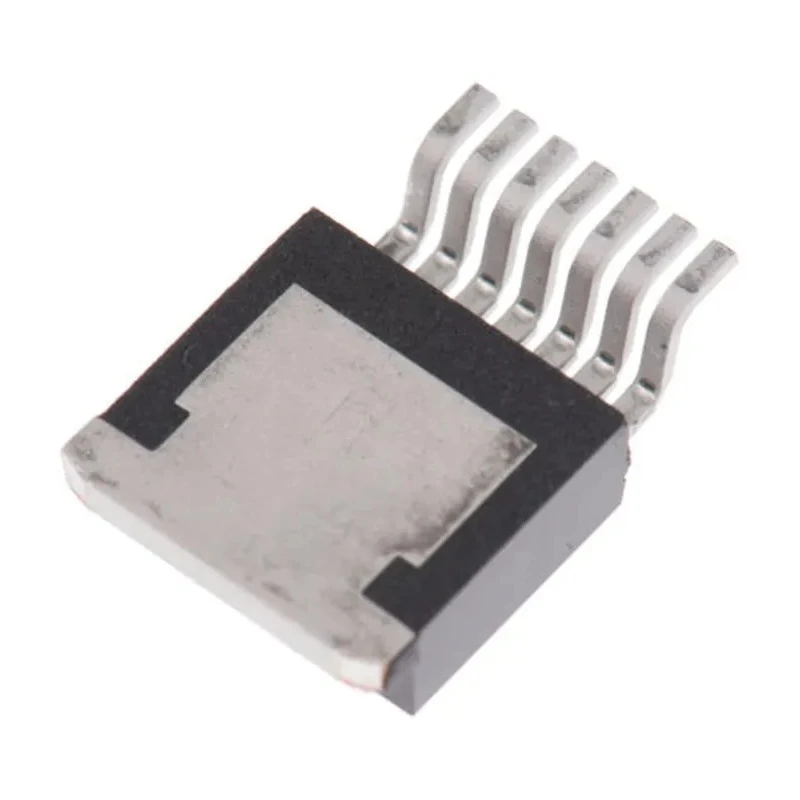

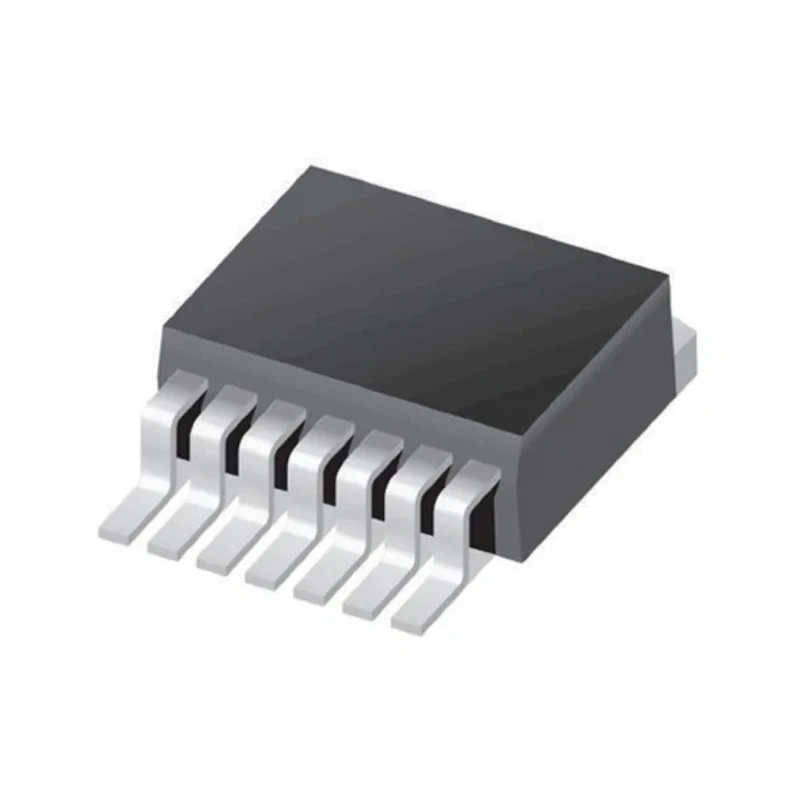

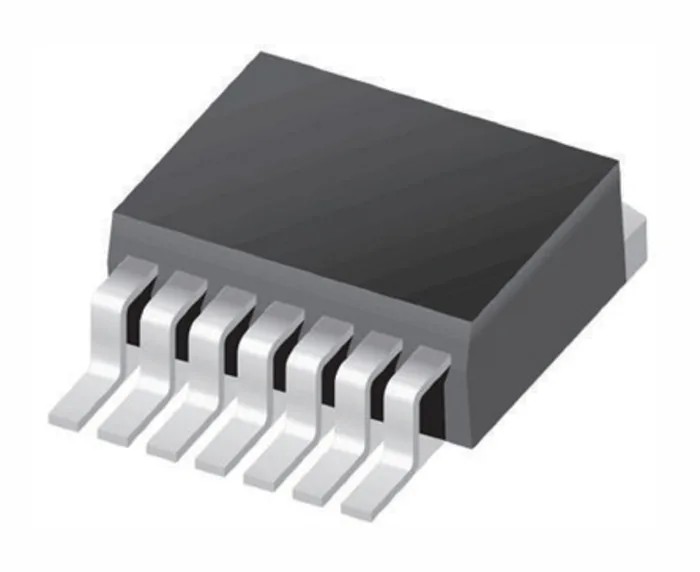

Texas Instruments Operational Amplifier 3 MHz 8-Pin 30V D2PAK OPA551FAKTWT

Texas Instruments OPA551FAKTWT is a high voltage and high current operational amplifier featuring a bandwidth of 3 MHz and packaged in an 8-pin TO-263 D2PAK surface mount format. It is specifically designed to handle demanding power applications requiring robust output current capability and wide operating voltage ranges.

This amplifier supports a supply voltage from 4V up to 30V, providing flexibility for various industrial and electronic system designs. Its fast slew rate of 15 V/μs facilitates rapid signal changes, making it suitable for servo amplifiers, motor speed controllers, bridge amplifiers, power supplies, and instrumentation systems.

The device maintains excellent input offset voltage of ±5 mV and input bias current of ±100 pA, which ensures stable and accurate analog performance. It operates reliably within a temperature range from -40°C to 125°C, making it well-suited for industrial environments.

Measuring 10.1 mm in length, 8.89 mm in width, and 4.44 mm in height, this surface mount component enables compact, efficient PCB designs. It meets RoHS and REACH compliance for reduced hazardous substances.

This single channel operational amplifier is ideal for applications that require driving low impedance and challenging loads, delivering efficient power output up to 200 mA. Typical usage scenarios include driving MOSFETs and power transistors, implementing bridge amplifiers, industrial servo motor controls, and precision analog signal conditioning in instrumentation and control systems.

This amplifier supports a maximum supply voltage of 30V and a minimum supply voltage of 4V. It offers a slew rate of 15 V/μs enabling fast signal response. The input offset voltage is ±5 mV and input bias current is ±100 pA.

The device operates reliably from -40°C to 125°C operating temperature range. Output current capability reaches up to 200 mA, suitable for demanding load drives. Compact dimensions of 10.1mm length, 8.89mm width, and 4.44mm height in a surface mount package.

Complies with RoHS and REACH standards ensuring environmental safety. Single channel Operational Amplifier tailored for power applications like motor speed control and servo amplifiers. Explore more amplifiers and electronic components at EnvMart for industrial and precision electronic design needs.
