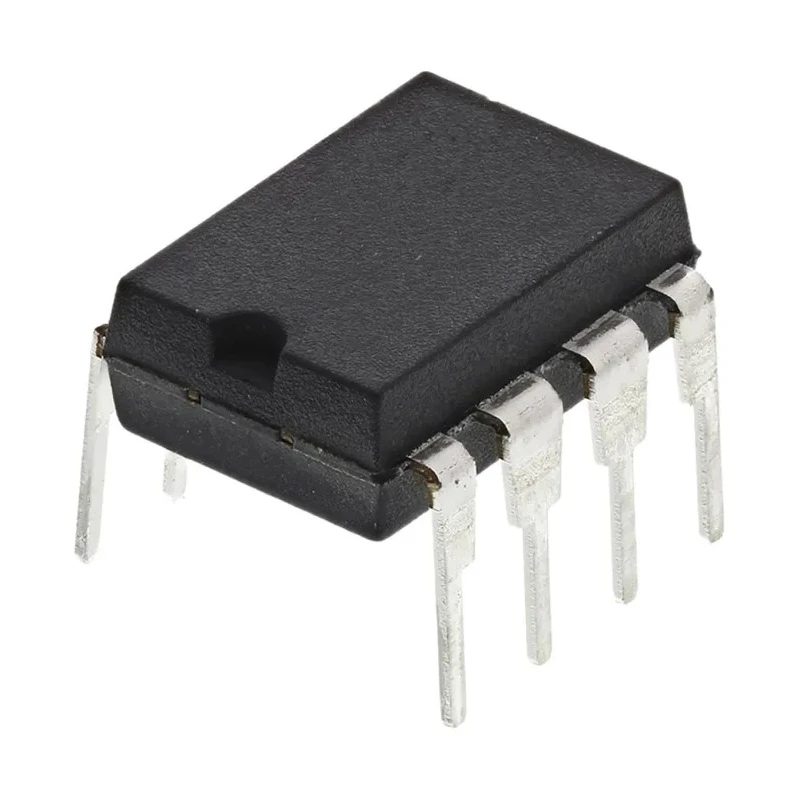

Texas Instruments Operational Amplifier Dual Channel 1.8 MHz 8-Pin PDIP TLE2062IP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TLE2062IP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLE2062 |
| Output Current | 80mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3.5V |
| GBP - Gain Bandwidth Product | 1.8MHz |
| Input Bias Current | 4 nA |
| Vos - Input Offset Voltage | 6.3 mV |
| Slew Rate | 3.4V/μs |
| Input Offset Current | 2 nA |
Key Features
- Features JFET input for low noise and low power consumption.
- Gain bandwidth product of 1.8 MHz suitable for a wide range of signal processing applications.
- Operates on supply voltages from 3.5 V up to 18 V.
- Slew rate of 3.4 V/μs offering rapid response times.
- Input offset voltage of 6.3 mV and low bias currents ensure precision.
- Operating temperature range from -40°C to 85°C for industrial environments.
- Compact 8-pin PDIP package with dimensions 9.81 mm length, 6.35 mm width, and 4.57 mm height.
- Output current capability of 80 mA supports driving diverse loads.
Product Description
Texas Instruments TLE2062IP is a dual channel operational amplifier featuring a 1.8 MHz gain bandwidth product and housed in an 8-pin PDIP package. This JFET input operational amplifier provides improved performance with low noise and low power consumption, making it well-suited for a broad range of electronic signaling and amplification tasks.
The device supports a wide supply voltage range from 3.5 V to a maximum of 18 V, enabling use in various circuit designs requiring different power levels. It offers a slew rate of 3.4 V/μs for fast output response and minimal signal distortion, critical for precise analog processing.
With an input offset voltage of 6.3 mV and extremely low input bias current of 4 nA, the TLE2062IP delivers accuracy essential for sensitive instrumentation and control applications. It sustains reliable operation across industrial temperature ranges from -40°C to 85°C.
The package dimensions are compact at 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating easy insertion using through-hole mount techniques on printed circuit boards.
JFET input for low noise and power. Gain bandwidth of 1.8 MHz for versatile signal amplification. Wide supply voltage range of 3.5 V to 18 V. Fast slew rate of 3.4 V/μs minimizes distortion. Low input offset voltage and bias currents improve precision.
Industrial operating temperature range (-40°C to 85°C). Compact 8-pin PDIP package for through hole mounting. Output current capability of 80 mA for robust drive.
This operational amplifier is ideal for industrial, laboratory, instrumentation, and general electronics applications requiring stable dual-channel amplification with high bandwidth and accuracy. Its adherence to RoHS standards ensures compliance with environmental regulations.
Explore the Electronics & Electricals category at EnvMart for more advanced Operational Amplifiers and semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.8 MHz, making it suitable for a wide range of signal processing applications.
It operates on supply voltages ranging from 3.5 V to a maximum of 18 V, allowing for versatility in various circuit designs.
This model has an output current capability of 80 mA, which supports driving diverse loads in different applications.
The operational amplifier operates reliably across an industrial temperature range of -40°C to 85°C.
The package dimensions are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating easy insertion into printed circuit boards.
The slew rate of this operational amplifier is 3.4 V/μs, which minimizes distortion and allows for fast output response.
The input offset voltage is 6.3 mV, which contributes to its accuracy in sensitive applications.
It features a JFET input, which provides low noise and low power consumption, enhancing its performance.
The input bias current is 4 nA, ensuring precision for sensitive instrumentation and control tasks.
This operational amplifier uses a through-hole mounting type, suitable for various PCB applications.
Yes, it adheres to RoHS standards, ensuring compliance with environmental regulations.
This operational amplifier features two channels, allowing for dual-channel amplification.
