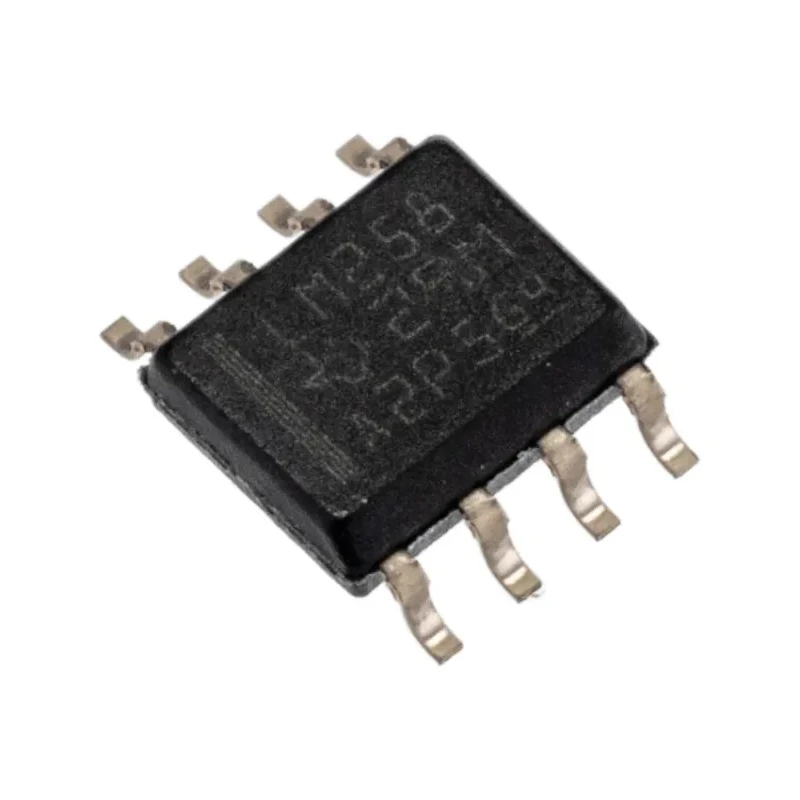

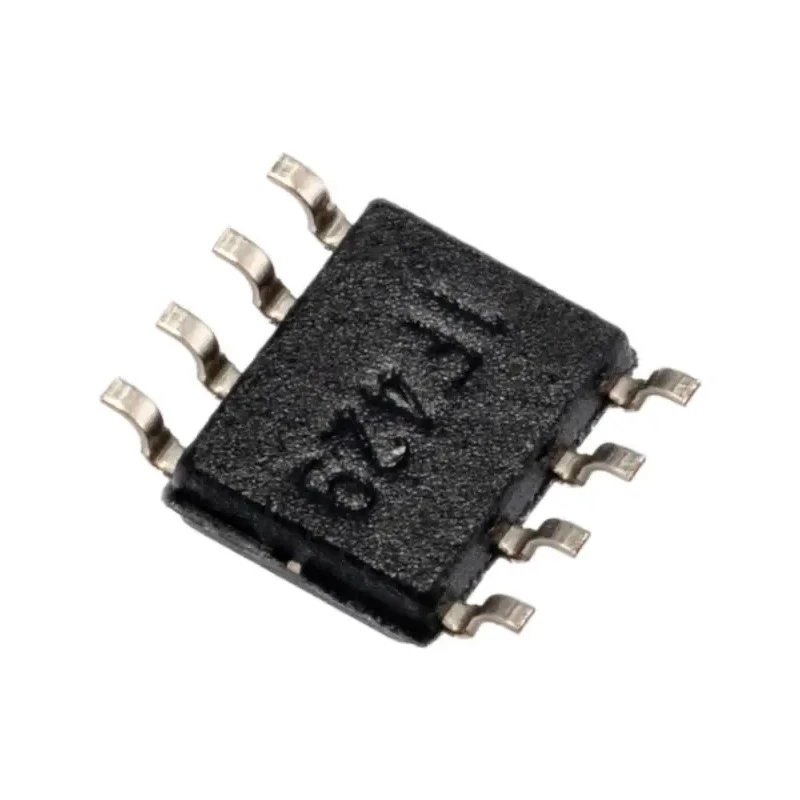

Texas Instruments Operational Amplifier 700 kHz 8-Pin SOIC 5V to 30V LM258D

Texas Instruments LM258D is a dual-channel operational amplifier with a gain bandwidth product of 700 kHz, housed in an 8-Pin SOIC surface mount package. It operates efficiently across a wide supply voltage range from 5V to 30V, making it suitable for various electronic circuit designs requiring moderate frequency amplification.

This amplifier is widely used in general-purpose analog signal processing applications in industrial, laboratory, electronics manufacturing, and instrumentation domains. The device features low input bias and offset currents, resulting in precise amplification with minimal signal distortion.

With a slew rate of 0.3 V/μs and output current capacity of -10mA, LM258D supports stable and reliable signal output in systems requiring moderate speed response. The operating temperature range from -25°C to 85°C ensures robust performance in diverse environmental conditions.

Its compact form factor (4.9mm length, 3.91mm width, 1.58mm height) allows integration into space-constrained printed circuit boards. The SOIC package facilitates cost-effective surface mount assembly for high-volume production.

Dual general purpose operational amplifier. Gain bandwidth product of 700 kHz. 8-Pin SOIC surface mount package. Supply voltage range of 5V to 30V. Low input bias and offset currents. Operating temperature: -25°C to 85°C.

Slew rate: 0.3 V/μs. Output current: up to -10mA. Compact dimensions for PCB integration. Designed for non-specialized amplifier applications.

This product is ideal for use in industrial electronic circuits, laboratory instruments, and general electronics manufacturing where reliable and precise analog amplification is required. Explore more Operational Amplifiers and semiconductor components on EnvMart to optimize your design solutions.
