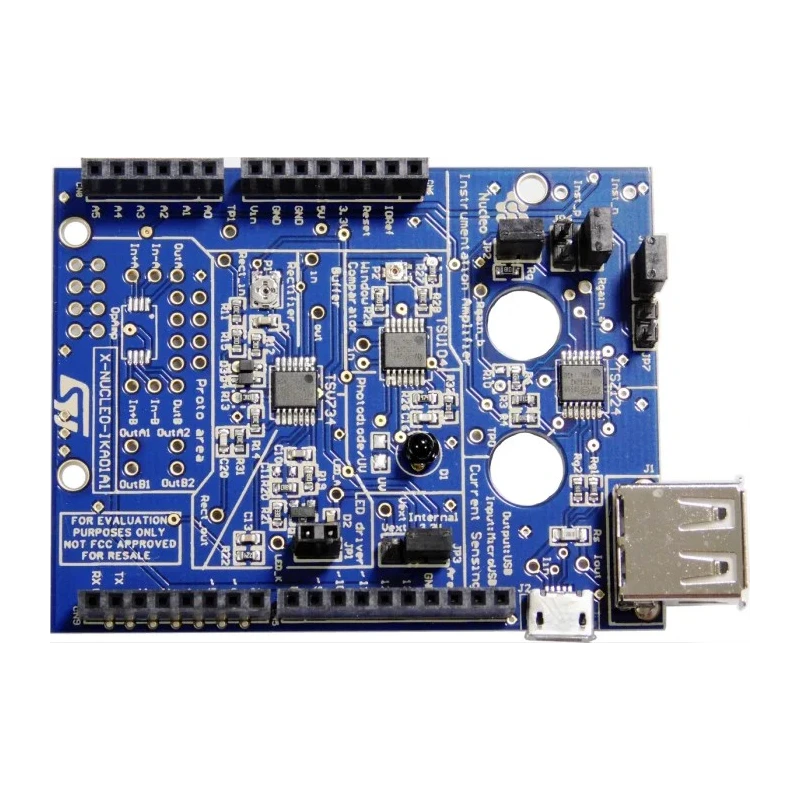

STMicroelectronics Multi-Functional Operational Amplifier Expansion Board for STM32 Nucleo with Arduino UNO X-NUCLEO-IKA01A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IKA01A1 |
| Interfaces | USB |
| For Use With | Arduino UNO Connector, STM32 Nucleo Boards, Micro-USB Port Devices |
| Kit Classification | Expansion Board |
| Featured Device | TSZ124 |
| Kit Name | X-NUCLEO |
| Analogue Function | Operational Amplifier |
Key Features
- Features STMicroelectronics TSZ124 high accuracy zero drift micropower 5 V operational amplifier.
- Supports seven predefined configurations including instrumentation amplifier and current sensing.
- Includes TSU104 nanopower and TSV734 micropower operational amplifiers for mobile applications.
- Compatible with Arduino UNO R3 connectors and powered through Arduino connectors.
- Offers a prototyping area and comprehensive firmware library (X-CUBE-ANALOG1) for easy development.
- Ideal for sensor interfaces, battery-powered devices, and analogue front-end applications.
- Supports current measurements via Micro USB port devices.
Product Description
STMicroelectronics X-NUCLEO-IKA01A1 is a multi-functional operational amplifier expansion board designed for STM32 Nucleo development boards with Arduino UNO connectors. It integrates the TSZ124 high accuracy zero drift micropower 5 V operational amplifier, making it suitable for precise analogue signal conditioning applications.
The board supports seven predefined configurations including instrumentation amplifier structures, current sensing with or without USB, photodiode and ultraviolet (UV) current sensing, buffer, full wave rectifier, constant current LED driver, and window comparator. This versatility allows implementation in various analogue front-end (AFE) tasks for sensor interfaces and portable, battery-powered equipment.
In addition to the TSZ124, the expansion board includes a TSU104 nanopower op-amp and a TSV734 micropower op-amp tailored for mobile and low power applications. The connectors are fully compatible with Arduino UNO R3 standards allowing easy integration and powering via the Arduino connectors.
The prototyping area on the board facilitates custom analogue designs, while the free X-CUBE-ANALOG1 firmware package provides comprehensive development support. This makes the X-NUCLEO-IKA01A1 ideal for engineers and developers in industrial, laboratory, embedded systems, and educational applications requiring precision analogue signal conditioning.
The board is suitable for embedded and sensor-based applications involving current measurement, signal amplification, and LED driving, making it a compact yet powerful tool for analogue development on STM32 Nucleo platforms.
Features STMicroelectronics TSZ124 high accuracy zero drift operational amplifier. Supports multiple analogue configurations including instrumentation amplifier structure. Includes nanopower TSU104 and micropower TSV734 op-amps for versatile applications.
Compatible and powered through Arduino UNO connectors for easy integration. Offers a prototyping area for user-defined analogue circuits and functions. Comes with free firmware library X-CUBE-ANALOG1 for development support.
Designed for sensor interfaces, battery-powered portable devices, and current sensing. Explore more Operational Amplifiers and development boards at EnvMart for advanced electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary operational amplifier featured in this expansion board is the TSZ124, which is a high accuracy zero drift micropower 5 V operational amplifier.
It supports seven predefined configurations, including instrumentation amplifier structures, current sensing with or without USB, photodiode sensing, buffer, full wave rectifier, constant current LED driver, and window comparator.
This model is compatible with Arduino UNO connectors and STM32 Nucleo boards, and it can also interface with Micro-USB port devices.
In addition to the TSZ124, the board includes a TSU104 nanopower operational amplifier and a TSV734 micropower operational amplifier for versatile applications.
The expansion board is powered through the Arduino connectors, making it easy to integrate with compatible devices.
The prototyping area allows users to create custom analogue designs, facilitating user-defined analogue circuits and functions.
The board comes with the free X-CUBE-ANALOG1 firmware library, which provides comprehensive development support for users.
It is designed for sensor interfaces, battery-powered portable devices, and current sensing applications, making it suitable for various analogue front-end tasks.
The country of origin for this expansion board is India.
The board provides a USB interface for connectivity with other devices.
This product is classified as an expansion board, specifically designed for use with STM32 Nucleo development boards.
The model number of this operational amplifier expansion board is X-NUCLEO-IKA01A1.
