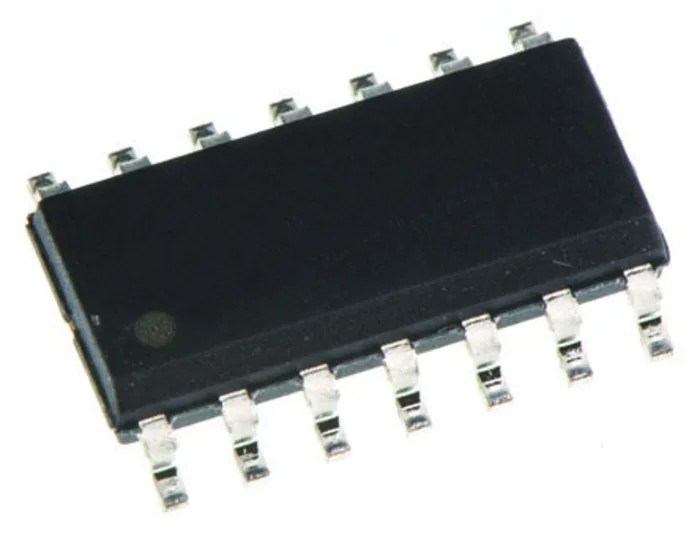

Texas Instruments Operational Amplifier 3 MHz, 14-Pin SOIC Surface Mount TL084IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | TL084IDR |
| Width | 3.91mm |
| Mount Type | Surface |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Low input bias currents ideal for minimizing circuit loading effects.
- Wide supply voltage range from ±5 to ±15 volts.
- High slew rate of 13 V/µs facilitating rapid signal changes.
- Low noise characteristics with 18 nV/√Hz typical at 1 kHz for high fidelity operation.
- Low total harmonic distortion of 0.003% for distortion-free amplification.
- Operating temperature range from -40°C up to 85°C for robust performance.
- JFET input stage from TL070 and TL080 families ensures high input impedance.
- Includes offset adjustment and external compensation options available in related models.
Product Description
The Texas Instruments TL084IDR is a high-performance operational amplifier known for its JFET input stage that provides low input bias currents and excellent noise performance. This 14-pin SOIC surface mount device has a gain bandwidth product of 3 MHz and operates over a wide supply voltage range from ±5 to ±15 volts, making it suitable for diverse electronics applications.
This amplifier features a high slew rate of 13 V/µs and low total harmonic distortion of 0.003%, ensuring accurate and fast signal amplification with minimal distortion. Its operating temperature range from -40°C to 85°C allows it to function reliably in demanding environments.
The TL084IDR includes offset adjustment capabilities and optionally supports external compensation with similar model devices. Automotive-grade AEC-Q100 certification underlines its quality and suitability for automotive electronic systems.
With compact physical dimensions (1.58 mm height, 3.91 mm width, and 8.65 mm length), the device is well-suited for dense PCB layouts requiring surface mounted components. Low input bias and offset currents for precision signal processing.
Wide supply voltage acceptance supports varied power designs. High slew rate ensures excellent transient response. Low noise and distortion optimize audio and instrumentation applications. Compliance with automotive standards for reliability.
Compact SOIC package for space-efficient circuit design. Applicable in industrial, automotive, audio, and signal processing domains.
This Operational Amplifier is a versatile component extensively used in industrial control systems, signal conditioning, instrumentation, and audio electronics. Its robust specifications and reliable performance make it a preferred choice for designers and engineers.
Discover more electronic components and amplifiers at EnvMart to enhance your project designs and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, allowing for effective signal amplification across a range of frequencies.
The TL084IDR operates reliably within a temperature range of -40°C to 85°C, making it suitable for various demanding environments.
This operational amplifier supports a wide supply voltage range from ±5 to ±15 volts, accommodating various power designs.
The dimensions of this model are 1.58 mm in height, 3.91 mm in width, and 8.65 mm in length, making it compact for dense PCB layouts.
The slew rate of this operational amplifier is 13 V/µs, which facilitates rapid signal changes and improves transient response.
This operational amplifier features 4 channels, allowing for multiple signal processing applications.
The input bias current for this model is 20 nA, which helps minimize circuit loading effects during operation.
The total harmonic distortion of this operational amplifier is 0.003%, ensuring distortion-free amplification for high fidelity applications.
Yes, the TL084IDR includes offset adjustment capabilities, allowing for precise signal processing.
This operational amplifier is packaged in a 14-pin SOIC surface mount format, suitable for compact circuit designs.
The TL084IDR is compliant with the automotive standard AEC-Q100, indicating its suitability for automotive electronic systems.
The input offset voltage for this operational amplifier is 9 mV, which is beneficial for precision applications.
