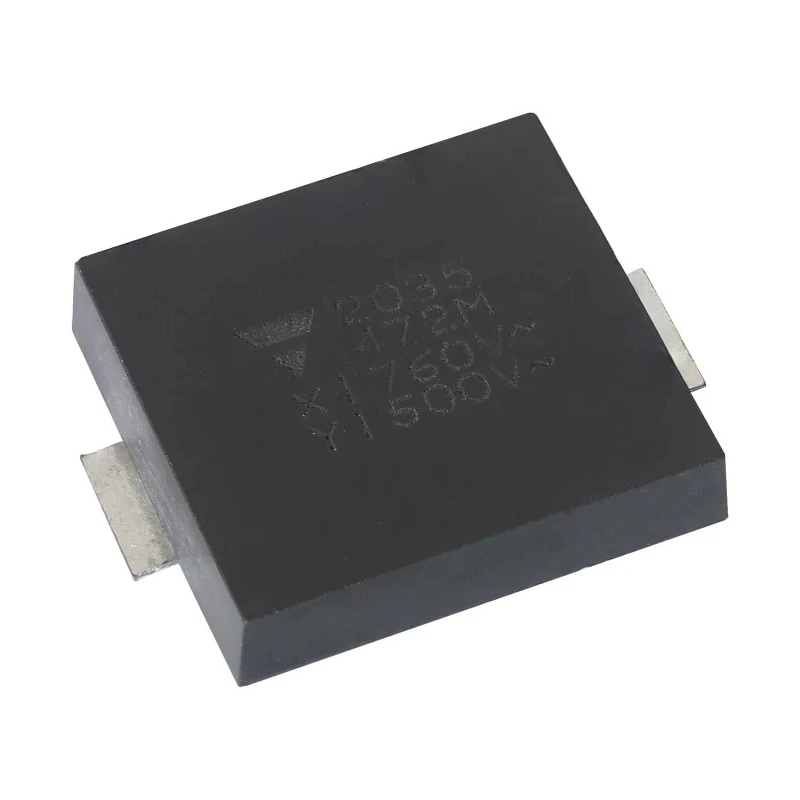

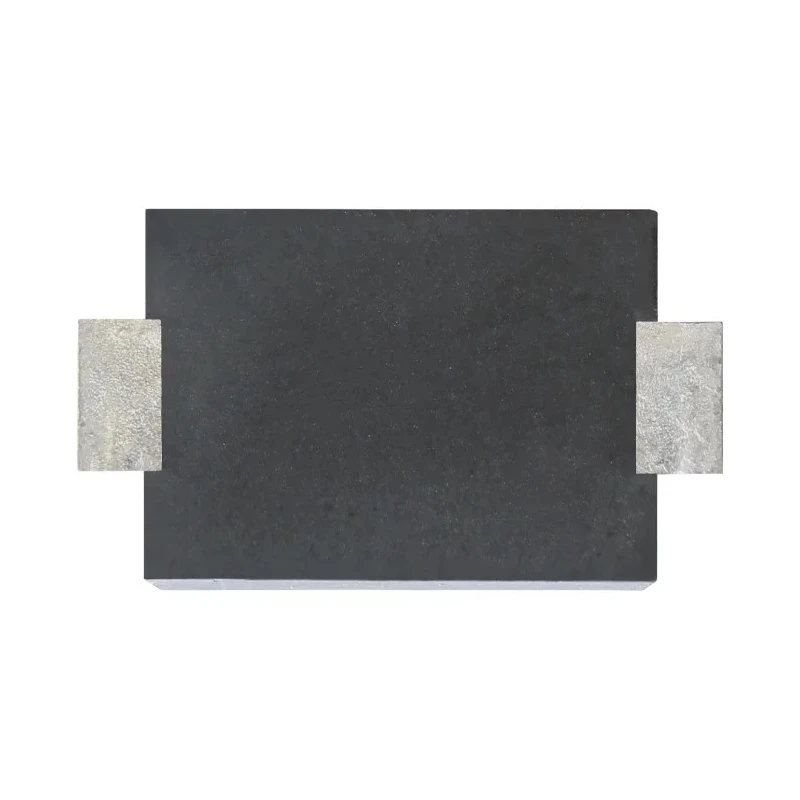

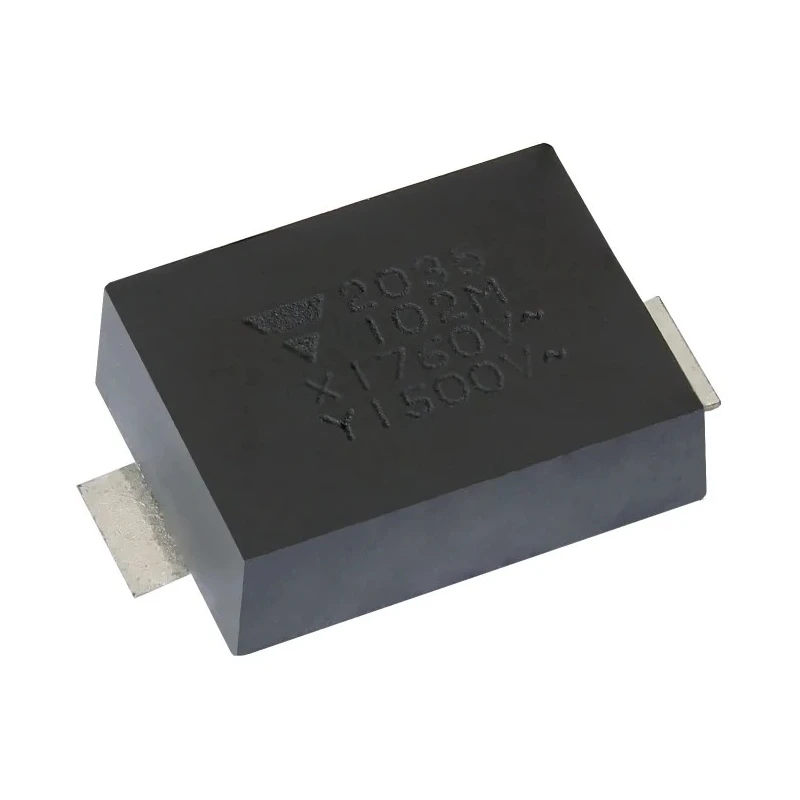

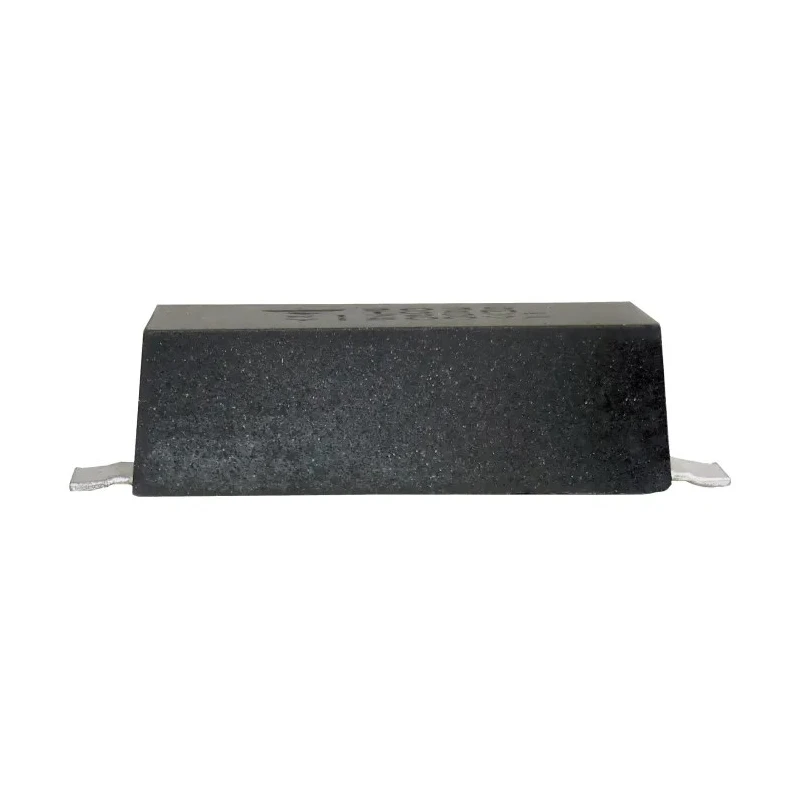

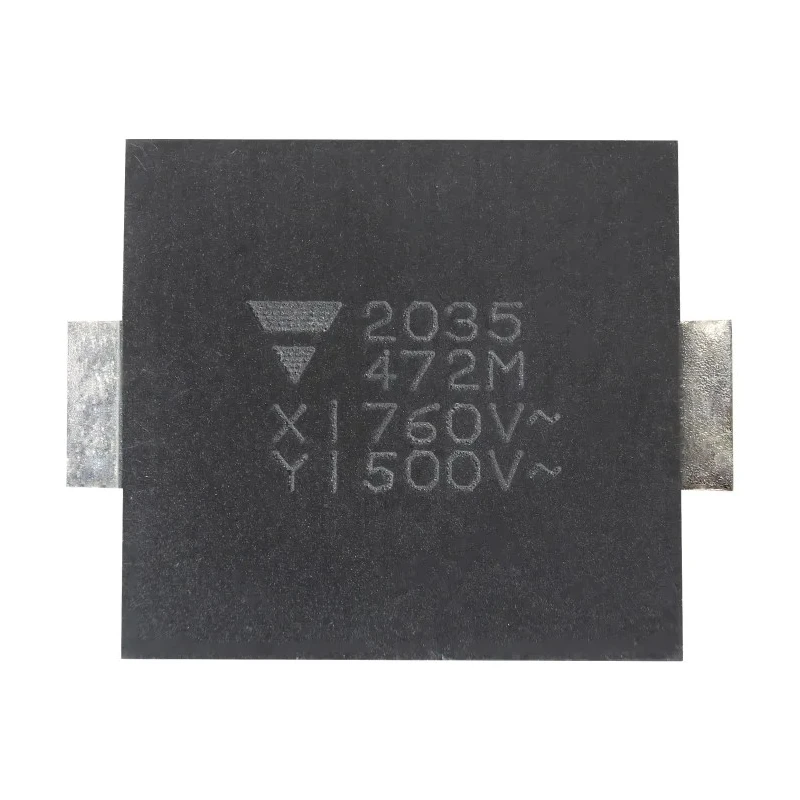

Vishay Single Layer Ceramic Capacitor 3.3 nF 760V AC ±20% Y5U Dielectric, Surface Mount Disc, 125°C Max SMDY1332MY5UDR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 760V ac |
| Brand | Vishay |
| Length | 19.2mm |
| Model | SMDY1332MY5UDR |
| Packaging | Bulk |
| Mount Type | Surface |
| Series | SMD Y1 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 3.3nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Surface Mount |
| Dissipation Factor | 2.5% |
| Package/Case | Disc |
| Dielectric | Y5U |
| High moisture sensitive level | MSL1 |
Key Features
- Capacitance value of 3.3 nanofarads with ±20% tolerance ensuring precise performance.
- Rated for maximum operating temperature up to 125 °C suitable for high temperature environments.
- Uses Y5U dielectric material providing reliable AC line rated performance.
- Disc shaped surface mount device with 19.2 mm length optimized for PCB integration.
- Complies with multiple international standards including IEC 60384-14 and RoHS.
- Equipped with flame retardant epoxy resin encapsulation meeting UL 94 V-0 standards for safety.
- High moisture sensitivity level MSL1 ensuring extended shelf life and reliability.
- Dissipation factor of 2.5% to minimize energy losses in circuits.
Product Description
Vishay SMDY1332MY5UDR is a single layer ceramic capacitor featuring a capacitance of 3.3 nF and an AC voltage rating of 760 V. This surface mount disc capacitor utilizes Y5U dielectric material, delivering dependable performance for AC line applications up to a maximum operating temperature of 125 °C.
The capacitor employs a ceramic disc construction copper plated on both sides, encapsulated in flame retardant epoxy resin compliant with UL 94 V-0 for enhanced safety in electrical systems.
This component is built to meet rigorous standards such as IEC 60384-14 (4th edition), CSA, DIN EN, UL certifications, and is RoHS compliant, making it suitable for industrial, commercial, and manufacturing applications where safety and durability are paramount.
Key technical attributes include a ±20% capacitance tolerance, surface mount packaging type, dissipation factor of 2.5%, and a high moisture sensitive level (MSL1) for extended reliability in humid environments.
Capacitance value of 3.3 nanofarads with ±20% tolerance ensuring precise performance. Rated for maximum operating temperature up to 125 °C suitable for high temperature environments. Uses Y5U dielectric material providing reliable AC line rated performance.
Disc shaped surface mount device with 19.2 mm length optimized for PCB integration. Complies with multiple international standards including IEC 60384-14 and RoHS. Equipped with flame retardant epoxy resin encapsulation meeting UL 94 V-0 standards for safety.
High moisture sensitivity level MSL1 ensuring extended shelf life and reliability. Dissipation factor of 2.5% to minimize energy losses in circuits.
This capacitor suits a variety of industrial and manufacturing applications especially in electronics, power supply conditioners, and electrical control panels where reliability under AC working voltage is critical.
Browse related capacitors and electronic components at EnvMart to find complementary parts and upgrades for your projects.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 3.3 nanofarads (nF) with a tolerance of ±20%.
The maximum operating temperature for this capacitor is 125 °C, making it suitable for high temperature environments.
It utilizes Y5U dielectric material, which provides reliable performance for AC line applications.
This capacitor is rated for an AC voltage of 760 volts.
The dissipation factor is 2.5%, which helps minimize energy losses in circuits.
The capacitor has a length of 19.2 mm and is designed as a disc-shaped surface mount device.
It has a high moisture sensitivity level of MSL1, ensuring extended reliability in humid environments.
This model is packaged in bulk for distribution.
It complies with multiple international standards including IEC 60384-14, RoHS, and UL certifications.
The minimum operating temperature is -55 °C.
It features surface mount terminals for easy integration onto PCBs.
This capacitor is suitable for various industrial and manufacturing applications, particularly in electronics, power supply conditioners, and electrical control panels.
