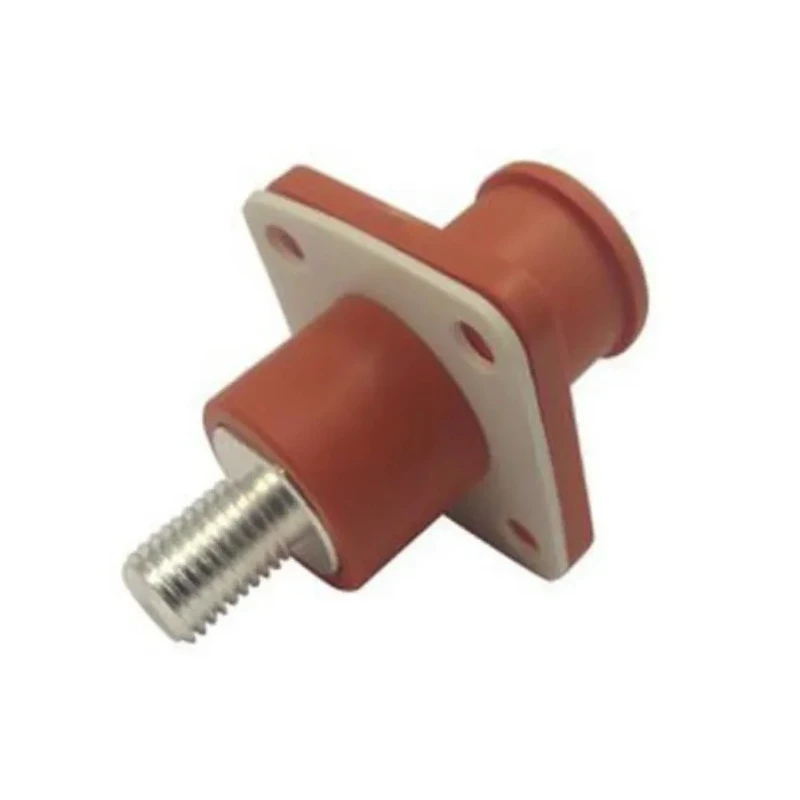

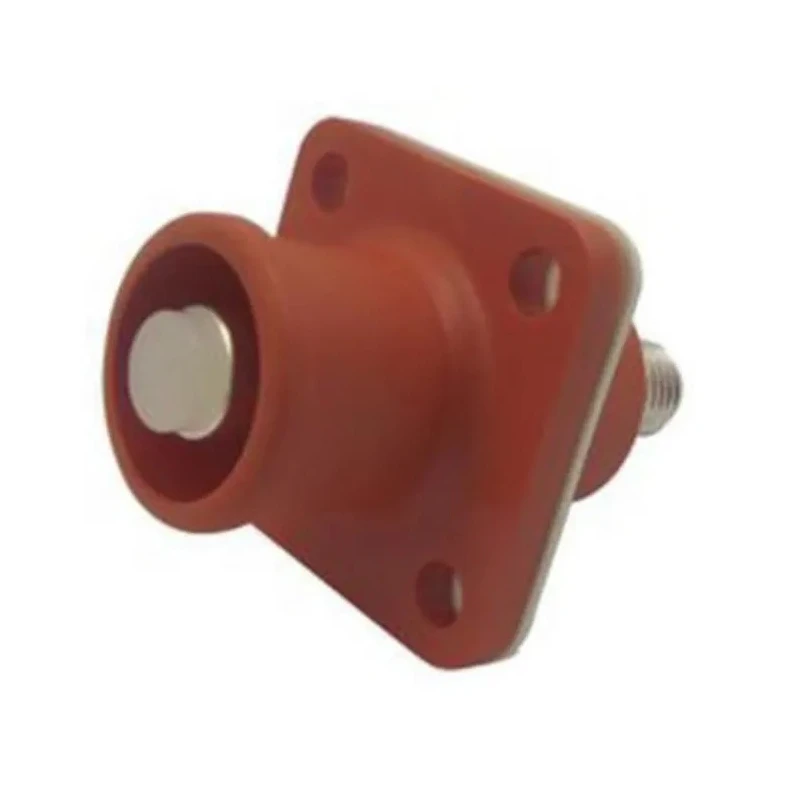

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 300A, 1000V, Panel Mount, IP67 SLPIRCTPSB0 / C10-730191-1200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Current | 300A |
| Height | 35mm |
| Model | SLPIRCTPSB0 / C10-730191-1200 |
| Depth | 55.9mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 35mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70, 85mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector is part of the SURLOK PLUS RADSOK series ensuring secure and high conductivity connections.
- It features a robust thermoplastic housing with UL 94-V0 flammability rating and IP67 protection for harsh environments.
- Designed for panel mount installation with screw termination and a straight orientation for easy integration.
- Suitable for wire sizes of 70 to 85 mm², with a 10.3mm pin diameter and copper alloy contacts.
- The connector supports extreme temperature ranges from -40°C to 125°C, ideal for electric vehicle and heavy equipment use.
- Its spring locking and keyed design prevent mismating, ensuring reliable electrical connections.
- Applications include electric vehicles, rail mass transit, process control, medical equipment, and battery management systems.
- The connector ensures a touch-proof design for user safety.
Product Description
Amphenol Industrial SLPIRCTPSB0 / C10-730191-1200 SURLOK PLUS RADSOK EV Connector Female is engineered for high current and voltage applications up to 300A and 1000V. This slim and durable connector is a panel mount type designed with a high-grade thermoplastic housing providing excellent protection against dust and water ingress with an IP67 rating.
The connector incorporates advanced R4 RADSOK technology, offering a high tensile strength connection and a large conductive surface area, ensuring efficient current transmission with minimal resistance. It supports wire sizes ranging from 70 to 85 mm² with screw termination to guarantee secure electrical contact.
With a flammability rating of UL 94-V0, this black-colored connector is both flame retardant and resistant to environmental stresses. The contact gender is male, while the connector gender is female, designed for straight orientation and panel mounting applications.
Operating temperatures range from -40°C to 125°C, making it well-suited for harsh industrial environments like electric vehicle systems, rail mass transit, process control, medical devices, and battery management systems.
The connector is keyed to prevent mismating and features spring locking for easy and reliable field installation. Its 10.3mm pin diameter and copper alloy contacts contribute to its durability and performance in demanding electrical applications.
Amphenol's SURLOK PLUS series delivers a high-quality, efficient solution for industrial, automotive, and energy storage power connections, emphasizing safety, reliability, and sustainability.
The connector ensures a touch-proof design for user safety. Its spring locking mechanism secures connections firmly. Rated for IP67 enabling use in rugged environments. Flammability rated UL 94-V0 for enhanced fire safety.
Compatible with SurLok 1-Position Plug for system integration. Explore more Amphenol Industrial EV Connectors for your electrical component needs at EnvMart.
