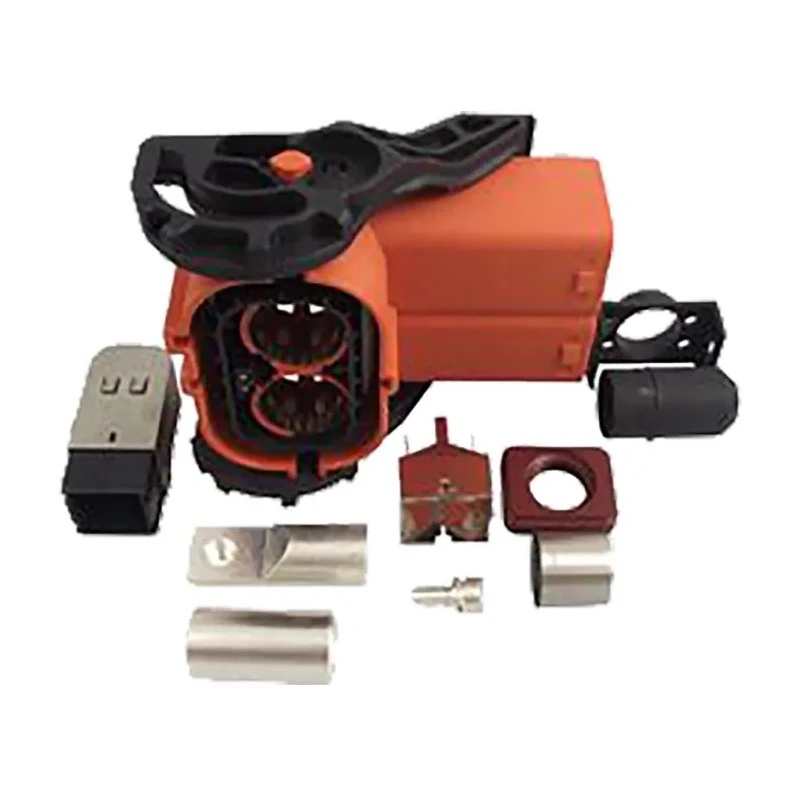

Amphenol Industrial UPC RADSOK EV Connector Male 250A, 1000V, Right Angle, Solder Termination UPCP012ALS2

Amphenol Industrial UPCP012ALS2 is a Universal Power Connector (UPC) designed specifically for high current EV applications such as hybrid electric vehicles, battery management systems, and power converters. Featuring patented RADSOK technology, this EV connector ensures high amperage capacity of 250A while maintaining low thermal rise and minimal voltage drop.

The connector has a right angle orientation and is suitable for cable and panel mount installations. It incorporates a durable plastic housing that provides a lightweight yet robust shell for ease of use and longevity. Its contacts are made of copper alloy with gold plating to enhance conductivity and corrosion resistance, terminating via solder with female contacts inside a male connector housing.

Operating safely at voltages up to 1000V, it meets critical industry standards including UL 2251 and UL 94 V-0, and it is rated for ingress protection IP67 and IP69K, making it highly resistant to dust and water ingress. The connector functions across a wide temperature range from -40°C to 125°C, suitable for heavy equipment electrification, 2 and 3 phase motors, and starter generator applications.

The compact physical dimensions of 106mm height, 64mm width, and 63mm depth make the connector space-efficient for integration in electric vehicle systems. Its Type A key ensures proper mating and prevents mismating. It is designed to withstand 500 mating cycles, providing durability and reliability in demanding environments.

This product is part of Amphenol's Better World initiative, contributing towards renewable energy solutions through efficient electrical power connections. It is intended for use with the 2 Position RADSOK UPC Series receptacle connectors, facilitating seamless electric vehicle charger construction and maintenance.

This EV connector supports high current and voltage requirements for hybrid electric vehicles and industrial electrification. Its design optimizes thermal performance and connection reliability for heavy-duty applications.

The connector shell is made from tough plastic, ensuring reduced weight and enhanced durability. Its IP67 and IP69K ratings safeguard against dust and water ingress, suitable for harsh environments. The gold-plated copper alloy contacts guarantee excellent electrical performance and corrosion resistance.

Certified with UL standards, it meets rigorous electrical safety and flammability requirements. Its solder termination and right angle orientation enable versatile installation options. The connector's compact size and standardized keying make it ideal for EV charging systems and power converters.
