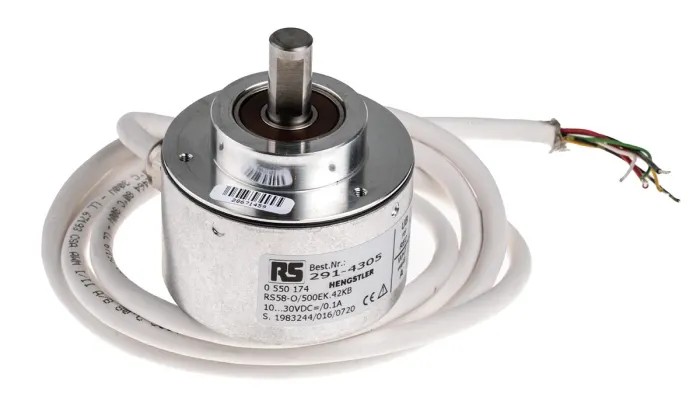

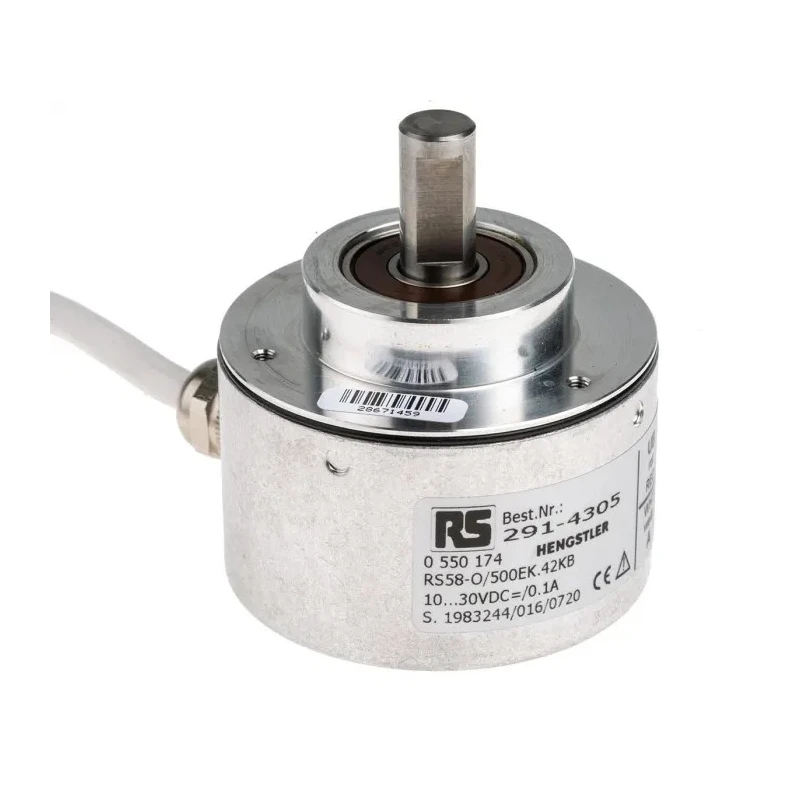

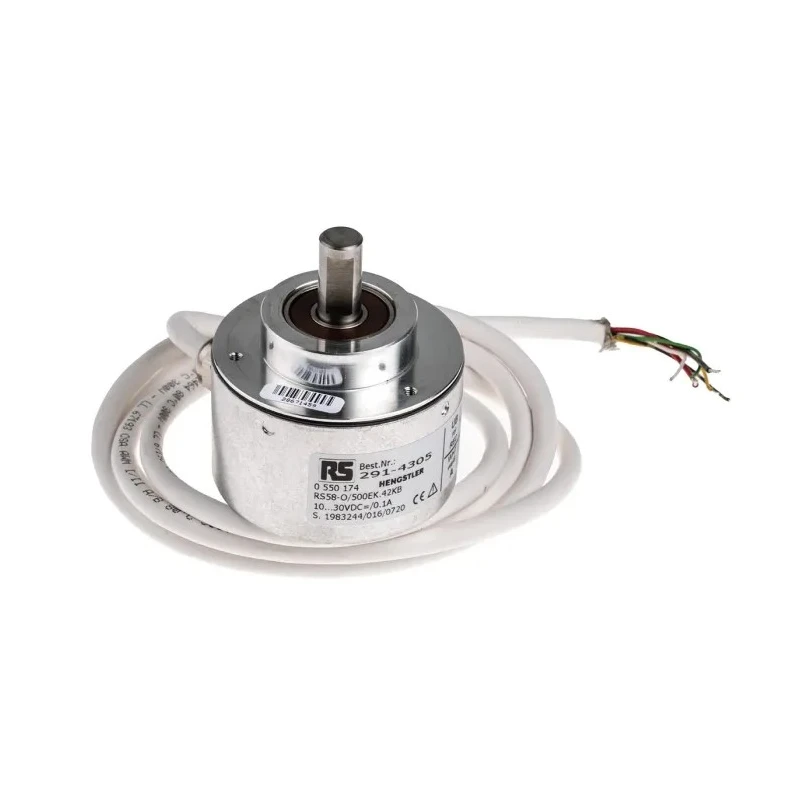

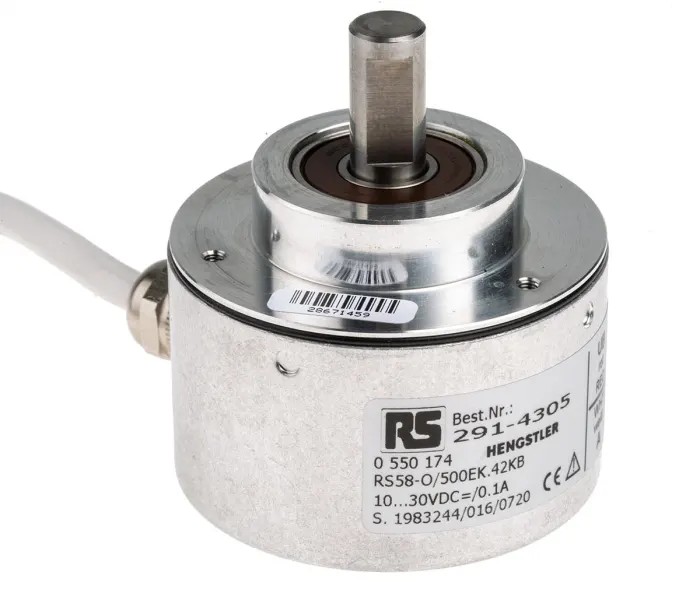

Hengstler RI58-O Series Incremental Encoder 30V dc, 500 ppr, Push Pull Signal, Solid 10 mm Shaft RS58-O/500EK.42KB

Hengstler RS58-O/500EK.42KB incremental encoder is a high-performance sensor designed for precise motion control and positioning applications. Operating with a maximum supply voltage of 30V DC, this encoder delivers 500 pulses per revolution (ppr), allowing accurate speed and position measurement in industrial environments.

The solid 10 mm shaft coupled with a robust flange mount design enables secure mechanical integration. Its compact overall dimensions (58.5 mm depth, 50 mm height, and 50 mm width) make it suitable for tight installations.

With a maximum rotational speed of 10000 RPM and a switching frequency of 200 kHz, this encoder supports fast and dynamic motion control systems. The push-pull output signals ensure reliable and noise-immune transmission of encoder data.

Built with OptoASIC technology, this device offers enhanced durability and signal quality. It is rated IP65 and IP64, providing protection from dust ingress and water splashes, making it suitable for industrial and automation environments. The unit operates effectively within a temperature range of -10°C to 70°C.

This encoder complies with UL and CE standards, underlining its quality and safety credentials. Manufactured in Germany, it reflects high engineering standards and reliability. This model features 500 pulses per revolution for fine resolution.

Push-pull output signal type ensures stable signal transmission. Robust IP65 and IP64 rating protects against challenging factory conditions. Optimized for mounting via flange for straightforward installation. Operating temperature range suited for a variety of industrial environments.

Compact dimensions facilitate integration into existing machinery. Solid 10 mm shaft fits precise mechanical coupling needs. High maximum speed of 10000 RPM supports fast machinery. Conforms to UL and CE standards for safety and quality assurance.

This Hengstler Incremental Encoder is ideal for applications in manufacturing, industrial automation, robotics, and motion control systems where precision and reliability are critical. Browse our wide selection of Hengstler motion control sensors and encoders to find the best fit for your industrial requirements at EnvMart.
