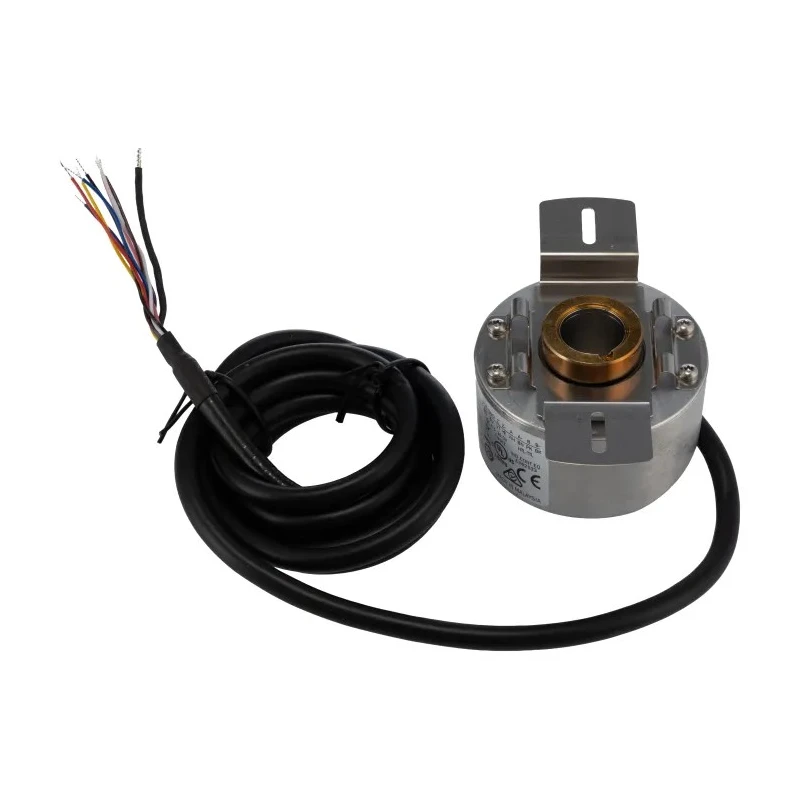

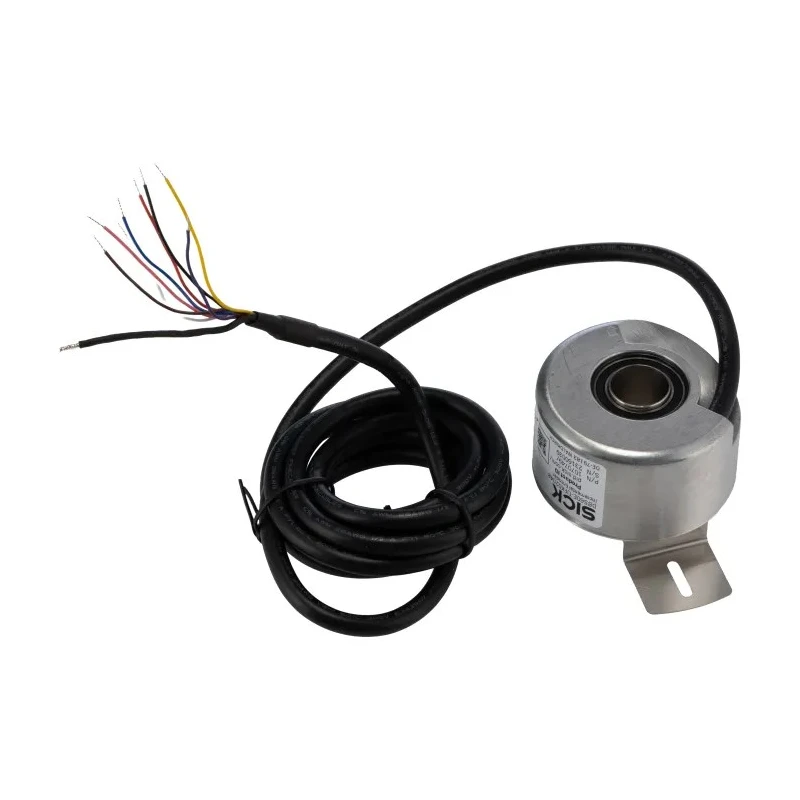

SICK DBS60 Core Series Incremental Encoder 30V, 2048 ppr, TTL and HTL Signal, Through Hollow Shaft 15.87mm Diameter DBS60

The SICK DBS60 Core Series Incremental Encoder DBS60 model is a robust and accurate incremental encoder designed for industrial control and motion system applications. It delivers 2048 pulses per revolution, providing fine resolution feedback essential for precise positioning and speed monitoring.

This encoder features a through hollow shaft mount with an internal bore diameter of 15.87 mm, allowing direct installation on drive shafts. The device supports both TTL and HTL output signal types, enabling compatibility with a wide range of electronic interfaces commonly used in automation and control systems.

Engineered for durability, the DBS60 encoder operates reliably within a temperature range from -30°C up to 100°C and is equipped with an IP65-rated housing to protect against dust and water, making it well-suited for harsh industrial environments.

The encoder supports a high switching frequency of 300 kHz and can withstand rotational speeds up to 9000 rpm, satisfying the needs of rapid motion measurement in conveyor systems, servo motors, robotic assemblies, and spindle monitoring applications.

Electrical connections are conveniently provided via cable termination, simplifying integration. The product also meets electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3 for immunity and emissions compliance, ensuring stable performance in electromagnetically noisy settings.

Physical dimensions of the encoder are compact at 58 mm width, 58 mm height, and 41.8 mm depth, facilitating straightforward panel and machine mounting. 2048 pulses per revolution for high-resolution position sensing. Compatible TTL and HTL output signals ensure flexible electronic interface options.

Through hollow shaft design with 15.87 mm shaft diameter fits directly onto drive shafts. Wide operating temperature range from -30°C to 100°C for varied environments. High switching frequency of 300 kHz supports rapid motion detection.

IP65 rated enclosure offers protection against dust and water ingress. Maximum rotational speed up to 9000 rpm for demanding machinery. Includes cable termination for straightforward electrical connections. Conforms to industrial EMC standards EN 61000-6-2 and EN 61000-6-3 for reliable operation.

Compact housing dimensions of 58 x 58 x 41.8 mm optimize mounting space. This SICK Incremental Encoder is ideal for industrial, manufacturing, automation, and laboratory applications requiring reliable and accurate motion control feedback.
