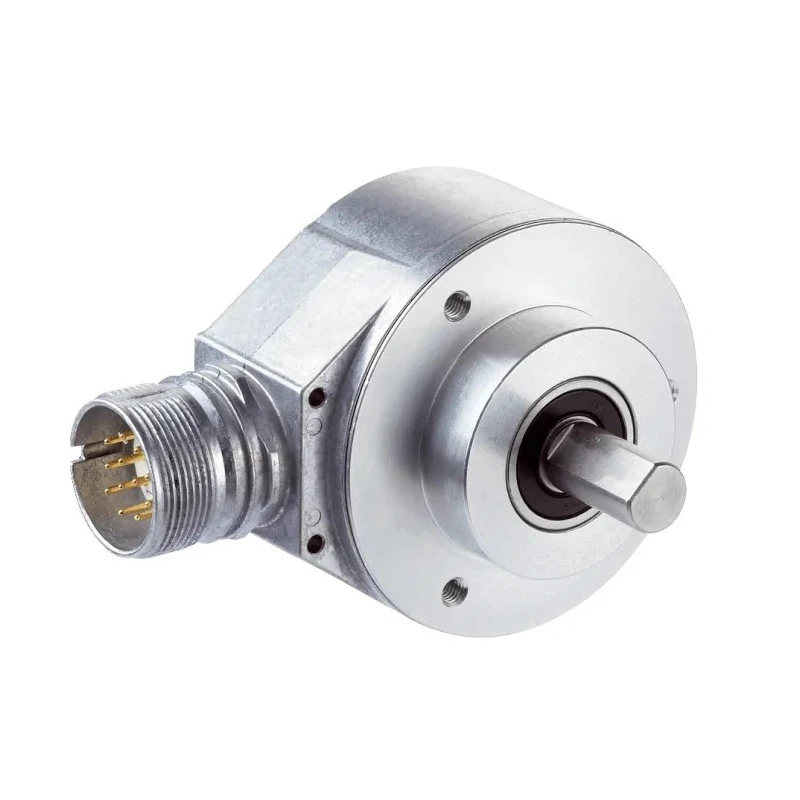

SICK DFS60 Series Incremental Encoder 32V, 1024 ppr, HTL Signal, Solid Shaft 10 mm, IP65, Programmable DFS60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Connection | Radial or axial cable connection, M23 or M12 male connector, axial or radial |
| Model | DFS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DFS60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 0°C |
| Shaft Diameter | 10mm |
| Overall height | 60mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | Plug-In |
| Interface Type | Incremental |
| Pulses per Revolution | 1024ppr |
| Maximum Supply Voltage | 32V |
| Overall Depth | 40.1mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | HTL |
| Loop control | loop and speed measurement |
| Electrical interfaces | 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss |
| Mechanical interfaces | Face mount flange or servo flange, blind hollow shaft or through hollow shaft |
| Optional programming | Output voltage, zero pulse position, zero impulse width, pulse number and counting direction |
Key Features
- The encoder supports a maximum speed of 9000 rpm for high precision applications.
- It features programmable output voltage, zero pulse position, and counting direction.
- Robust design with high enclosure rating and temperature range from 0°C to 85°C.
- Offers multiple electrical interfaces including TTL/RS-422 and HTL/push-pull signals.
- Mount type is full shaft with plug-in terminal connection for easy installation.
- Mechanical interfaces include face mount flange or servo flange options.
- Ideal for industrial motion control including loop control, belt speed measurement, and position monitoring.
- High switching frequency of 300 kHz ensures precise and fast signal response.
Product Description
SICK DFS60 Series Incremental Encoder DFS60 delivers high-resolution incremental encoding with 1024 pulses per revolution at 32V supply voltage. This encoder features a solid 10 mm shaft and HTL output signal type, making it suitable for precise motion control applications in various industrial environments.
The device supports a maximum rotational speed of 9000 rpm and a switching frequency of 300 kHz. Its rugged IP65 rated enclosure provides protection against dust and water ingress, allowing reliable operation in demanding industrial conditions with operating temperatures ranging from 0°C to 85°C.
The encoder is equipped with a full shaft mount type and plug-in terminal connection for convenient installation. It offers versatile electrical interfaces including 5 V and 24 V TTL/RS-422, 24 V HTL push-pull, and 5 V sin/cos 1 Vss. Mechanical interfaces such as face mount flange, servo flange, and hollow shaft options cater to diverse mechanical integration requirements.
Unique programmable features include output voltage adjustment, zero pulse position setting, zero impulse width, pulse count, and counting direction, enabling customization for specific application needs via PGT-08 programming software or PGT-10-Pro display tool.
Common use cases encompass positioning in oxygen cutting torches, damper position monitoring in HVAC duct systems, rotary valve operations, belt speed calculations, and freight measurement in material handling. These applications benefit from the encoder’s robust construction, precise concentricity, and long bearing life for sustained performance and reduced downtime.
Maximum speed of 9000 rpm for dynamic applications. IP65 enclosure ensures operation in harsh industrial environments. Programmable zero pulse position facilitates simplified installation. High resolution up to 16 bits for accurate measurements.
Multiple connector and cable connection options for installation flexibility. Approved to standards EN 61000-6-2 and EN 61000-6-4 for electromagnetic compatibility. Designed and manufactured in Germany ensuring quality and consistency.
Suitable for industrial automation, manufacturing, and motion control tasks. Explore more Industrial Sensors and Encoders at EnvMart for reliable automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK DFS60 Series Incremental Encoder supports a maximum rotational speed of 9000 rpm, making it suitable for high precision applications.
This encoder features an HTL output signal type, which is commonly used in industrial applications for reliable signal transmission.
The overall dimensions of the encoder are 60 mm in width, 60 mm in height, and 40.1 mm in depth.
The SICK DFS60 Series Incremental Encoder has an IP65 rating, providing protection against dust and water ingress.
It supports multiple electrical interfaces including 5 V & 24 V TTL/RS-422, 24 V HTL push-pull, and 5 V sin/cos 1 Vss.
The encoder allows for programming of output voltage, zero pulse position, zero impulse width, pulse count, and counting direction, enabling customization for specific applications.
It offers mechanical interfaces such as face mount flange, servo flange, and hollow shaft options for diverse integration requirements.
The operating temperature range for the SICK DFS60 encoder is from 0°C to 85°C, suitable for various industrial environments.
This model provides a resolution of 1024 pulses per revolution, allowing for high-resolution incremental encoding.
The encoder features a plug-in terminal connection with options for radial or axial cable connection using M23 or M12 male connectors.
Common applications include positioning in oxygen cutting torches, damper position monitoring in HVAC systems, and belt speed calculations.
This encoder is designed and manufactured in Germany, ensuring quality and consistency in its construction.
