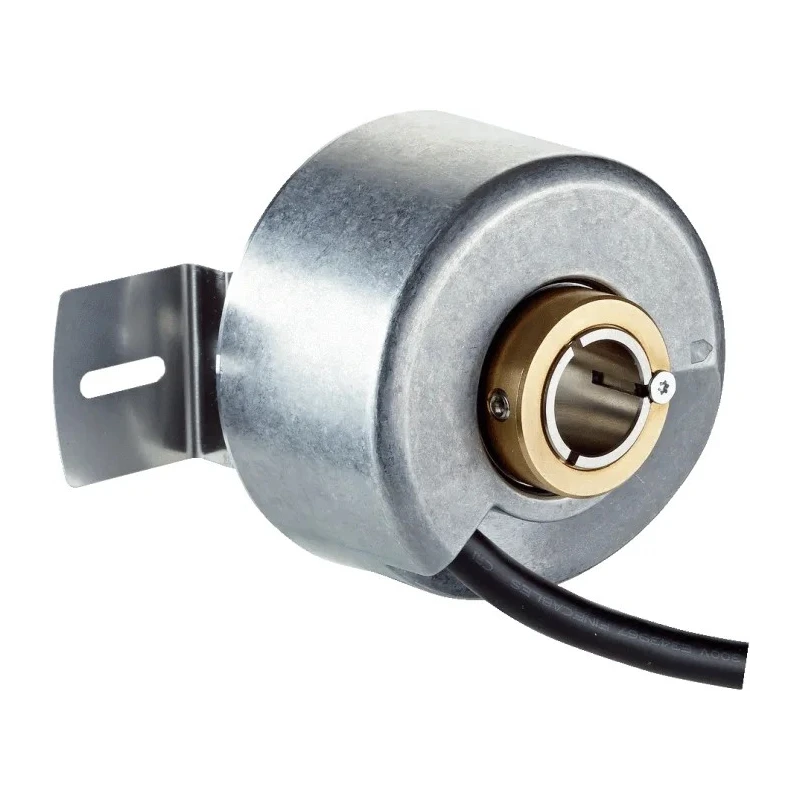

SICK DBS60 Core Series Incremental Encoder 30V, 2048 PPR, HTL TTL Signal, Hollow Shaft 15.87 mm DBS60

SICK DBS60 Core Series Incremental Encoder model DBS60 provides a reliable solution for measuring position, speed, and distance in industrial automation environments. It operates at 30V DC and delivers a high resolution of 2048 pulses per revolution, supporting both HTL and TTL output signal types.

The encoder features a hollow shaft with a diameter of 15.87 mm and compact housing dimensions of 58 mm diameter and 43.8 mm depth, facilitating integration into limited spaces. Its rugged design includes an IP65 protective rating, safeguarding the device from dust and water, and allowing use in harsh industrial conditions.

The DBS60 series supports operating temperatures ranging from -30°C to 100°C and can withstand rotational speeds up to 9000 rpm, making it suitable for applications in factory automation, packaging machines, elevators, and logistics systems. Mounting is versatile with face mount and servo flange options, with various hole patterns and hollow shafts up to 5/8 inches available.

Additional features include insulated hollow shafts to prevent current and temperature damage, rear housing clamping for secure attachment, and multiple cabling options including cable and M12/M23 connectors. The encoder complies with EN 61000-6-2 and EN 61000-6-3 standards ensuring electromagnetic compatibility.

This encoder supports measurements in asynchronous motors and roller conveyors among others, aimed at precise height monitoring, speed measurement, and position determination in logistic and industrial applications.

Compact 58 mm diameter housing with 43.8 mm installation depth for space-saving installation. High resolution 2048 pulses per revolution ensures precise position and speed measurement. Hollow shaft design with 15.87 mm diameter allowing easy shaft mounting and clamping.

Robust IP65-rated enclosure for protection against dust and water ingress. Supports HTL and TTL output signals compatible with standard automation controls. Wide operating temperature range from -30°C to 100°C for various industrial environments.

Maximum rotational speed up to 9000 rpm for high-speed applications. Designed to reduce storage costs with a broad voltage supply range up to 30 V DC. Multiple mounting options including face and servo flange to fit various machinery setups.

Ideal for industrial, manufacturing, laboratory automation, HVAC control, and packaging applications, the DBS60 Core Incremental Encoder offers a rugged and precise solution. Explore more sensors and encoders at EnvMart for your automation needs.
