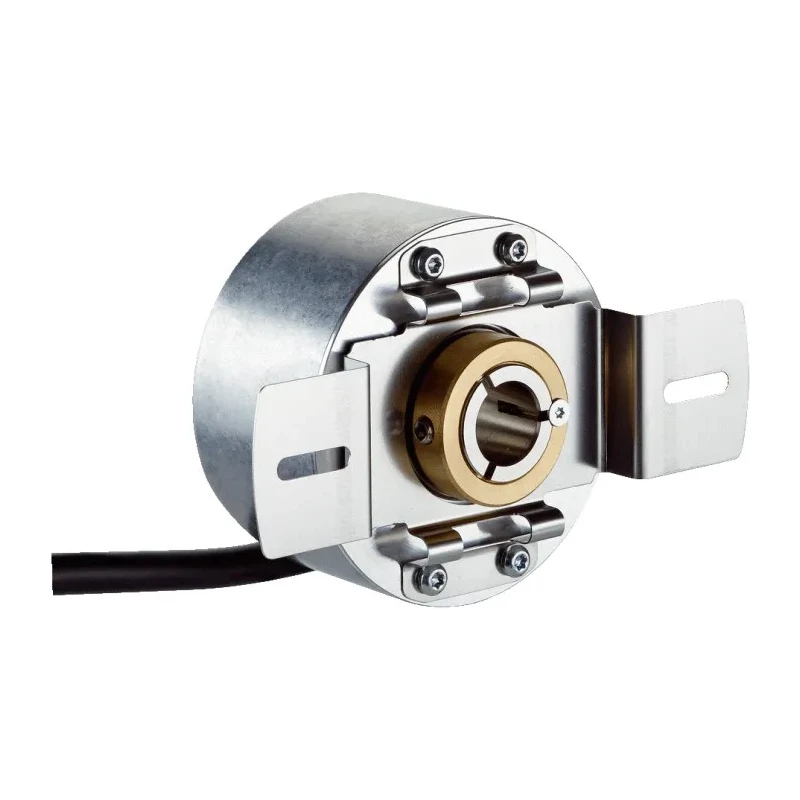

SICK Incremental Encoder DBS60 Core Series, 30V, 5000 ppr, TTL and HTL Signal, Hollow Shaft 15.87 mm DBS60
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBS60 |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Mount |
| Series | DBS60 Core |
| Overall Width | 58mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 15.87mm |
| Overall height | 58mm |
| Switching Frequency | 300kHz |
| Shaft Type | Hollow |
| Terminal type | Cable |
| Interface Type | HTL |
| Pulses per Revolution | 5000ppr |
| Maximum Supply Voltage | 30V |
| Overall Depth | 41.8mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | TTL, HTL |
Key Features
- High resolution of 5000 pulses per revolution for precise positioning.
- Hollow shaft design with 15.87 mm diameter suitable for shaft sizes up to 5/8 inches.
- Robust IP65 rated housing for protection in industrial environments.
- Supports TTL and HTL output signals with a maximum switching frequency of 300 kHz.
- Compact housing diameter of 58 mm and depth of 41.8 mm for space-saving installation.
- Wide operating temperature range from -30°C to 85°C for versatile applications.
- Mount type supports hollow shaft mounting with insulated shaft options.
- Suitable for factory automation and motion control applications including motors, elevators, and packaging machines.
Product Description
SICK DBS60 Core Series Incremental Encoder DBS60 is designed for high precision measurement of position, speed, and distance in industrial and automation environments. Operating with a maximum supply voltage of 30V, this Incremental Encoder offers 5000 pulses per revolution and supports TTL and HTL output signals for reliable signal transmission. The encoder features a hollow shaft with a diameter of 15.87 mm, suitable for shaft sizes up to 5/8 inches, with options for shaft insulation and rear housing clamp for secure installation.
The compact housing diameter of 58 mm and overall depth of 41.8 mm allow for installation in limited space applications. Its robust design complies with IP65 ingress protection, protecting against dust and water, and ensures durability in harsh industrial settings. The device supports a maximum rotation speed of 9000 rpm and a switching frequency up to 300 kHz, making it suitable for dynamic control tasks.
Designed according to EN 61000-6-2 and EN 61000-6-3 standards, the encoder ensures electromagnetic compatibility and interference resistance. The wide operating temperature range from -30°C to 85°C allows use in diverse environmental conditions.
The SICK DBS60 is ideal for factory and logistics automation, including applications such as asynchronous motors, elevators, packaging machines, warehousing, roller conveyor speed measurement, and precise position determination in transfer systems.
High resolution of 5000 pulses per revolution for precise positioning. Hollow shaft design with 15.87 mm diameter suitable for shafts up to 5/8 inches. Robust IP65 rated housing provides protection from dust and water. Supports TTL and HTL output signals with a maximum switching frequency of 300 kHz.
Compact housing dimensions save space and facilitate flexible mounting. Wide operating temperature range from -30°C to 85°C ensures reliability in harsh environments. Compliance with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
Versatile mounting options with hollow shaft clamp and insulated shaft variants. Applications include motors, elevators, packaging, conveyor systems, and transfer monitoring. Explore a wide range of sensors and encoders at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30V.
It offers a resolution of 5000 pulses per revolution (ppr).
This encoder supports both TTL and HTL output signals.
The maximum switching frequency is 300 kHz.
It operates within a temperature range from -30°C to 85°C.
The overall dimensions are 58 mm in diameter and 41.8 mm in depth.
The maximum rotational speed is 9000 rpm.
It uses a hollow shaft mount type, suitable for shafts up to 5/8 inches.
This encoder has an IP65 rating, providing protection against dust and water.
It complies with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
It is suitable for factory automation, including motors, elevators, and packaging machines.
The shaft diameter is 15.87 mm.
