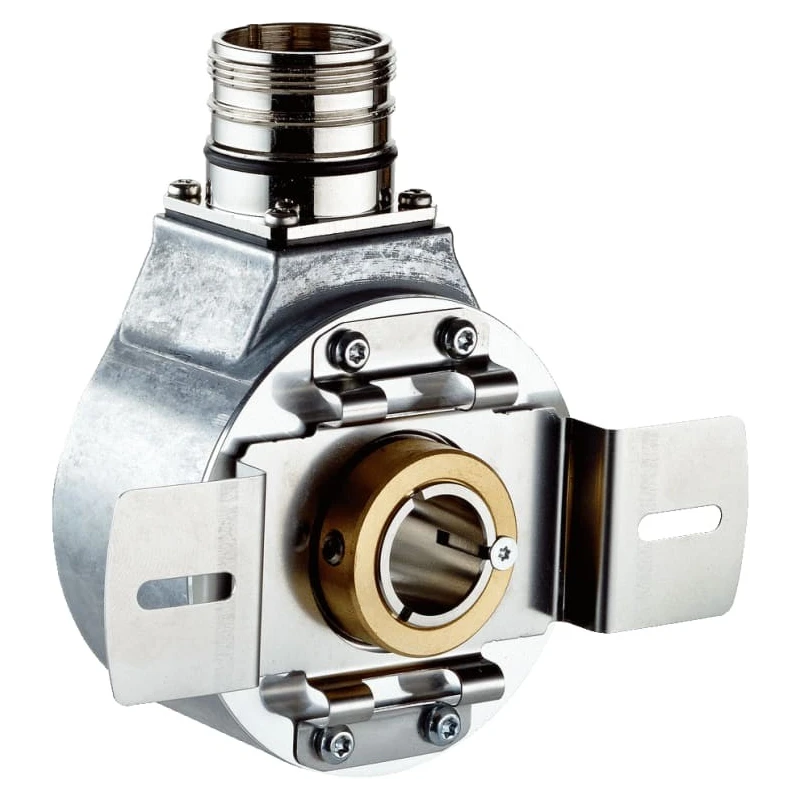

SICK DBS60 Core Series Incremental Encoder 30V, 1024 PPR, HTL TTL Signal, Hollow Shaft 15.87 mm DBS60

SICK DBS60 Core Series Incremental Encoder DBS60 is a robust and compact sensor designed for precise position, speed, and distance measurements in automation and control systems. Operating at 30V supply voltage, it features 1024 pulses per revolution and supports HTL and TTL output signals. The encoder's hollow shaft diameter of 15.87 mm allows easy integration in various mechanical setups.

This encoder has a compact housing with a diameter of 58 mm and an overall depth of 41.8 mm, making it suitable for installations with limited space. It can handle rotational speeds up to 9000 rpm and has a switching frequency of 300 kHz, ensuring high responsiveness and accuracy.

The SICK DBS60 boasts an IP65 ingress protection rating, safeguarding it against dust and water jets for use in harsh industrial conditions. It is rated to operate reliably in temperatures ranging from -30°C to 100°C, covering a broad spectrum of environmental conditions.

Installation flexibility is enhanced by the hollow shaft mounting, plug-in terminal type, and various flange options. Electrical interfaces cover HTL and TTL signals with voltage ranges from 4.5 V DC to 30 V DC, accommodating a wide range of control systems.

Meeting EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility, the encoder supports industrial quality and performance. Its rugged design with a large bearing distance allows it to withstand high shaft loads, contributing to prolonged operational life.

Common applications for the DBS60 encoder include asynchronous motors, elevators, packaging machines, warehousing, and conveyor speed measurement. It is ideal for factory and logistics automation where accurate position and speed feedback is critical.

The product is made in Malaysia, ensuring adherence to global manufacturing standards. The comprehensive design reduces storage costs and simplifies integration with its broad voltage compatibility and multiple mounting options.

Compact 58 mm diameter housing with 41.8 mm depth. 1024 pulses per revolution, with HTL and TTL output signals. Maximum rotational speed 9000 rpm and 300 kHz switching frequency. Hollow shaft mounting with 15.87 mm diameter shaft.

Protection rating IP65 for harsh environments. Operating temperature range -30°C to 100°C. Compliance with EN 61000-6-2 and EN 61000-6-3 electromagnetic standards. Plug-in terminal type for easy connection. Versatile use in automation, packaging, elevators, and conveyors.

Manufactured in Malaysia for quality assurance. Explore more automation and control gear products from EnvMart for industrial and manufacturing applications.
