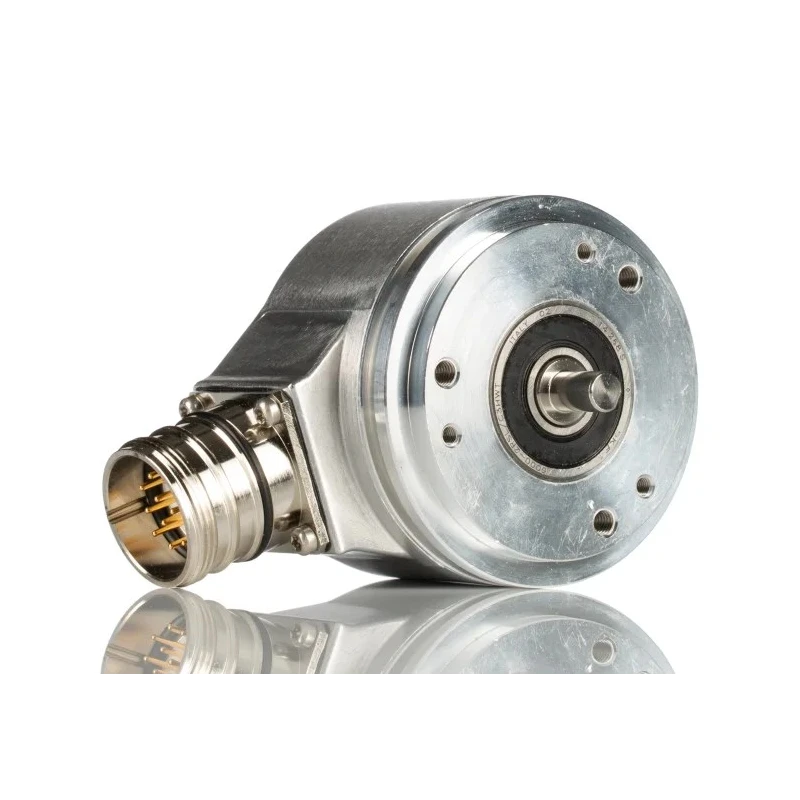

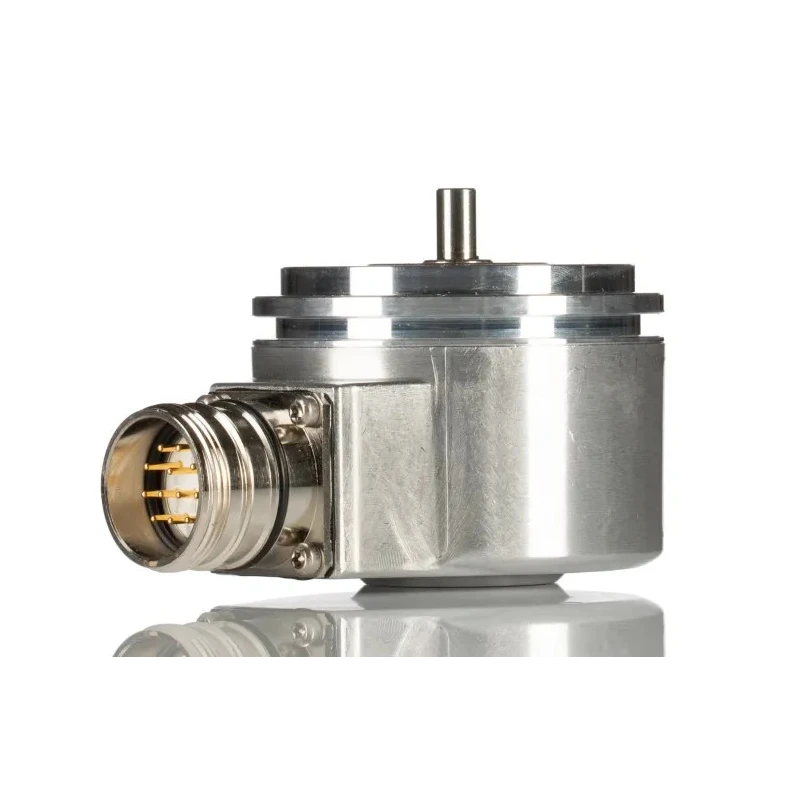

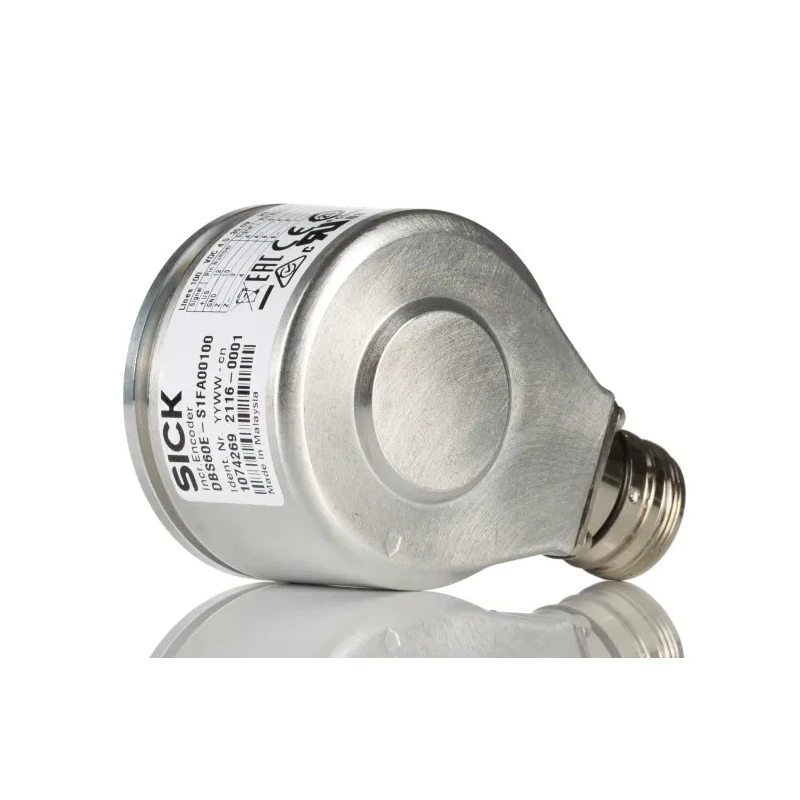

SICK Incremental Encoder 30V, 100 ppr, TTL/HTL Signal, Solid Shaft 6 mm DBS60
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DBS60 Core |
| Overall Width | 58mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 6mm |
| Overall height | 58mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | Plug-In |
| Interface Type | TTL/HTL |
| Pulses per Revolution | 100ppr |
| Maximum Supply Voltage | 30V |
| Overall Depth | 44.35mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | TTL, HTL |
Key Features
- Compact housing with diameter 58 mm and mounting depth 44.35 mm.
- Supports up to 9000 rpm maximum revolutions for high-speed operations.
- IP65 rated enclosure ensures protection against dust and water ingress.
- Output signals available in TTL and HTL formats for versatile interfacing.
- Operating temperature range from -30°C to 100°C suits harsh environments.
- Plug-in terminal type facilitates easy electrical connections.
- Switching frequency capability up to 300 kHz for precise signal processing.
- Mount type is full shaft, supporting secure mechanical installation.
Product Description
SICK DBS60 is a robust Incremental Encoder model DBS60 designed for precise position, speed, and distance measurements in various industrial applications. Its operational voltage is 30V, and it features a 100 pulses per revolution (ppr) solid shaft design with a 6 mm diameter, making it suitable for heavy-duty use in factory automation, elevators, packaging machines, and warehouse logistics.
This encoder features a compact housing with a diameter of 58 mm and a depth of 44.35 mm, combined with an IP65 rating for dust and water resistance, ensuring durability in demanding conditions. It supports maximum rotational speeds up to 9000 rpm and a high switching frequency of 300 kHz, allowing for accurate and high-speed signal generation.
The output interface supports both TTL and HTL signals, compatible with various control systems. Electrical connections are made through a plug-in terminal for straightforward installation. Operating temperature ranges from -30°C to 100°C, enabling reliable performance in diverse environments.
The DBS60 Core Series offers versatile flange and shaft options, including face mount and servo flange with multiple hole patterns, with the solid shaft providing ruggedness and long service life. Its insulated hollow shaft options reduce shaft currents and temperatures, enhancing operational safety. The encoder complies with EN 61000-6-3 and EN 61000-6-2 standards, ensuring electromagnetic compatibility in industrial applications.
Typical applications include speed and position feedback in asynchronous motors, speed measurement on roller and slat conveyors, position detection in transfer systems, and precise height monitoring of printed circuit board assembly devices. Its rugged construction and flexible installation options make it a preferred choice for factory and logistics automation tasks.
Compact 58 mm diameter housing with robust construction. High-resolution 100 ppr for precise incremental encoding. Wide temperature range operation ensuring versatility. Compatible TTL and HTL output signal formats. IP65 protection for industrial environment reliability.
For further exploration of quality encoders and related sensor technology, browse our Electronics & Electricals Sensors catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 100°C.
This encoder supports output signals in both TTL and HTL formats, allowing for versatile interfacing with control systems.
The SICK DBS60 can operate at maximum revolutions of up to 9000 rpm.
The encoder has an IP65 rating, providing protection against dust and water ingress in industrial environments.
The solid shaft of this model has a diameter of 6 mm.
This encoder has a switching frequency capability of up to 300 kHz for precise signal processing.
The housing has a diameter of 58 mm and a mounting depth of 44.35 mm.
It features a plug-in terminal type, facilitating easy electrical connections.
Typical applications include speed and position feedback in asynchronous motors, speed measurement on conveyors, and position detection in transfer systems.
The minimum operating temperature is -30°C, allowing it to function in harsh environments.
This model utilizes incremental encoder technology for precise position, speed, and distance measurements.
The encoder supports a full shaft mount type, ensuring secure mechanical installation.
