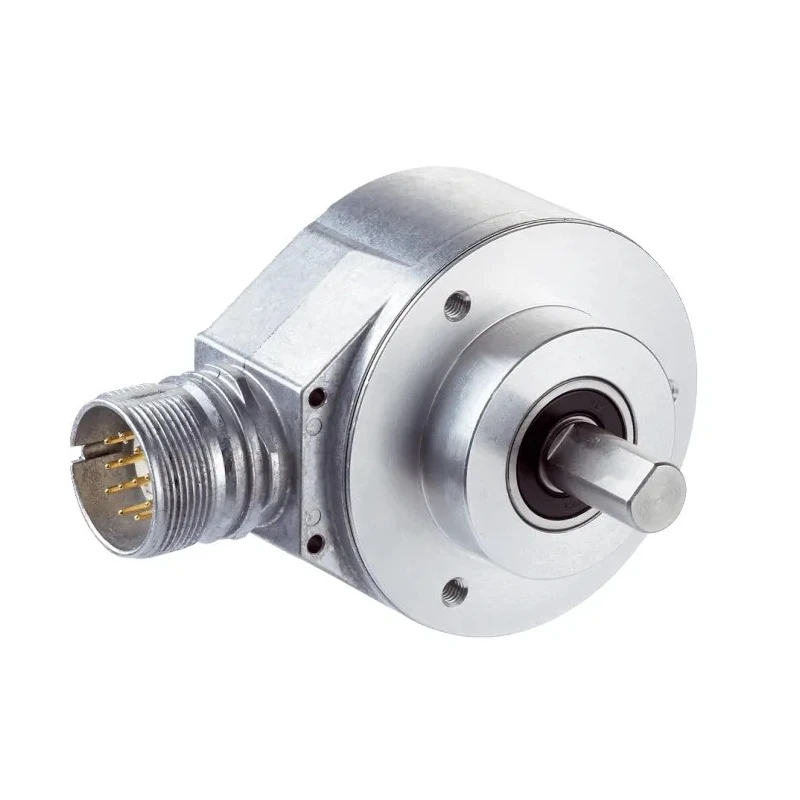

SICK DFS60 Series Incremental Encoder 5.5V Supply, 5000 PPR, TTL Output, Solid 10 mm Shaft, IP65, Programmable DFS60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Connection | Radial or axial cable connection, M23 or M12 male connector, axial or radial |
| Model | DFS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DFS60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 10mm |
| Overall height | 60mm |
| Switching Frequency | 600kHz |
| Shaft Type | Solid |
| Terminal type | Plug-In |
| Interface Type | Incremental |
| Pulses per Revolution | 5000ppr |
| Maximum Supply Voltage | 5.5V |
| Overall Depth | 40.1mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | TTL |
| Loop control | loop and speed measurement |
| Electrical interfaces | 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss |
| Mechanical interfaces | Face mount flange or servo flange, blind hollow shaft or through hollow shaft |
| Optional programming | Output voltage, zero pulse position, zero impulse width, pulse number and counting direction |
Key Features
- The encoder supports a maximum rotational speed of 9000 RPM.
- Equipped with a high IP65 rating for protection against dust and water ingress.
- Features programmable output voltage, zero pulse position, pulse number, and counting direction for custom configurations.
- Offers versatile interfaces including 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, and 5 V sin/cos 1 Vss signals.
- Utilizes a compact 60 mm diameter housing with multiple mechanical mounting options.
- Designed for reliable operation in wide temperature ranges from -30°C up to 100°C.
- Includes plug-in terminal interface for easy installation and maintenance.
- High switching frequency up to 600 kHz ensures precise measurement and control.
Product Description
SICK DFS60 Series Incremental Encoder DFS60 is a high-resolution incremental encoder engineered for robust industrial motion control, featuring a 5.5V supply voltage, a solid 10 mm shaft, and 5000 pulses per revolution with TTL output signal type.
This encoder supports a maximum rotational speed of 9000 RPM and maintains permanent and safe operation due to its IP65 enclosure rating, enabling reliable performance in harsh environments. Operating temperatures range from -30°C to 100°C, suitable for demanding industrial conditions.
The encoder comes with programmable options allowing output voltage, zero pulse position, zero impulse width, pulse number, and counting direction to be tailored via dedicated programming tools. Electrical interfaces include 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, and 5 V sin/cos 1 Vss, providing flexibility for integration with various control systems.
Mechanical interfaces include face mount flange or servo flange with full shaft mounting type, ensuring secure installation. A plug-in terminal type simplifies connection, while the small form factor with overall dimensions 60 mm height and width, and 40.1 mm depth enables use in compact spaces.
This encoder is ideal for applications such as positioning in oxygen cutting torches during casting, monitoring damper positions in ventilation systems, speed measurement on conveying equipment, and dynamic freight measurement, demonstrating its versatility across industrial, manufacturing, and automation sectors.
The DFS60 encoder's high concentricity and long bearing life assure precision even at elevated speeds. Programmability via PGT-08 and PGT-10-Pro tools facilitates customer-specific adaptations and reduces downtime. Excellent suitability for loop control, speed measurement, and precise rotary valve operation.
Designed and manufactured in Germany to meet EN 61000-6-2 and EN 61000-6-3 standards. Explore our extensive range of sensors and Incremental Encoders to find precise motion control solutions tailored for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of this encoder is 9000 RPM.
The output signal type of this model is TTL (Transistor-Transistor Logic).
It has an IP65 rating, providing protection against dust and water ingress.
It supports 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, and 5 V sin/cos 1 Vss signals.
The encoder allows programming of output voltage, zero pulse position, zero impulse width, pulse number, and counting direction.
The overall dimensions are 60 mm in height and width, and 40.1 mm in depth.
It features a solid 10 mm shaft.
The operating temperature range is from -30°C to 100°C.
It can be mounted using a face mount flange or a servo flange with a full shaft mounting type.
The switching frequency of the DFS60 encoder is up to 600 kHz.
It is designed and manufactured in Germany.
This encoder is suitable for applications such as positioning in oxygen cutting torches, monitoring damper positions, and speed measurement on conveying equipment.
