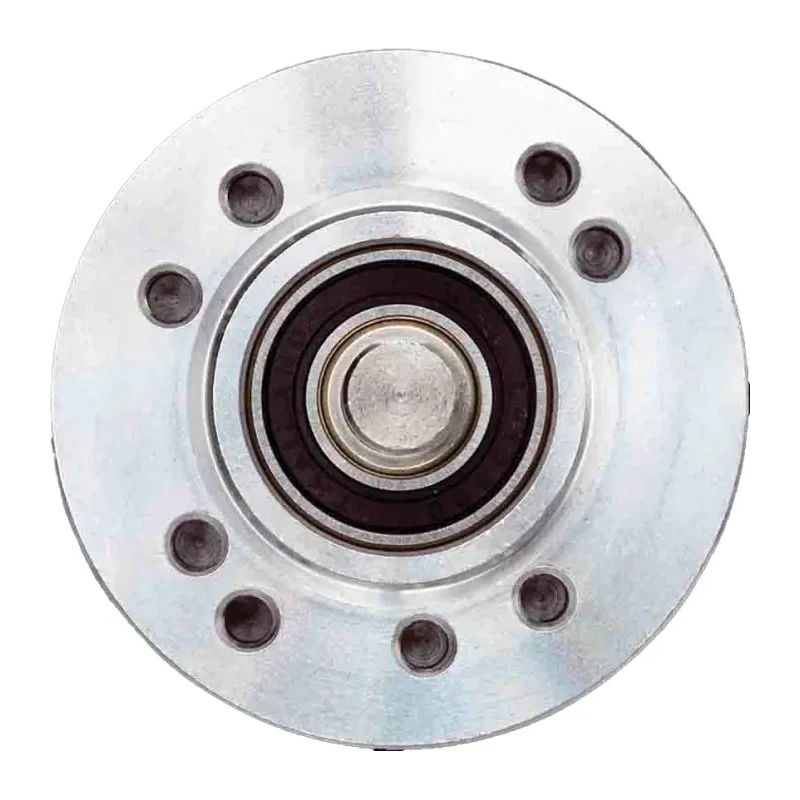

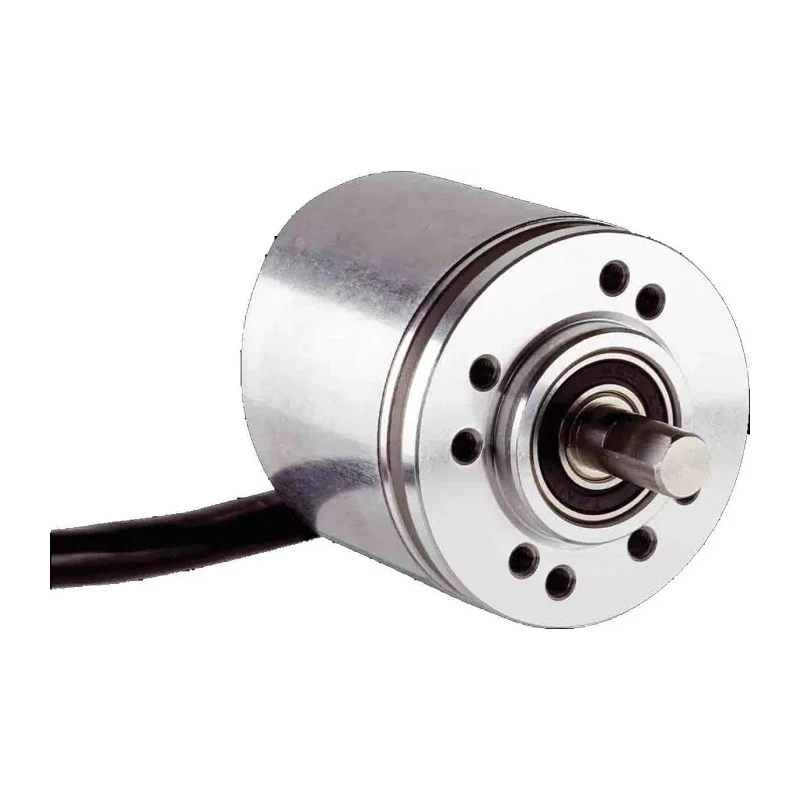

SICK Incremental Encoder DBS36 Core INCREMENTAL ENCODERS Series 5.5V dc, 100 ppr, TTL Signal, Solid Shaft 6mm DBS36
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBS36 |
| IP Rating | IP65 |
| Mount Type | Shaft, Flange |
| Series | DBS36 Core INCREMENTAL ENCODERS |
| Overall Width | 36mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 6mm |
| Overall height | 37mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Interface Type | Incremental, RS422, TTL |
| Pulses per Revolution | 100ppr |
| Maximum Supply Voltage | 5.5V dc |
| Overall Depth | 35.5mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | TTL |
Key Features
- Compact and robust design with IP65 protection for reliable industrial use.
- Offering 100 pulses per revolution for accurate rotational speed measurement.
- Supports a maximum speed of 6000 rpm with 300 kHz switching frequency.
- Wide operating temperature range from -20°C to 85°C suitable for harsh environments.
- Includes a 1.5m long cable with axial or radial routing options for flexible installation.
- Shaft and flange mount types provide easy replacement compatibility.
- Supplies operate at 4.5 to 5.5 V DC with an operating current of approximately 50 mA.
- Output interface supports Incremental, RS422, and TTL electrical standards.
Product Description
SICK DBS36 Incremental Encoder DBS36 Core INCREMENTAL ENCODERS Series is a compact, robust sensor suitable for industrial speed and position sensing applications. It features a solid 6mm diameter shaft and produces TTL output signals at 100 pulses per revolution, enabling high precision feedback for motion control systems. The encoder supports speeds up to 6000 rpm and switching frequencies to 300 kHz, ideal for exacting automation needs.
The encoder is protected to IP65 standards, ensuring reliable operation in dusty and wet industrial environments. Its extended operating temperature range from -20°C to 85°C allows deployment in extreme conditions across manufacturing, HVAC, robotics, and other industrial sectors.
Installation flexibility is enhanced by the 1.5m cable which can be routed either axially or radially, as well as by the shaft and flange mount options that facilitate easy replacement of other encoder models. The encoder operates at a supply voltage from 4.5 to 5.5V DC, drawing an operating current of about 50 mA without load.
Compact and robust design with IP65 protection. Output: Incremental, RS422, TTL with 100 pulses per revolution. Maximum speed: 6000 rpm and 300 kHz switching frequency. Operating temperature: -20°C to 85°C for harsh conditions.
Flexible mounting: shaft and flange mount types. 1.5m cable with axial or radial routing options. Low operating current of 50 mA. Meets EN 61000-6-2 and EN 61000-6-4 electromagnetic standards. Made in Malaysia.
This Incremental Encoder is well-suited for various industrial applications including manufacturing automation, machine tooling, robotics control, and process monitoring. Discover more motion control and sensor solutions at EnvMart to suit your automation project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum speed of 6000 rpm, making it suitable for high-speed applications.
It produces TTL output signals, along with support for Incremental and RS422 electrical standards.
The encoder operates effectively within a temperature range of -20°C to 85°C, suitable for harsh environments.
It offers 100 pulses per revolution, allowing for accurate rotational speed measurement.
The overall dimensions are 36mm in width, 37mm in height, and 35.5mm in depth.
It supports both shaft and flange mount types for flexible installation options.
It operates at a supply voltage ranging from 4.5 to 5.5 V DC.
The encoder has a maximum switching frequency of 300 kHz, suitable for high-frequency applications.
It features a solid shaft with a diameter of 6mm.
Yes, it has an IP65 rating, providing protection against dust and water ingress.
The typical operating current is approximately 50 mA without load.
This encoder is manufactured in Malaysia.
