Optris Two Point Laser Infrared Temperature Sensor -50 °C to 975 °C Stainless Steel Housing CATCTLLTSFK
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±1 % |
| Brand | Optris |
| Interface | CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces) |
| Spectral range | 8 to 14 μm |
| Model | CATCTLLTSFK |
| Sensor Type | Two Point Laser |
| Mount Type | Screw |
| Series | CSlaser LT |
| Interfaces | USB cable and adapters USB-C / USB-A |
| Maximum Ambient Temperature | 85°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 36V dc |
| Maximum Temperature Sensed | 975°C |
| Minimum Temperature Sensed | -50°C |
| Response Time 90% | 0.12s |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Temperature Range -50 to 975°C and Optical Resolution 75 | 1 |
Key Features

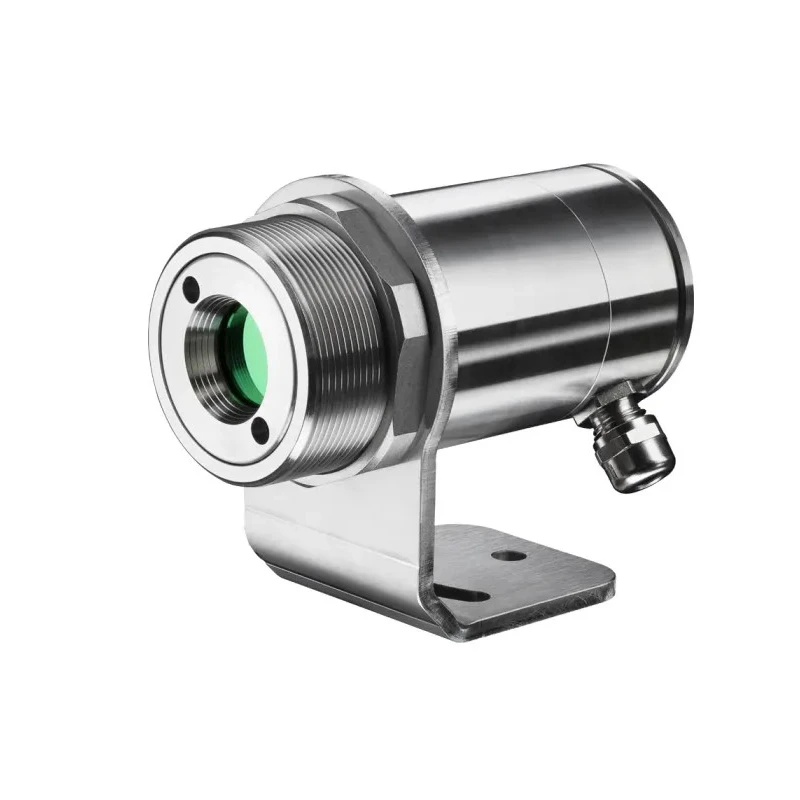

- Robust stainless steel measuring head with double laser sighting for precise target marking.
- Adjustable emissivity setting enhances measurement accuracy for various surfaces.
- Electronics box with selectable analog outputs and optional digital interfaces.
- Can be configured and monitored with free Android mobile app and Windows software.
- Temperature range from -50 °C to 975 °C suitable for diverse industrial applications.
- Quick response time of 0.12 seconds to capture rapid changes.
- Includes mounting bracket, cables, adapters, software package, and operator manual in the delivery scope.
- Optional interfaces available including Modbus RTU, Profibus-DPv1, RS232, RS485, and relay boards.
Product Description

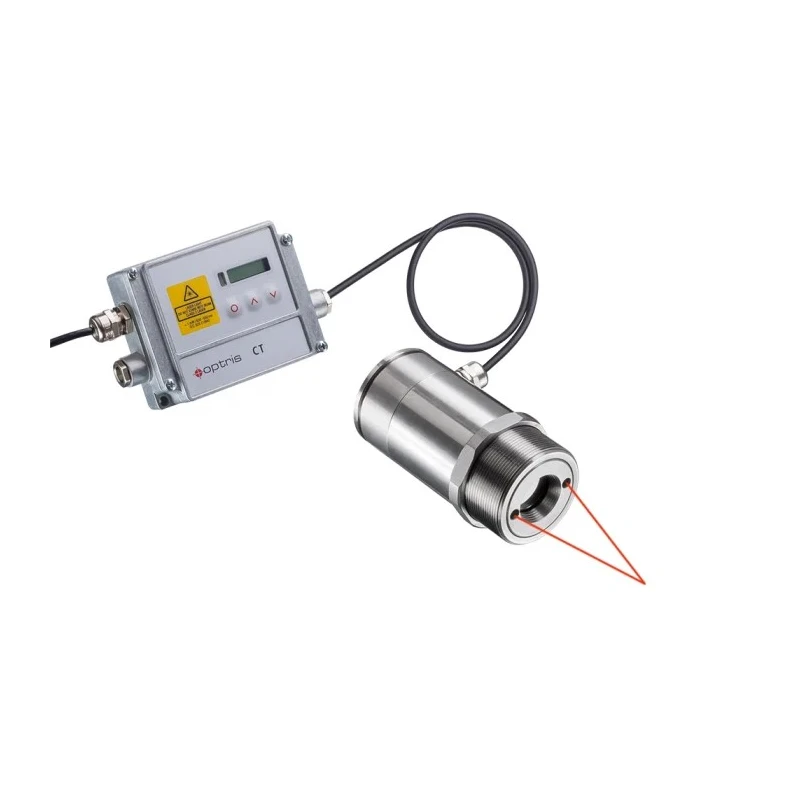

Optris CATCTLLTSFK Two Point Laser Infrared Temperature Sensor is a precision instrument designed for industrial temperature measurement with a remarkable range of -50 °C to 975 °C and optical resolution of 75:1. The sensor features a premium-quality stainless steel measuring head equipped with a double laser sighting system that allows for exact measurement spot indication regardless of distance.

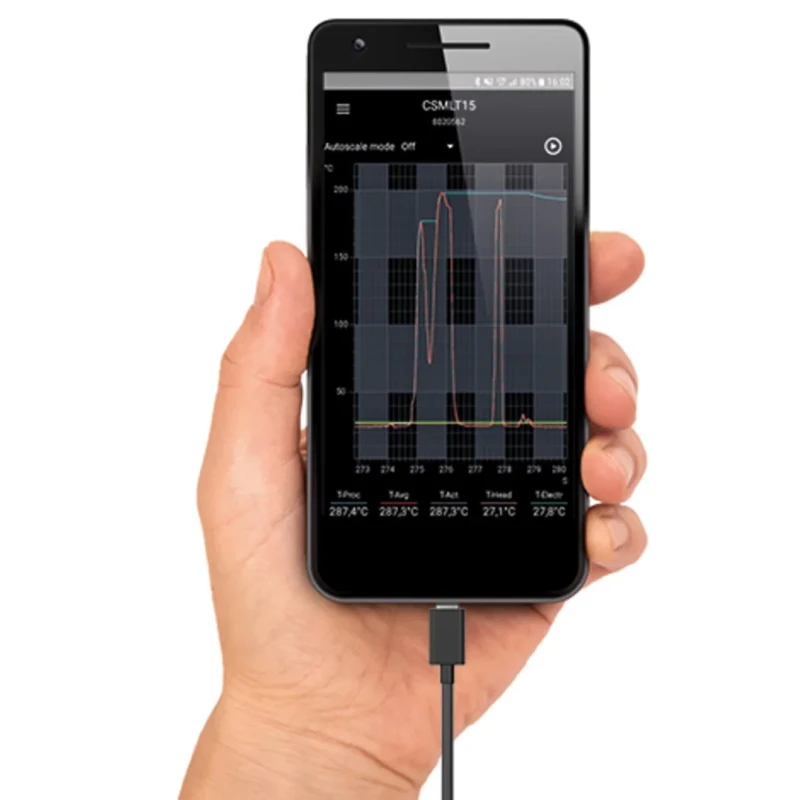

The sensor electronics are housed separately in a configurable box, offering flexibility through selectable analog outputs and multiple digital communication options, enabling integration with various automation systems. The device supports configuration via an intuitive IR mobile App available for Android devices, as well as a Windows-based software suite for desktop control and data analysis.
With an ambient operating temperature up to 85 °C and an accuracy of ±1 %, this sensor ensures precise temperature readings in challenging industrial environments. It adopts an adjustable emissivity setting to accommodate different material surfaces, enhancing measurement reliability.

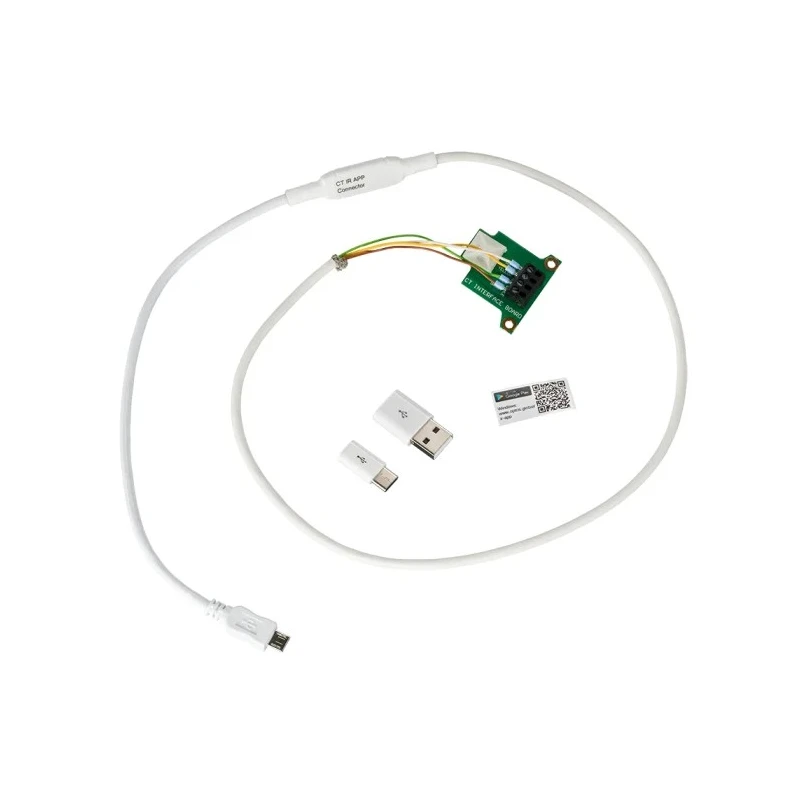

The response time of 0.12 seconds (90 %) makes it suitable for processes requiring rapid temperature monitoring and control. The hardware includes a mounting bracket and nut, a 3-meter head cable, and USB cables with adapters for USB-C and USB-A connections, ensuring straightforward installation and connectivity.
The delivery package consists of the CT laser pyrometer sensor, accessories including the mounting bracket and cables, software package Compact Connect, and an operators manual. Optional interface modules such as Modbus RTU, Profibus-DPv1, RS232, RS485, and relay boards extend the sensor's communication capabilities for industrial automation and process control applications.
Exact temperature measurement with 75:1 spot size ratio. Robust stainless steel sensing head with double laser sighting. Adjustable emissivity setting for precise measurements. Configurable electronics box with multiple output options.
Free software available for Android and Windows platforms. Optional digital interfaces for integration flexibility. Fast 0.12 seconds response time for dynamic processes. Comprehensive delivery scope with mounting and cables included.
This sensor is ideal for industrial, laboratory, manufacturing, HVAC, and quality control applications requiring non-contact temperature measurement with high accuracy and rapid response. Its durable stainless steel construction and versatile digital interfaces support deployment in harsh environments and advanced automation systems. Explore more temperature sensors and infrared sensor solutions at EnvMart.
