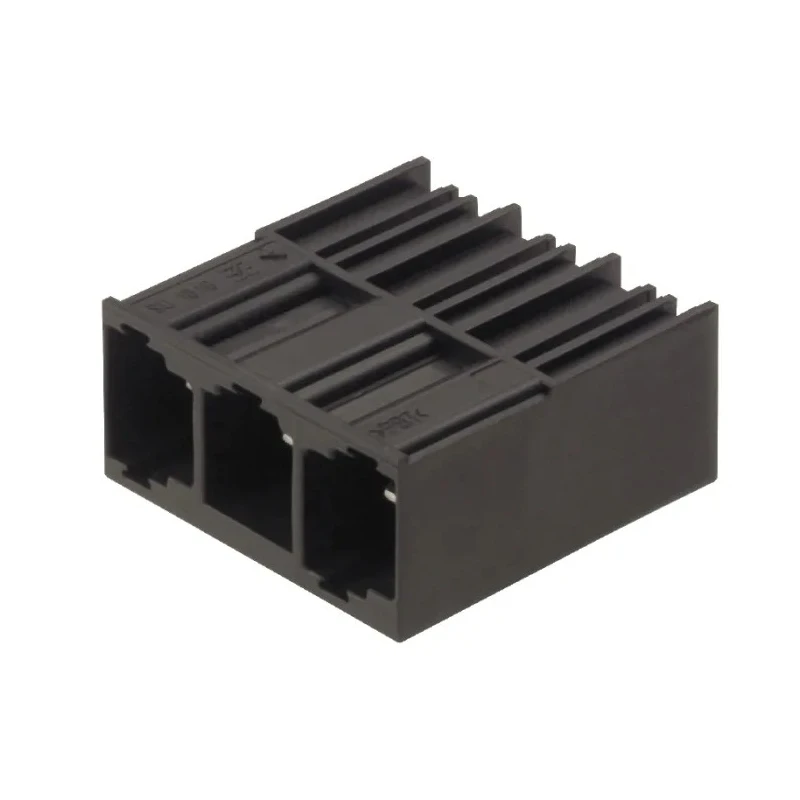

Weidmüller BU/SU 10.16HP Series High-Current 5-Contact PCB Connector 10.16 mm Pitch 1 Row 1813360000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 1kV |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 90° |
| Current | 60A |
| Length | 50.8mm |
| Depth | 32mm |
| Width | 13.16mm |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | BU/SU 10.16HP |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Standards/Approvals | IEC 61984, RoHS, UL 1059, IEC 60664-1 |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- This connector supports a current of 60A, suitable for high power applications.
- It features a 10.16 mm pitch with one row of 5 contacts ensuring reliable connections.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- The connector is black colored with a 90° orientation, optimized for easy soldering.
- Rated for voltage up to 1 kV complying with IEC 61984, RoHS, UL 1059, and IEC 60664-1 standards.
- Compact dimensions of 50.8 mm length, 13.16 mm width, and 32 mm depth.
- Designed with patented flange for fast locking without tools avoiding incorrect connections.
- Ideal for industrial electronics requiring robust, vibration-resistant PCB connectors.
Product Description
Weidmüller 1813360000 PCB Connector from the BU/SU 10.16HP Series is a high-current, rugged male connector featuring 5 contacts arranged in a single row with a pitch of 10.16 mm. Designed specifically for printed circuit board (PCB) applications, it offers a compact and reliable connection solution capable of handling currents up to 60A at voltages up to 1 kV.
The black housing is manufactured from fibreglass reinforced polybutylene terephthalate, providing excellent mechanical strength and thermal stability. The connector’s 90° orientation and pin length of 3.5 mm are optimized for through-hole technology (THT) soldering processes, ensuring dependable solder joint integrity and ease of assembly.
Featuring a patented flange mechanism, this connector allows fast locking without the need for tools, reducing assembly time and preventing incorrect mating. The connector also benefits from unique coding diversity to eliminate mismating and enhance connection reliability under vibration and other industrial stresses.
Certified to multiple standards including IEC 61984, UL 1059, and IEC 60664-1, this Weidmüller connector is compliant with RoHS and suitable for demanding industrial, manufacturing, electronic assembly, and power distribution applications.
Its compact overall dimensions (50.8 mm length, 13.16 mm width, and 32 mm depth) enable efficient PCB layout while maintaining high current-carrying capacity. Reliable 5-contact male PCB connector with 10.16 mm pitch and single row configuration.
Robust fibreglass reinforced polybutylene terephthalate housing. Fast locking patented flange system for secure connections without tools. Optimized for 90° orientation and wave soldering suitable pin length. Compliance with IEC 61984, UL 1059, IEC 60664-1 and RoHS directives.
Perfect for use in industrial electronics, power connectors, and manufacturing equipment. Manufactured in Czech Republic ensuring quality standards adherence. Explore a wide selection of PCB Connectors in the Electronics Components category on EnvMart for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 60A, making it suitable for high power applications.
It is rated for voltages up to 1 kV, ensuring compatibility with various industrial applications.
The connector has compact dimensions of 50.8 mm in length, 13.16 mm in width, and 32 mm in depth.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing mechanical strength and thermal stability.
This unit features 5 contacts arranged in a single row, designed for reliable connections.
The pitch of this connector is 10.16 mm, which is standard for many PCB applications.
It has a 90° orientation, optimized for through-hole technology soldering processes.
It complies with IEC 61984, UL 1059, IEC 60664-1 standards, and is RoHS compliant.
This connector uses a solder connection method, suitable for PCB applications.
The patented flange mechanism allows for fast locking without tools, reducing assembly time and preventing incorrect mating.
It is manufactured in the Czech Republic, ensuring adherence to quality standards.
This model is ideal for industrial electronics, power connectors, and manufacturing equipment.
