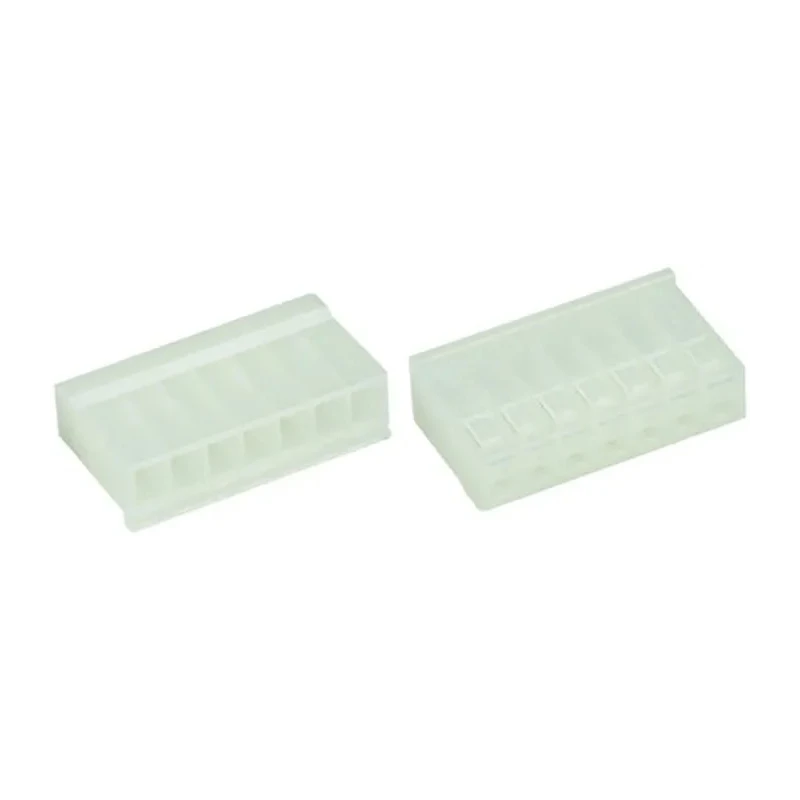

Molex SPOX Female Connector Housing 3.96 mm Pitch 7 Way 1 Row Straight 09-50-1071

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Female Connector Housing 3.96 mm Pitch 7 Way 1 Row Straight 09-50-1071

Name: Molex SPOX Female Connector Housing 3.96 mm Pitch 7 Way 1 Row Straight 09-50-1071
Brand: Molex
SKU: 101036
Price: 0.69 USD
Availability: InStock



Category PCB Connector & Wire Housing Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Orientation	Straight
Length	28.86mm
Width	8.85mm
Mount Type	Cable
Housing Material	Nylon
Series	SPOX
Number of Rows	1
Pitch	3.96mm
For Use With	SPOX Connector
Number of Contacts	7
Connector Gender	Female

Key Features

Constructed from durable nylon housing material ensuring insulation and structural integrity.
Features a 7 contact number arrangement, suitable for precise electronic connectivity.
Mates with 5273 Series headers and uses 5194 Series terminals for compatibility.
Orientation is straight to aid straightforward cable assembly and routing.
Designed for use with SPOX connectors, enhancing modular electronic system setups.

Product Description

Molex 09-50-1071 is a female connector housing engineered for cable mount applications within the SPOX series. It features a 3.96 mm pitch and provides 7 contact positions arranged in a single row straight configuration, measuring 28.86 mm in length and 8.85 mm in width.

The housing material is nylon, selected for robust insulation properties and mechanical durability, making it suitable for use in various industrial, electronic, and manufacturing settings.

The SPOX range incorporates a 'spring box' terminal design that ensures reliable multiple points of contact, protecting the mating interface and preventing wire handling damage such as fish-hooking.

This connector is compatible with 5273 Series headers and utilizes 5194 Series terminals, allowing interchangeability within the Molex connector ecosystem for streamlined assembly and maintenance.

Typical applications include PCB wiring, electronic device assembly, and industrial automation where secure, precise electrical connections are required. Originating from China, this new-condition connector housing meets the needs of engineers and technicians seeking dependable wire housing solutions in their projects.

Constructed with nylon housing for electrical insulation and strength. 7 contacts arranged in one row for effective circuit connection. 3.96 mm pitch spacing facilitates high-density connectivity. Cable mount type suited for flexible wiring harnesses.

Straight orientation supports ease of installation and wire management. Pairs with Molex SPOX connectors enhancing connectivity options. Ideal for electronic components assembly and industrial applications. Explore more connector housings and PCB connectors in EnvMart’s Electronics Components category to find complete wiring solutions.

Explore more products in our PCB Connector & Wire Housing category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pitch of the Molex SPOX Female Connector Housing is 3.96 mm.

This model features 7 contact positions arranged in a single row.

The connector housing measures 28.86 mm in length and 8.85 mm in width.

The housing is constructed from nylon, which provides electrical insulation and mechanical durability.

It is compatible with 5273 Series headers, allowing for seamless integration within the Molex ecosystem.

This model uses a cable mount type, making it suitable for flexible wiring harnesses.

The orientation of this connector housing is straight, which aids in straightforward cable assembly and routing.

It is designed for cable mount applications within the SPOX series, typically used in PCB wiring and electronic device assembly.

This connector housing has 1 row for its contact arrangement.

This housing is designed for use with Molex SPOX connectors, enhancing modular electronic system setups.

The country of origin for this connector housing is China.

It is suitable for applications in industrial automation, PCB wiring, and electronic device assembly where secure electrical connections are required.
