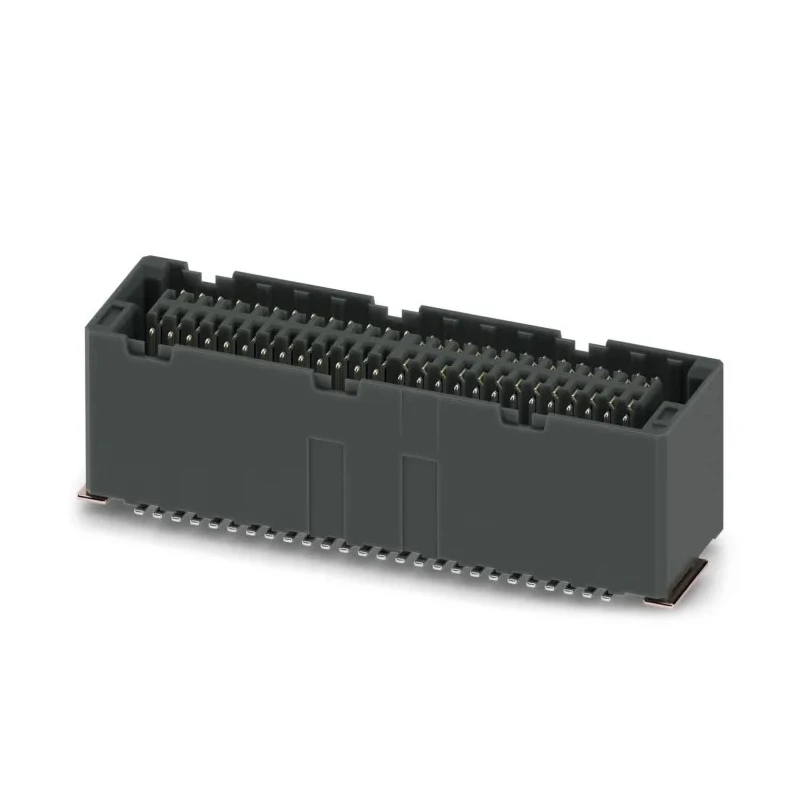

Phoenix Contact FP Series PCB Connector Kit 52-Position SMD Female Connector 1.7 A, 500 V AC 1061585
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 1061585 |
| Mounting Type | SMD soldering |
| Series | FP |
| Nominal Current | 1.7 A |
| Test voltage | 500 V AC |
| Pitch | 0.8 mm |
| Standards/Approvals | EAC, RoHS, cULus |
| Housing Colour | Black |
Key Features
- Designed for surface-mount device soldering ensuring secure PCB mounting.
- Nominal current rating of 1.7 A suitable for moderate current applications.
- Rated for test voltage of 500 V AC providing reliable insulation performance.
- Gold-plated Cu alloy contacts for stable, long-term signal transmission quality.
- Double-sided ScaleX contact system ensures robust mechanical and electrical connections.
- Black housing color providing standard visual identification.
- FP series connector with fine-pitch 0.8 mm spacing for compact PCB layouts.
- Compliant with EAC, RoHS, and cULus standards for global regulatory conformity.
Product Description
The Phoenix Contact 1061585 PCB Connector Kit is engineered for high-quality electronic assemblies featuring the FP series female connectors. With a total of 52 positions and a fine-pitch of 0.8 mm, this kit is ideal for compact printed circuit board designs in industrial and commercial applications.
Designed for surface-mount device (SMD) soldering, these connectors provide secure and reliable mounting on PCBs. The contact material composed of copper alloy with gold plating ensures excellent conductivity and long-term signal integrity, even under demanding environmental conditions.
With a nominal current rating of 1.7 A and a test voltage withstand of 500 V AC, these connectors support moderate electrical loads typical in control systems, instrumentation, and communication devices.
The innovative double-sided ScaleX contact technology offers high tolerance compensation and robust mechanical and electrical contact stability, significantly reducing connection failures.
These connectors come with a black housing, aiding clear visual differentiation in multi-connector environments.
Compliance with EAC, RoHS, and cULus certifications ensures the connectors meet international safety and environmental standards, broadening usage across different geographical markets.
Manufactured in Germany, this PCB Connector Kit guarantees industrial-grade performance suitable for applications in electronic components, power distribution, automation control, and laboratory equipment.
Designed for SMD soldering ensuring secure PCB integration. Current rating of 1.7 A and test voltage of 500 V AC. Gold-plated Cu alloy contacts for superior conductivity. Double-sided ScaleX contact system for robust connections.
Fine-pitch 0.8 mm spacing for dense PCB layouts. Black housing providing clear identification. Complies with EAC, RoHS, and cULus standards. Manufactured in Germany for industrial quality.
Explore more high-quality PCB connector solutions with Phoenix Contact and others at EnvMart's Electronics Components category for your industrial, commercial, or laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this connector kit is 1.7 A, making it suitable for moderate current applications.
These connectors are rated for a test voltage of 500 V AC, providing reliable insulation performance.
This model is designed for surface-mount device (SMD) soldering, ensuring secure integration on printed circuit boards.
The connectors feature a fine-pitch of 0.8 mm, ideal for compact PCB layouts.
The contacts are made from copper alloy with gold plating, which ensures excellent conductivity and long-term signal integrity.
This kit complies with EAC, RoHS, and cULus standards, ensuring it meets international safety and environmental regulations.
The connector kit is manufactured in Germany, ensuring industrial-grade performance.
The connectors come with a black housing, which aids in clear visual identification in multi-connector environments.
This model is suitable for applications in electronic components, power distribution, automation control, and laboratory equipment.
The double-sided ScaleX contact system offers high tolerance compensation and robust mechanical and electrical contact stability, reducing connection failures.
This PCB connector kit features a total of 52 positions, allowing for versatile connectivity options.
Gold-plated contacts provide stable, long-term signal transmission quality, which is essential for maintaining connectivity in demanding environments.
