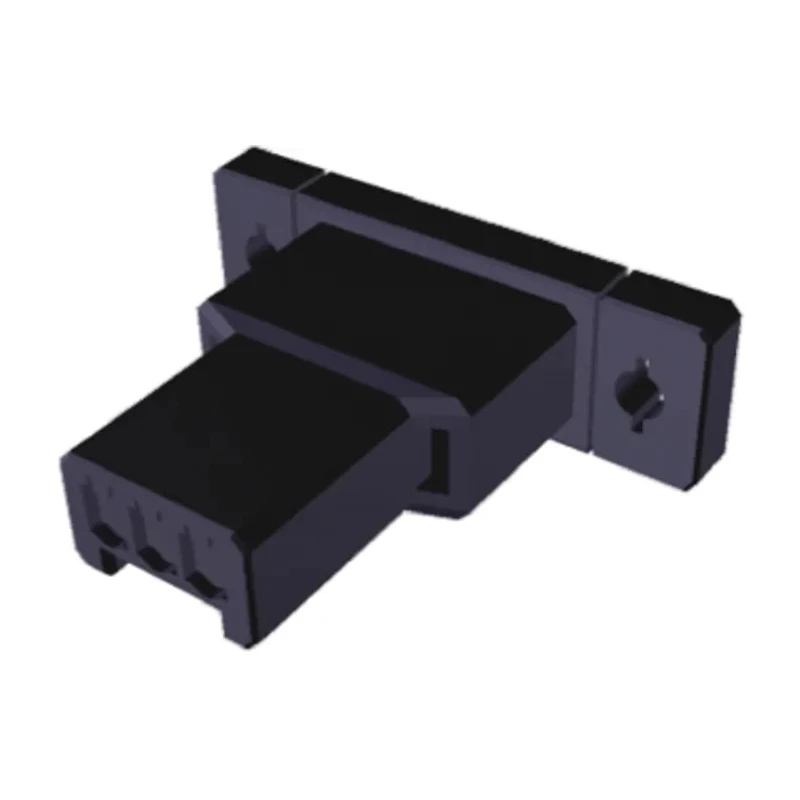

TE Connectivity Dynamic 3000 Male Connector Housing 5.08 mm Pitch 4 Way 1 Row Straight 1-179553-4

TE Connectivity 1-179553-4 Dynamic 3000 male connector housing presents a high-quality cable mount solution with a 5.08 mm pitch and 4 way, single-row straight configuration. It is constructed from robust polyamide material offering excellent insulation and durability for both signal and power circuit applications. The compact, vibration resistant design ensures reliability even in demanding environments.

This connector housing incorporates locking lances that securely retain contacts and prevent damage during mating. Keying ribs built into the housing prevent mismating and mechanical movement, enhancing connection stability. Locking levers on either side deliver positive mating assurance along with an audible click, while a fitting confirmation line provides an additional visual cue to confirm proper assembly.

Measuring 46.99 mm length and 12.7 mm width, this housing is optimized for space-constrained applications and features a straight orientation for cable mount installations. When loaded with contacts, it supports a maximum current capacity of 15A per contact position, making it suitable for power supply and signal transmission needs.

Manufactured in Japan, the product maintains high standards for performance and durability. Crimp receptacle and tab contacts must be ordered separately. This Dynamic 3000 series connector housing is ideal for industrial electronics, automotive, manufacturing, and power equipment applications where secure and reliable electrical connections are critical.

Compact and vibration resistant design suitable for signal and power circuits. Locking lances provide secure contact retention, preventing displacement during mating. Keying ribs prevent mismating and ensure reliable connector alignment.

Housing is made of durable polyamide material providing high voltage capacity. Locking levers on both sides ensure secure mating with audible click indication. Fitting confirmation line offers visual assurance of proper connection.

Designed for cable mount type with straight orientation. Supports up to 15A maximum current per contact position when loaded. Compact size with length 46.99 mm and width 12.7 mm facilitates space saving in assemblies. Manufactured in Japan ensuring high quality and reliability.

Explore the full range of PCB connector and wire housing solutions from TE Connectivity at EnvMart for enhanced industrial and electronic component needs.
