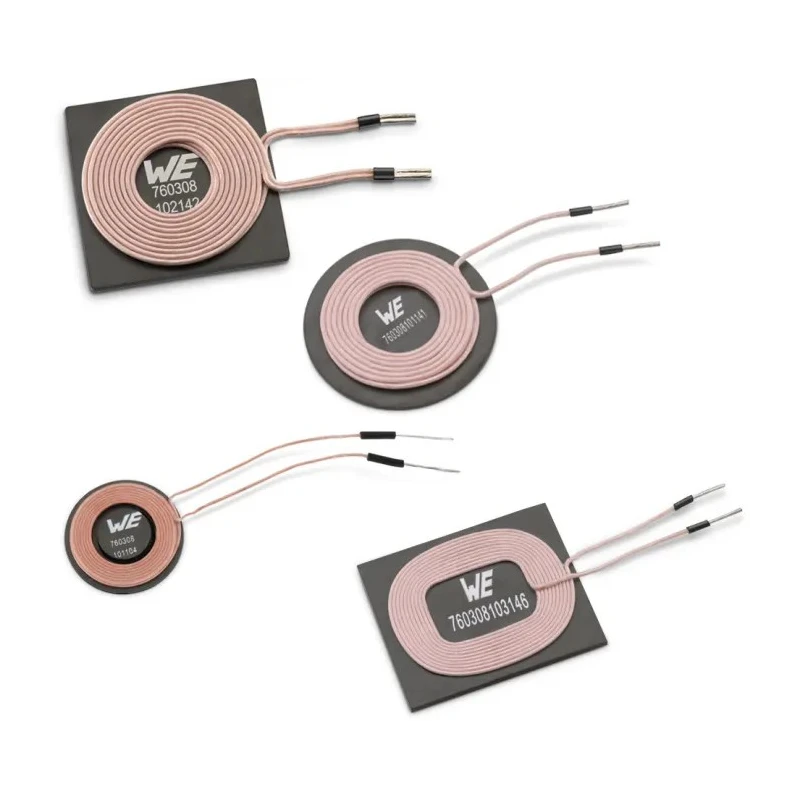

Wurth Elektronik WE-WPCC Wireless Charging Coil Transmitter 5.5A, 24μH, 50mm Ferrite Core 760308101410

Wurth Elektronik 760308101410 wireless charging coil transmitter is engineered for advanced inductive power supply applications. As part of the WE-WPCC Series, this coil combines high-performance ferrite core material with litz wire winding to achieve a superior quality factor, making it ideal for portable electronic devices requiring efficient wireless charging features.

This transmitter coil provides a maximum DC current of 5.5A and an inductance of 24μH. The design incorporates radial mount technology and a robust ferrite core to minimize energy losses and maximize performance. High permeability magnetic shielding is included to protect sensitive components by canceling unintended charging flux.

The 50mm diameter allows for stable device integration across a variety of applications, such as clean rooms, medical facilities, and industrial environments, where physical connectors might pose contamination risks or reduce reliability. The coil is compatible with mQi standards and supports up to 15W of power transfer, with capabilities beyond the standard up to 300W in specialized implementations.

Operating within a temperature range of -20°C to 105°C, this component offers consistent performance under wide environmental conditions. It features a self-resonant frequency of 6MHz and a DC resistance of just 100mΩ, ensuring minimal heat buildup and maximum efficiency. The minimum quality factor of 170 reflects superior energy storage characteristics for fast, reliable charging cycles.

Designed for industrial and laboratory wireless charging solutions. Reliable performance makes it suitable for deployment in medical, mining, and cleanroom environments. Radial termination style allows for secure and straightforward assembly.

RoHS compliant, meeting international environmental standards. Ferrite core optimizes the electromagnetic transfer properties for efficient inductive coupling.

This component is ideal for manufacturers and engineers building next-generation wireless charging systems, ensuring safe, efficient energy transfer without exposing susceptible equipment to physical connector wear or contamination. Explore more wireless charging coils and Wurth Elektronik solutions in the Electric Coil category at EnvMart.
