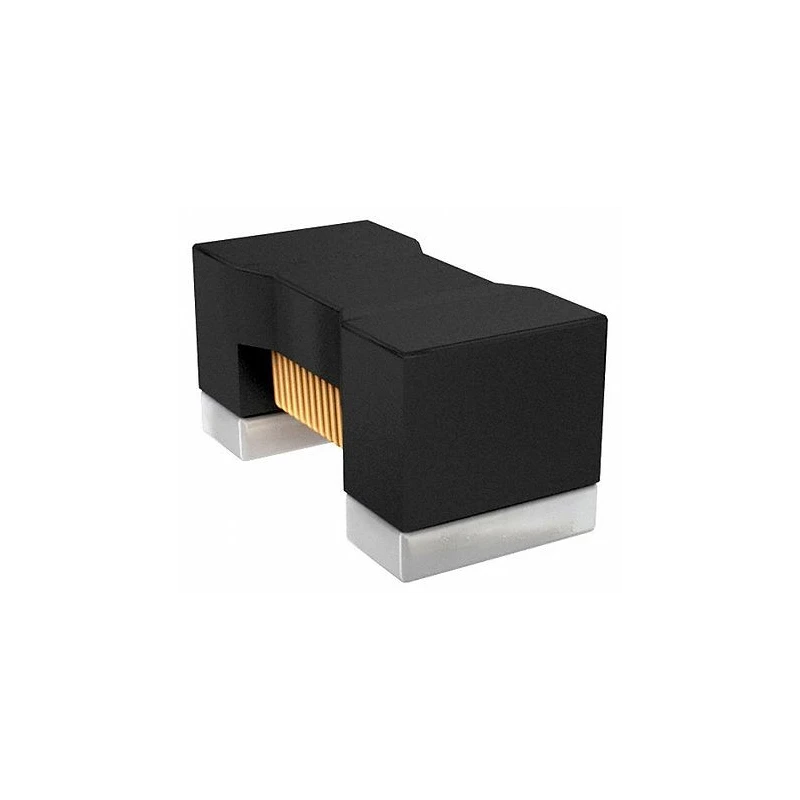

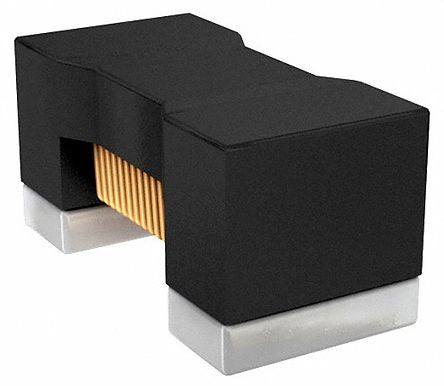

Murata LQW18AN27NG10D 0603 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 27 nH ±2% 590 mA Idc

Murata LQW18AN27NG10D is a high-quality 0603 unshielded wirewound surface mount inductor, offering a 27 nH inductance value with ±2% precision and a ferrite core. Designed for reliability and performance, this SMD inductor delivers a maximum DC current capability of 590 mA and a DC resistance as low as 116 mΩ, making it highly suitable for demanding high-frequency circuit applications such as wireless telecommunications, Bluetooth, GSM, and WLAN systems.

The wirewound construction ensures an excellent resonance frequency of up to 2.8 GHz, while the ferrite core enables effective signal filtering and minimizes EMI, even in densely populated PCB layouts. This component comes in the industry-standard 0603 package, providing compact dimensions for modern electronics where space-saving is critical. The terminations are ready for automated soldering and are compatible with paper tape packaging, streamlining component handling during large-scale manufacturing.

With an operating temperature range of -55°C to 125°C and compliance with RoHS standards, the LQW18AN27NG10D offers both reliability and environmental responsibility. The two-pin configuration, unshielded design, and precision tolerance make it a top choice for engineers designing VHF/UHF circuits, high-speed communication devices, and advanced consumer electronics.

This inductor is part of Murata's LQW series, distinguished by its low tolerance and high Q factor (minimum quality factor of 42), ensuring minimal signal loss and robust performance. Models bearing the '10D' suffix, including this unit, exhibit particularly low DC resistance values, contributing to efficient power management in compact wireless applications.

Suitable applications include wireless modules, base station transceivers, mobile communications, IoT devices, and embedded hardware requiring reliable filtering and energy storage. The moulded form factor further secures the winding for vibration resistance and stable operation in various environments, including industrial and commercial installations.

Offers a 27 nH inductance for precise signal processing. Ferrite core improves RF filtering and minimizes magnetic losses. Accepts up to 590 mA DC current, supporting wireless communication modules. Wirewound construction enhances resonance frequency and Q factor.

±2% tolerance and low DC resistance ensure accuracy and efficiency. Compact 0603 package with solder termination for automated assembly. Unshielded, two-pin design suitable for high-density PCB layouts. RoHS compliant with broad operating temperature (-55°C to 125°C).

Optimized for telecommunications, Bluetooth, GSM, and WLAN devices.
