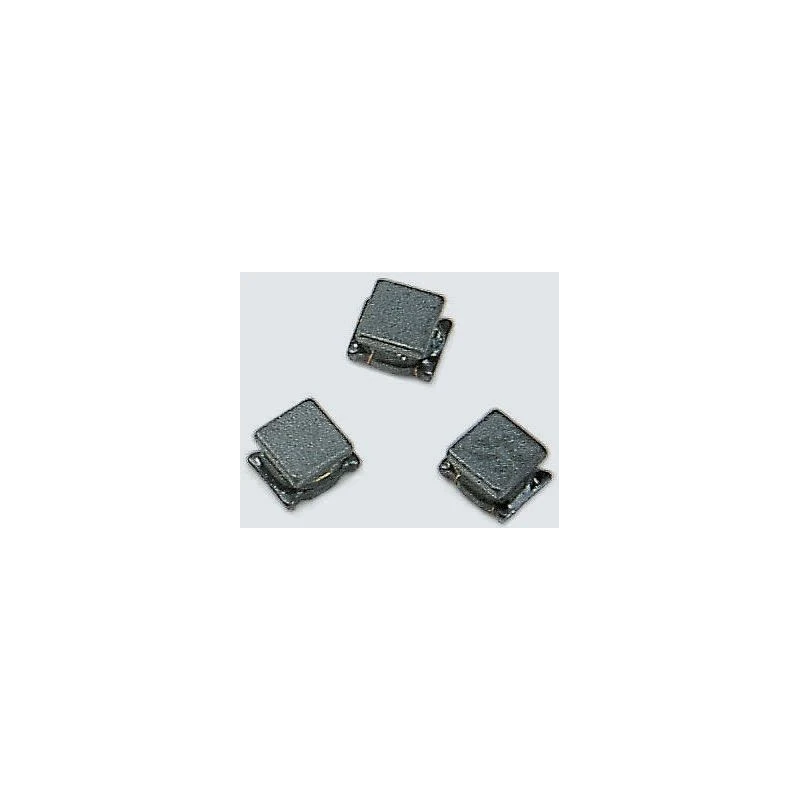

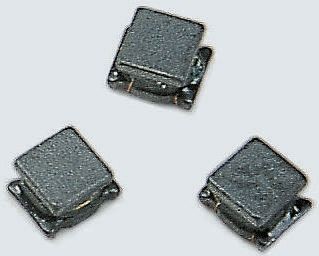

Murata LQH Series Wirewound Surface Mount Inductor 1210, 120 μH ±5 %, 75 mA, Ferrite Core LQH32MN121J23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN121J23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 120μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 111-068Brand: MurataManufacturers Part No.: LQH32MN121J23L |
| Maximum DC Current | 75mA |
| Pin Count | 2 |
| Maximum DC Resistance | 8Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 7.5MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Inductance rating of 120 μH with ±5 % tolerance.
- Maximum DC current supported is 75 mA.
- Unshielded wirewound construction with ferrite core for optimal performance.
- Compact 1210 SMD package enables versatile PCB mounting.
- Operating temperature range from -40°C to 85°C.
- Maximum DC resistance of 8 Ω for low power loss.
- RoHS compliant for universal application.
Product Description
The Murata LQH32MN121J23L wirewound surface mount inductor is part of the LQH Series, known for high reliability in demanding electronic applications. This inductor is specifically engineered to provide a consistent inductance value of 120 μH with a ±5 % tolerance, making it suitable for filter circuits, energy storage, and signal processing in modern electronics.
Built with a ferrite core, the LQH32MN121J23L enhances magnetic performance, reducing losses and supporting efficient operation in mobile phones, video, communications, and audio equipment. The unshielded wirewound construction offers flexibility in design and contributes to the component’s compact SMD footprint.

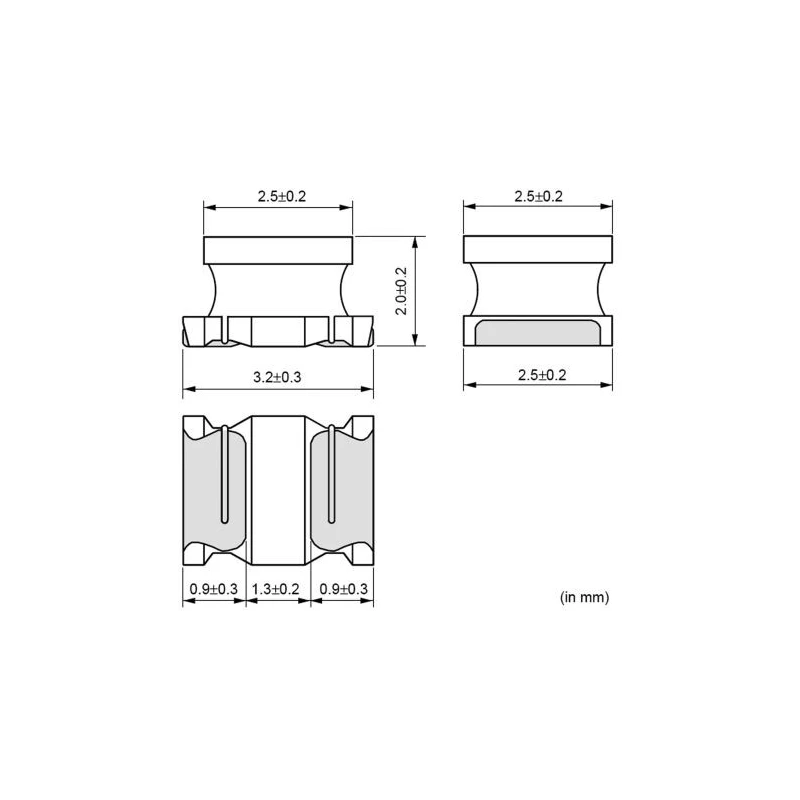

With a maximum DC current of 75 mA and a low maximum DC resistance of 8 Ω, this inductor helps minimize power dissipation while supporting robust circuit functionality. The 1210 package (3.2 mm × 2.5 mm × 2 mm) allows easy integration into PCBs with limited space requirements.
Terminated with solderable ends, the device ensures straightforward installation on surface mount boards. The product is RoHS compliant, making it ideal for a wide range of industrial and commercial applications.
The LQH32MN121J23L is moulded for resilience and has a maximum self-resonant frequency of 7.5 MHz. Its minimum quality factor of 40 enables effective signal filtering in high-frequency circuits. Designed with durability in mind, it boasts an operating temperature range from -40°C up to 85°C.
Common applications include circuit blocks in wireless communications, display systems, and consumer electronics requiring precision inductance and low resistance. Explore more Murata surface mount inductors and passive components within the Electronics & Electricals category at EnvMart.
Explore more products in our Electric Coil category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 120 μH with a tolerance of ±5 %.
This model supports a maximum DC current of 75 mA.
The operating temperature range for this inductor is from -40°C to 85°C.
The maximum DC resistance is 8 Ω, which helps minimize power loss.
This inductor comes in a compact 1210 package, measuring 3.2 mm × 2.5 mm × 2 mm.
The LQH32MN121J23L features a ferrite core, which enhances its magnetic performance.
The maximum self-resonant frequency of this inductor is 7.5 MHz.
The minimum quality factor for this inductor is 40, enabling effective signal filtering.
It has an unshielded wirewound construction, which offers flexibility in design.
Yes, this inductor is RoHS compliant, making it suitable for various applications.
This model is terminated with solderable ends for straightforward installation on surface mount boards.
Common applications include circuit blocks in wireless communications, display systems, and consumer electronics.
