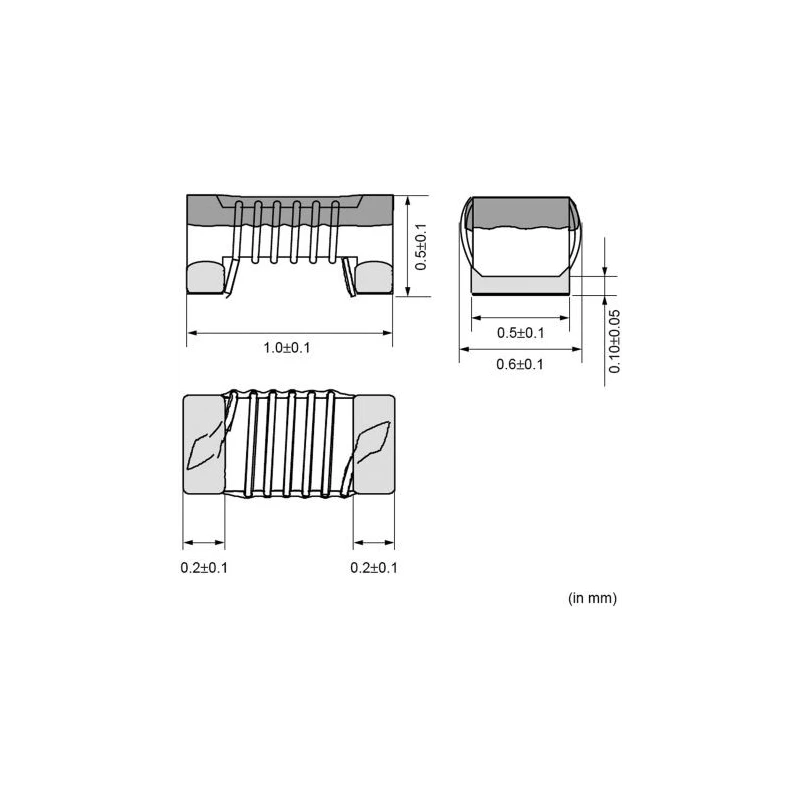

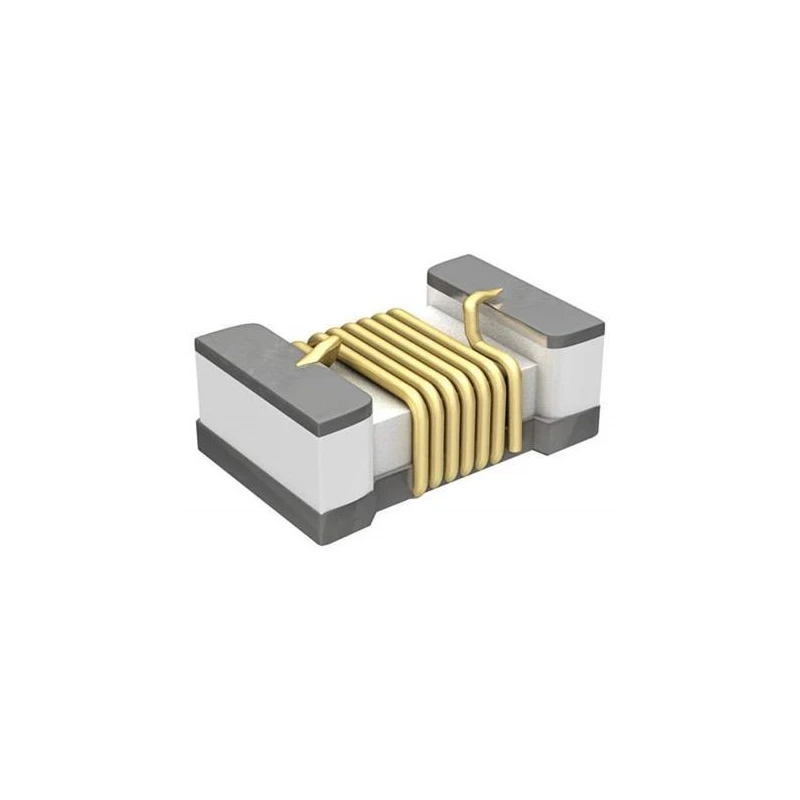

Murata Wirewound Surface Mount Inductor, 8.2 nH Inductance, 540 mA, Unshielded, Ferrite Core, 0402 Package LQW15AN8N2H00D

The Murata LQW15AN8N2H00D is a high-quality wirewound surface mount inductor specifically engineered for high-frequency applications requiring compact dimensions and robust current handling. Featuring a ferrite core, this component achieves efficient electromagnetic performance in its unshielded 0402 package.

Its inductance value of 8.2 nH, combined with a ±3% tolerance, provides stable and accurate response in VHF and UHF circuit applications, particularly for wireless telecommunications such as Bluetooth, GSM, and WLAN. The wirewound construction enables high resonance frequency and low tolerance, supporting circuits with precise signal requirements.

The maximum DC current rating of 540 mA allows the inductor to operate reliably under significant loads, while the core ferrite material minimizes losses and enhances Q factor for improved signal fidelity. The 0402 package ensures minimal footprint on the PCB, ideal for densely populated boards and miniaturized designs. With a maximum DC resistance of just 140 mΩ, the component helps keep voltage drop and power losses low.

Operating from -55°C to 125°C, the LQW15AN8N2H00D withstands harsh environmental conditions, making it suitable for industrial and commercial electronics, telecommunications modules, RF circuits, and other demanding applications. Its unshielded form facilitates integration into space-constrained layouts while maintaining performance.

Other features include solder termination, a pin count of 2, maximum self-resonant frequency of 5.5 GHz, and compliance with RoHS standards. This moulded inductor serves as a reliable passive component in advanced, modern electronic assemblies.
