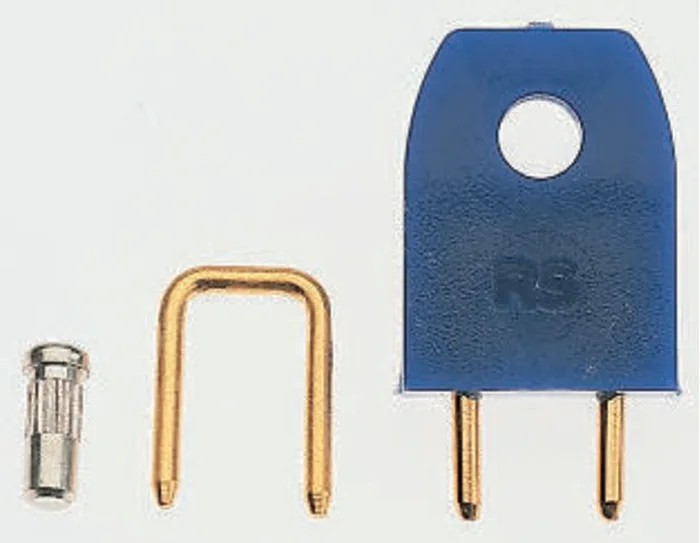

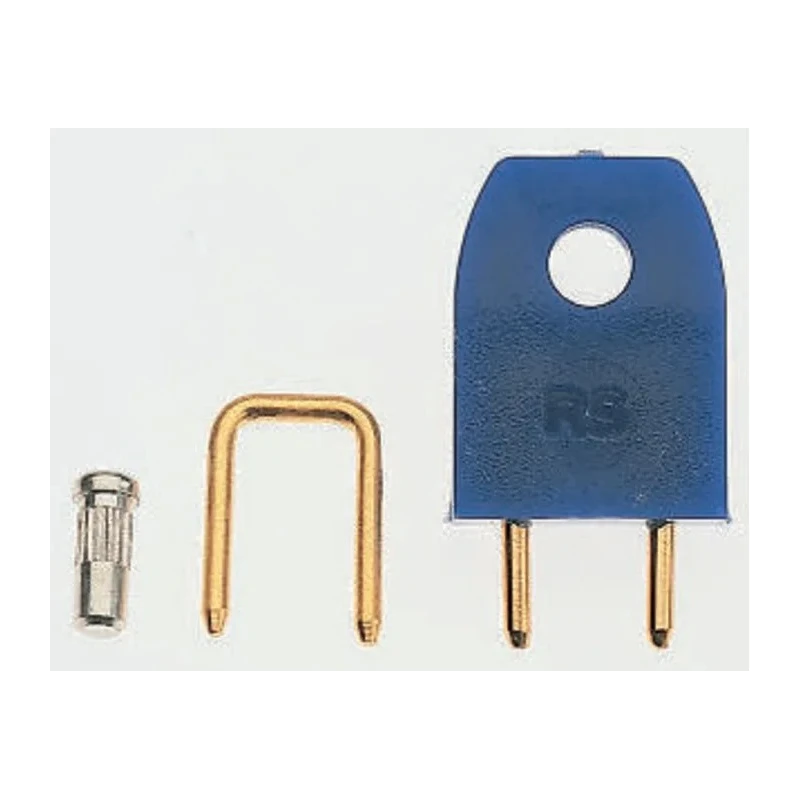

HARWIN Jumper Straight Male Uninsulated 2 Way 1 Row 5.08 mm Pitch D3080B-46

HARWIN D3080B-46 jumper is a straight male uninsulated connector with 2 contacts in a single row, spaced at a 5.08 mm pitch. It is manufactured with robust polybutylene terephthalate housing and brass contacts plated with tin to ensure reliable electrical conductivity. This jumper is ideal for use in PCB assemblies where bridging connections or shunting is required.

The jumper length and depth are both 9 mm, and the width is 6.35 mm, making it compact enough to fit standard PCB layouts. The straight orientation facilitates straightforward installation and wiring.

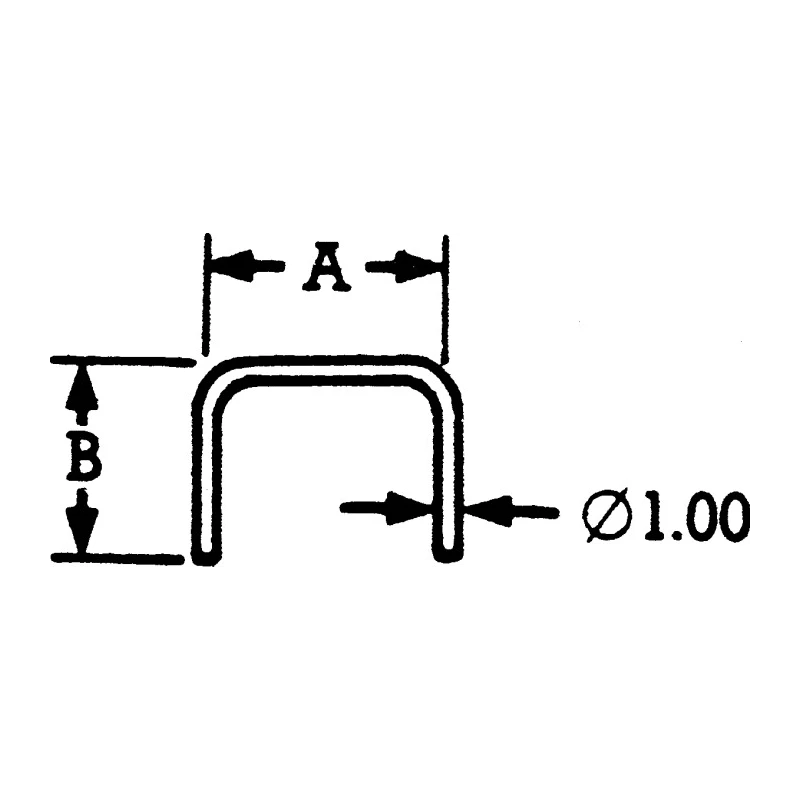

Rated for currents up to 10 amperes, this jumper can handle typical power distribution requirements within electronic devices. The uninsulated brass straps, with a diameter of 1 mm, are compatible with all types of 1 mm sockets and can also be soldered directly onto PCBs to form permanent electrical connections.

This product does not bear any specific standards or approvals but is built to industry-standard materials and design principles. Its male connector gender and single-row configuration make it suitable for flexible design integrations in electronic manufacturing, testing, and prototyping environments.

Applications include industrial electronic component assemblies, power connectors for equipment, laboratory PCB prototyping, and manufacturing of control systems. Its material composition ensures mechanical durability and electrical performance for critical industrial and electronic applications.

This jumper features 2 male contacts arranged in a single row. It has a pitch of 5.08 mm, suitable for standard PCB spacing. The contacts are made of brass with tin plating for durability and conductivity. Housing material is polybutylene terephthalate providing good insulation and mechanical strength.

The jumper length and depth measure 9 mm, width is 6.35 mm, enabling compact design integration. Orientation is straight, allowing easy linkage between PCB points or connection to 1 mm sockets. Rated for current up to 10 A, meeting electrical load requirements in various electronics systems.

Uninsulated design supports soldering directly onto PCBs for permanent connections. Explore our extensive range of jumpers and shunts for precise and reliable electronic connections on EnvMart.
